High Density Polyethylene HDPE Pipe for Drinking Water Supply

Short Description:

1. Size: DN20-1600mm HDPE Pipe for Water Supply.

2. Pressure :  SDR33- SDR7.4, PN4-PN25.

3. Material:   100% Virgin PE80, PE100, PE100-RC.

4. Standard: ISO 4427, EN 12201, ASTM F714,AS/NZS 4130, DIN 8074, GOST 18599, IPS.

5. Packing: 11.8m, or 5.8m/pcs for straight, 50-200m by coils for DN20-110mm.

6. Delivery: 3-15 days depending on the total quantity.

7. Inspection: Raw material inspection.Finished product inspection.Third party inspection on request.

8. Fittings: OD20-1600mm, SDR26-SDR7.4, Socket fusion, Butt fusion, Electrofusion, Fabricated, Machined, Compression fittings.


Product Detail

Specification

Application&Certifications

Product Tags

Production Information

CHUANGRONG and its affiliated companies specialize in the R&D, production, sale and installation of new-type plastic pipes and fittings. It owned five factories, one of the largest manufacturer and supplier of plastic pipes and fittings in China. Furthermore, the company owns more 100 sets pipe production lines that are advanced at domestic and abroad,200 sets of fitting production equipment. The production capacity reaches more than 100 thousand tons. Its main contain 6 systems of water, gas, dredging, mining, irrigation and electricity, more than 20 series and more than 7000 specifications.

High Density Polyethylene (HDPE) Drinking Water Pipe

Products Details

Company/Factory Strength

Name High Density Polyethylene (HDPE) Drinking Water Pipe   Production Capacity 100,000 Ton/Year
size DN20-1600mm  Sample Free sample available
Pressure   PN4- PN25, SDR33-SDR7.4   Delivery time 3-15 days, depending on the quantity
Standards ISO 4427, ASTM F714, EN 12201, AS/NZS 4130, DIN 8074, IPS   Test/inspection National standard laboratory, Pre-delivery inspection
Raw Material 100% Virgin l PE80, PE100,  PE100-RC  Certificates ISO9001, CE, WRAS, BV, SGS
Color Black with blue stripes, Blue or others colors Warranty 50 years with normal use
Packing 5.8m or 11.8m/length, 50-200m/roll, for DN20-110mm.   Quality QA & QC system, Ensure traceability of each process
Application

Drinking water, Fresh water, Drainage, Oil and Gas, Mining, Dredging, Marine, Irrigation, Industry, Chemical, Fire fighting...

Service R&D, production, sale and installation, after-sales service

Matching products: Butt fusion, Socket fusion, Electrofusion, Drainage, Fabricated, Machined fitting, Compression fittings, Plastic Welding machines and tools, etc.



Welcome to visit our factory or conduct a third-party audit.

Welcome to contact us for products details and professional service.

Please send email to:  chuangrong@cdchuangrong.com

Product Description

High Density Polyethylene (HDPE) piping systems are used all over the world for the supply and conveying of several kinds of media, including liquid, gas and powers as well as in mining and quarry applications.

High Density Polyethylene (HDPE) pipework systems have the main advantages over steel and ductile iron systems if lightness of weight and freedom from corrosion. The rapid growth in use of polyethylene is due in part to benefits over steel and iron systems, but possibly more to the development of several advanced and easy jointing techniques. Polyethylene has very good fatigue strength and special provision for surges frequently allowed when designing other thermoplastic pipework systems (as PVC) are not normally necessary.

High Density Polyethylene (HDPE) pipes are produced in size up to 2500mm in diameter, with nominal pressure rating PN4, PN6, PN10, up to PN25 (other pressure ratings also available). All pipes and fittings are manufactured in accordance with current EN12201, DIN 8074, ISO 4427/ 1167 and SASO Draft No.5208.

High Density Polyethylene (HDPE) piping system are used worldwide for conveying of water as well as for the transportation of hazardous fluids. It offers the following advantages to the customer:

Advantages:

Low specific Weight

Excellent weldability

Smooth inside surface, no deposits and no overgrowth

Due to less frictional resistance, less pressure drop compared to metals

Suitable for food and potable water

Complies with the food stuff regulations

Approved and registered for potable water supply

Laying speed ease joining and reliability



Resistance to:

Ultraviolet rays

Weathering

Chemicals

Heat aging

Abrasion

Rodents

Freezing

Microbes freezing

If you have any questions, you can feel free to contact us  in  anytime .

Welcome to contact us for products details and professional service.

Please send email to:  chuangrong@cdchuangrong.com  or Tel: + 86-28-84319855


  • Previous:
  • Next:

  • High Density Polyethylene HDPE Pipe  for Drinking Water Supply



    PE100
    0.4MPa
    0.5MPa
    0.6MPa
    0.8MPa
    1.0MPa
    1.25MPa
    1.6MPa
    2.0MPa
    2.5MPa
    Outside Diameter
    PN4
    PN5
    PN6
    PN8
    PN10
    PN12.5
    PN16
    PN20
    PN25
    SDR41
    SDR33
    SDR26
    SDR21
    SDR17
    SDR13.6
    SDR11
    SDR9
    SDR7.4
    Wall Thickness (en)
    20
    -
    -
    -
    -
    -
    -
    2.0
    2.3
    3.0
    25
    -
    -
    -
    -
    -
    2.0
    2.3
    3.0
    3.5
    32
    -
    -
    -
    -
    2.0
    2.4
    3.0
    3.6
    4.4
    40
    -
    -
    -
    2.0
    2.4
    3.0
    3.7
    4.5
    5.5
    50
    -
    -
    2.0
    2.4
    3.0
    3.7
    4.6
    5.6
    6.9
    63
    -
    -
    2.5
    3.0
    3.8
    4.7
    5.8
    7.1
    8.6
    75
    -
    -
    2.9
    3.6
    4.5
    5.6
    6.8
    8.4
    10.3
    90
    -
    -
    3.5
    4.3
    5.4
    6.7
    8.2
    10.1
    12.3
    110
    -
    -
    4.2
    5.3
    6.6
    8.1
    10.0
    12.3
    15.1
    125
    -
    -
    4.8
    6.0
    7.4
    9.2
    11.4
    14.0
    17.1
    140
    -
    -
    5.4
    6.7
    8.3
    10.3
    12.7
    15.7
    19.2
    160
    -
    -
    6.2
    7.7
    9.5
    11.8
    14.6
    17.9
    21.9
    180
    -
    -
    6.9
    8.6
    10.7
    13.3
    16.4
    20.1
    24.6
    200
    -
    -
    7.7
    9.6
    11.9
    14.7
    18.2
    22.4
    27.4
    225
    -
    -
    8.6
    10.8
    13.4
    16.6
    20.5
    25.2
    30.8
    250
    -
    -
    9.6
    11.9
    14.8
    18.4
    22.7
    27.9
    34.2
    280
    -
    -
    10.7
    13.4
    16.6
    20.6
    25.4
    31.3
    38.3
    315
    7.7
    9.7
    12.1
    15.0
    18.7
    23.2
    28.6
    35.2
    43.1
    355
    8.7
    10.9
    13.6
    16.9
    21.1
    26.1
    32.2
    39.7
    48.5
    400
    9.8
    12.3
    15.3
    19.1
    23.7
    29.4
    36.3
    44.7
    54.7
    450
    11.0
    13.8
    17.2
    21.5
    26.7
    33.1
    40.9
    50.3
    61.5
    500
    12.3
    15.3
    19.1
    23.9
    29.7
    36.8
    45.4
    55.8
    -
    560
    13.7
    17.2
    21.4
    26.7
    33.2
    41.2
    50.8
    62.5
    -
    630
    15.4
    19.3
    24.1
    30.0
    37.4
    46.3
    57.2
    70.3
    -
    710
    17.4
    21.8
    27.2
    33.9
    42.1
    52.2
    64.5
    79.3
    -
    800
    19.6
    24.5
    30.6
    38.1
    47.4
    58.8
    72.6
    89.3
    -
    900
    22.0
    27.6
    34.4
    42.9
    53.3
    66.2
    81.7
    -
    -
    1000
    24.5
    30.6
    38.2
    47.7
    59.3
    72.5
    90.2
    -
    -
    1200
    29.4
    36.7
    45.9
    57.2
    67.9
    88.2
    -
    -
    -
    1400
    34.3
    42.9
    53.5
    66.7
    82.4
    102.9
    -
    -
    -
    1600
    39.2
    49.0
    61.2
    76.2
    94.1
    117.6
    -
    -
    -



    If you have any questions, you can feel free to contact us  in  anytime .

    Welcome to contact us for products details and professional service.

    Please send email to:  chuangrong@cdchuangrong.com  or Tel: + 86-28-84319855



    HDPE pipes have been in existence sicne the mid 50’s . The experience shows tha HDPE pipes is solution to most pipe problems being recogized by clients and engineering consultants as the ideal pipe material for many pressure and non pressure applications from water and gas distrutionto gavity , sewers and surface water drainage for both new & rehabilitation projects.

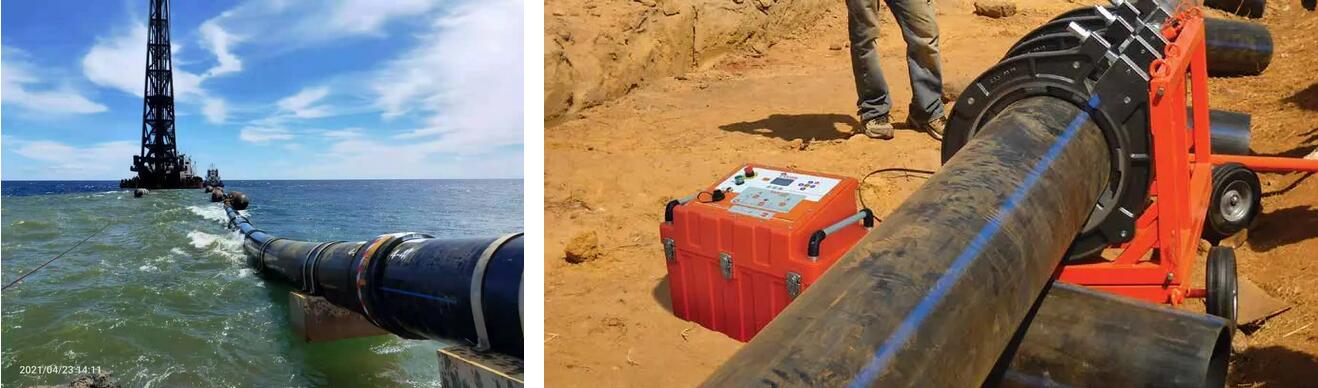

    Application field: Drinking water supply pipe for urban and rural area, liquid transmission pipe in chemical, chemical fiber, food, forestry and metallurgy industry, waste water drainage pipe, mining slurry transmission pipe for mining field.

    application

    Ha8a26647f6964c09a3dff9be0039c10fJ

    Socket Fusion Joint

    It heats the outer surface of the HDPE pipe and the inner surface of the HDPE pipe fittings through a hot-melt socket fusion machine, and then quickly attaches them after the surface is melted. Dn20mm-63mm HDPE pipe and HDPE fittings  can use socket fusion connection.







    1.Select the equipment

    2.Square and prepare the pipe ends

    3.Heat the parts

    4.Join the parts

    5.Allow to cool.

    Butt Fusion Joint

    Butt fusion is to use a butt fusion machine to heat the end of the pipe. After the end of the pipe is melted, it is quickly attached, maintaining a certain pressure, and then cooling to achieve the purpose of welding. HDPE pipes with a size larger than 63mm can be connected by the butt fusion process. This method is economical and reliable, and the tension and pressure of the joint have higher strength than the pipe itself.





    1.Securely fasten the components to be joined

    2.Face the pipe ends

    3.Align the pipe profile

    4.Melt the pipe interfaces

    5.Join the two profiles together

    6.Hold under pressure

    DELTA_160_M
    400_laterale

    Electro Fusion Joint

    Electrofusion connection is to insert the two pipe ends to be connected into the fitting with the electric heating wire embedded, pass the electric current through the electric heating wire, heat the pipe fittings to the melting temperature and fix it to the interface for cooling, then forming a tight and firm joint. It includes electrofusion socket connections and electrofusion saddle connections. The guarantee of the stable quality of the electrofusion connection mainly depends on strict compliance with the prescribed operating procedures and the quality of the electrofusion  fittings.



    1.Prepare the pipes

    2.Clamp the fittings and pipe(s)

    3.Apply the electric current

    4.Cold and remove the clamps



    Mechanical Joint

    A pipe fitting that mechanically connects polyethylene (PE) pipe to another section of polyethylene (PE) pipe or pipe accessories. It can be assembled at the construction site or pre-installed at the factory. The methods are threaded connection, PP quick connector connection, welding or flange (including PE flange) and metal parts to connect and assemble.

    A Chamfer the pipe with beveler tool

    B Slackend the ring nut with out removing from the body check that O-ring and clip ring are in proper position.

    C Insert the pipe end with out tightening the ring nut.Push the fitting until the pipe oversteps the O-ring and reaches the stop

    D Hand tighten the ring unt the tighten further with a strap/chain wrench.



                                                                                                      H894954f86b5b4773b7b9da88863d6d0fk

    Material & Test Properties

    20191113203550_66685
    SI  NO. PROPERTIES UNIT REQUIREMENT Experimental parameters Experimental Method
    1 Density Kg/m³ More than 930(base resin) 190℃,5KG D method of GB/T1033-1986,experimental preparation is according to GB/T1845.1-1989 : 3.3.1
    2 Melt Flow Rate (MFR) g/10min 0.2-1.4,and the maximum deviation should not exceed the nominal value of the mix 190℃,5kg GB/T3682-2000
    3 Thermal stability (oxidation induction time) min More than 20 200℃ GB/T17391-1998
    4 Volatile content Mg/kg Less than 350   Appendix C
    5 Moisture content b Mg/kg Less than 300   ASTMD4019:1994a
    6 Carbon black content c % 2.0-2.5   GB/T13021-1991
    7 Carbon black dispersion c grade Less than 3   GB/T18251-2000
    8 Pigment dispersion d grade Less than 3   GB/T18251-2000
    9 Resistant to gas components h More than 20 80℃,2Mpa(ring stress) Appendix D


    Bear fast crack propagation (RCP)

    10 Full size (FS) experiment :Dn ≥250mmor S4 experiment:pipe wall thickness ≥15mm MpaMpa Full size experiment’s critical pressure Pc.fs ≥ 1.5XMOP 0℃0℃ ISO13478:1997GB/T19280-2003
    11 Bear slow crack propagation (En≥5mm) h 165 80℃,0.8Mpa(experiment pressure) 80℃,0.92Mpa(experiment pressure) GB/T18476-2001
    a Non-black blends should meet the weatherability requirements in Table 6b Water content is measured when the measured volatiles do not meet the requirements. When arbitration, the water content should be the measurement results as a basis for judging c Only apply to black mix d Only apply to non-black mix e If the S4 test results do not meet the requirements, you can follow the full-size experiment to re-experiment to full-size experimental results as the final basis. f PE80, SDR11 experimental parameters g PE100, SDR11 experimental parameters

    Laboratory and Factory Inspection-Hydrostatic Test

    20191113210137_98404
    No
    Items
    HDPE Pipe
    1
    Molecular
    ≥300 000
    2
    Density
    0.960 g/cm3
    3
    Tensile breaking strength
    ≥28 Mpa
    4
    Longitudinal contraction rate of return
    ≤3%
    5
    Breaking elongation
    ≥500%
    6
    Resistant to corrosion
    good
    7
    Tensile strength
    ≥28Mpa
    8
    Static hydraulic strength
    1)20℃,cycle stress 12.4Mpa,100h,no break,no leakage
    2)80℃,cycle stress5.5Mpa,165h,no break,no leakage
    3)80℃,cycle stress5.0Mpa,1000h,no break,no leakage
    9
    MFR(190℃,5kg,)g/10min
    ≤25%
    10
    Oxidation induction time (200℃)min
    ≥20

    Production and Delivery

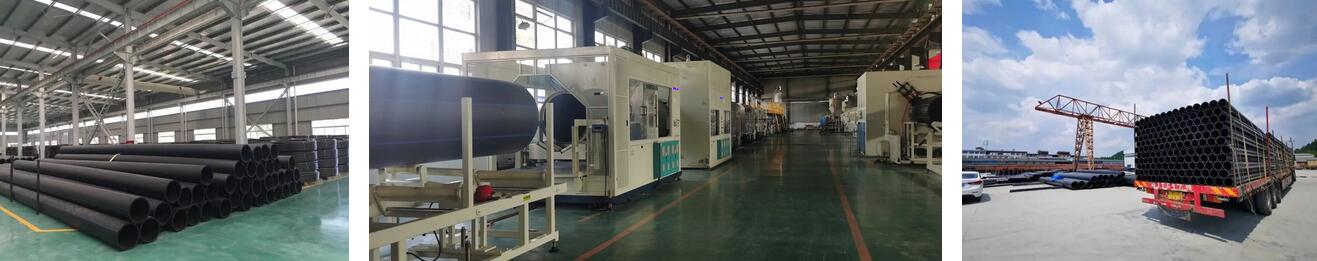

    CHUAGNRONG owns more 100 sets pipe production lines that are advanced at domestic and abroad,200 sets of fitting production equipment. The production capacity reaches more than 100 thousand tons. Its main contain 6 systems of water, gas, dredging, mining, irrigation and electricity, more than 20 series and more than 7000 specifications.

    Production and Delivery

     Certification

    We can supply ISO9001-2015,WRAS, BV ,SGS, CE etc certification. All kinds of products are regularly conducted pressure-tight blasting test,longitudinal shrinkage rate test, quick stress crack resistance test, tensile test and melt index test, so as to ensure the quality of products totally reach the relevant standards from raw materials to finished products.



    ISO CERTIFICATE
    CE PE PIPE & FITTING
