89mm100mm HDPE High Density Polyethylene Pipe Mpp pipe For Cable / Electricity Wire

Short Description:

1. Name: Orange plastic tube electrical ware protection pipe power cable conduit /MPP power pipe

2. Standard: ISO DL/T802.7-2010

3.  Connection: Thermofuse and electrofusion

4. Size:50-315mm


Product Detail

Product Tags

Detail Information

roduct Name: 100mm 89mm PE100 High Density Polyethylene Pipe For Cable Or Electricity Wire Application: For Cable Or Elctricity Wire
Material: 100% Virgin Material PE100 Specification: DN63mm DN200mm DN315 PN16 SDR11
Pipe Color: Black With Orange Stripe Pressure: PN6 PN8 PN10

Product Description

CHUANGRONG HDPE pipe For Cable or Electricity Wire are black corlor with orange or blue strip, Which depends on requirement of end user.

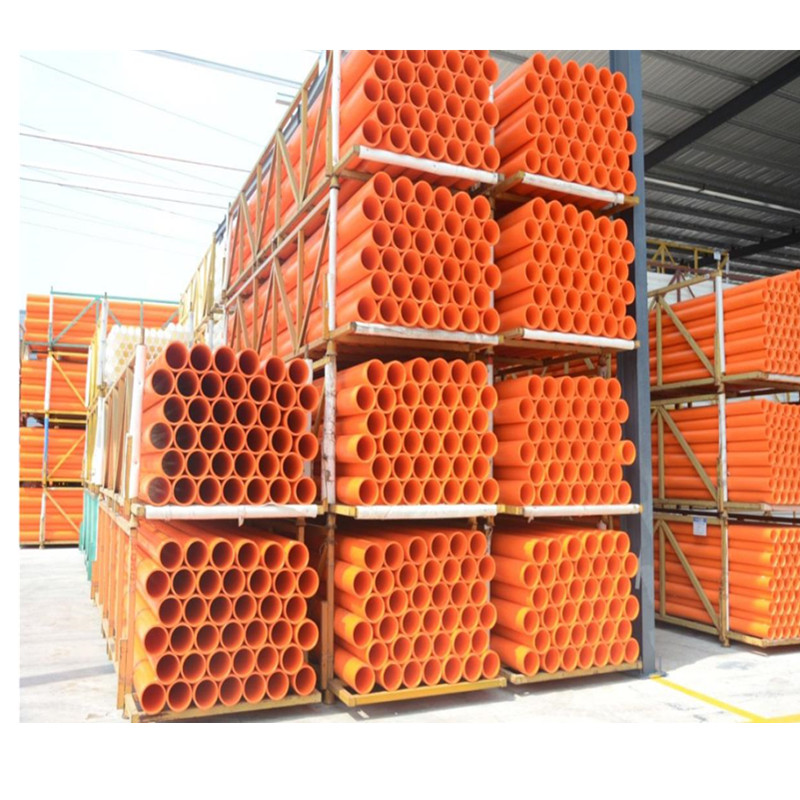

MPP (modified polypropylene) pipe for electrical communication cable protection is manufactured as the new type of plastic pipe adopting modified polypropylene as the main raw material and using a special formula and processing technology,with good features of high strength,temperature resistance,handling easily,convenient installation and cost saving.The modified polypropylene trenchless pipe is widely used as the protection pipe of electrical communication cable. Its characteristics is more obvious as a towing pipe. It conforms to the development requirements of modern cities and is suitable for buried depth of 2~18m.

Physical properties index:

Item
Index
Density (g/cm3)
0.90-0.94
Ring Stiffness(3%,Normal Tem,Kpa)
SN24 ≥24
SN32 ≥32
SN40 ≥40
Flattening Test (50%)
No break,no crack.
Hammer Impact
No break,no crack.
Vicat Soften Temperature ( ℃)
≥150
Tensile Strength (%)
Pipe:≥25 ; Fusion Joint: ≥22.5
Elongation at Break (%)
≥400
Flexural Strength (Mpa)
≥36

Specification

1232509168553021442
1232509063620562945
E straight tube series Nominal outer diameter Wall thickness Ring stiffness Material Package length
48.3mm 2.2mm ≤10 level HDPE 6 m / root
48.3mm 2.5mm ≥10 level HDPE 6 m / root
48.3mm 3.0mm ≥10level HDPE 6 m / root
48.3mm 4.0mm ≥15 level HDPE 6 m / root
60.3mm 2.2mm ≤10level HDPE 6 m / root
60.3mm 2.5mm ≤10level HDPE 6 m / root
60.3mm 3.0mm ≥10level HDPE 6 m / root
75mm 2.2mm ≤10level HDPE 6 m / root
75mm 2.8mm ≤10level HDPE 6 m / root
75mm 4.0mm ≥15 level HDPE 6 m / root
75mm 5.0mm ≥15 level HDPE 6 m / root
89mm 2.8mm ≤10level HDPE 6 m / root
89mm 3.5mm ≥10level HDPE 6 m / root
100mm 2.8mm ≤10level HDPE 6 m / root
100mm 3.2mm ≤10level HDPE 6 m / root
100mm 3.5mm ≥10level HDPE 6 m / root
100mm 4.0mm ≥15 level HDPE 6 m / root
110mm 2.8mm ≤10level HDPE 6 m / root
110mm 3.2mm ≤10level HDPE 6 m / root
110mm 3.5mm ≥10level HDPE 6 m / root
110mm 4.0mm ≥15 level HDPE 6 m / root
160mm 5.0mm ≥10level HDPE 6 m / root
160mm 6.0mm ≥15 level HDPE 6 m / root
160mm 7.0mm ≥15 level HDPE 6 m / root

 MPP PIPE:

Outside diameter(mm)
Thickness(mm)
Length(mm)
Ring stiffness (3% ) Normal temperature
SN24
SN32
SN40
110
6
8
10
6000
160
10
12
14
180
12
14
16
9000
200
14
16
18
225
16
18
20
12000
250
18
20
22

 1. M-PP pipe has excellent electrical insulation.

2. M-PP pipe has higher thermal deformation temperature and low temperature impact performance.

3. M-PP pipe has higher tensile and compression resistance than HDPE.

4, M-PP pipe is light, smooth, frictional resistance is small, can be hot-melt butt joint.

5, M-PP tube long-term use temperature-5 ~ 70 ℃.

6. Construction instructions It is strictly forbidden to drop, hit, scratch, or expose to the sun during the transportation and construction of pipes.

The axis of the two pipes must be aligned during the hot-melt butt joint, and the end face cutting should be vertical and flat.

The processing temperature, time, pressure, and climate conditions are adjusted accordingly. The minimum bending radius of the pipe should be ≥75 pipe outer diameter.

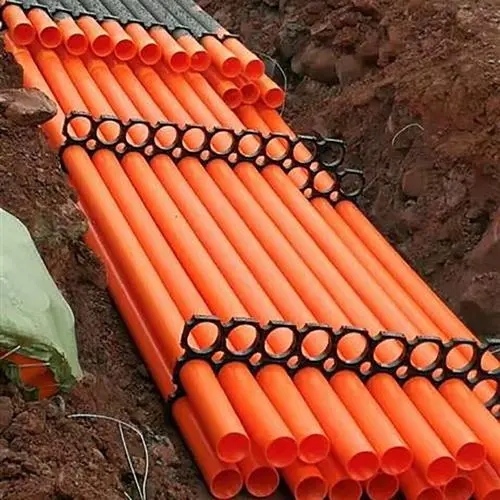

Application

Technology of trenchless is widely used based on its good advantages of non pollution of environment, not affect traffic, little
damage to stratigraphic texture,no need of soil transportation and pilling,cost-effective and remarkable social and economic
benefits.This kind of trenchless technology not only ensures the reliability of the network and reduces the failure rate, but also
makes the environment of the city greatly improved.There is no need to dig up and destroy the road surface largely.It is very
suitable for laying pipelines, cables and other construction works in special areas such as roads, railways, buildings and under
river etc.

20191121134626_32182
