China HDPE Pipe Manual Socket Fusion Machine PVDF Manual Welding Machine Manufacture and Factory

HDPE Pipe Manual Socket Fusion Machine PVDF Manual Welding Machine

Short Description:

1. Name: Plastic Pipe Manual Socket Fusion Machine

2. Working Temperature: 0-300°

3.Working range: Suitable 20-125mm

4. Function: Welding for plastic pipe

5. Material: Iron+Aluminum Heating Board





6. Usage: Heating for PPR and PE Pipe

7. Applicable Industries: Hotels, Building Material Shops, Machinery Repair Shops, Manufa

Send email to us Send email

Product Detail

Specification&Procession

Application&Certifications

Product Tags

CHUANGRONG is a share industry and trade integrated company, established in 2005 which focused on the production of HDPE Pipes, Fittings & Valves, PPR Pipes, Fittings & Valves, PP compression fittings & Valves, and sale of Plastic Pipe Welding machines, Pipe Tools, Pipe Repair Clamp and so on.

HDPE Pipe Manual Socket Fusion Machine PVDF Manual Welding Machine

Basic Information

Model NO.:	R 125 Q	Max Diameter:	125mm
Absorbed Power:	1400W	Working Temperature:	Tfe:260oc(+/-10oc);Te:180oc~290oc
Power Supply:	Te:230V-Single Phase 50/60Hz;Tfe:110~230V Single P	Specification:	CE ISO

Product Description

HDPE Pipe Manual Socket Fusion Machine PVDF Manual Welding Machine

Working range up to 4″ IPS- Manual socket fusion machinefor ppr pipes/fittings- Welders PP-R, PP, HDPE, PVDF- Available in two version:

with a fixed electronic thermostat TEwith a electronic temperature control TFE

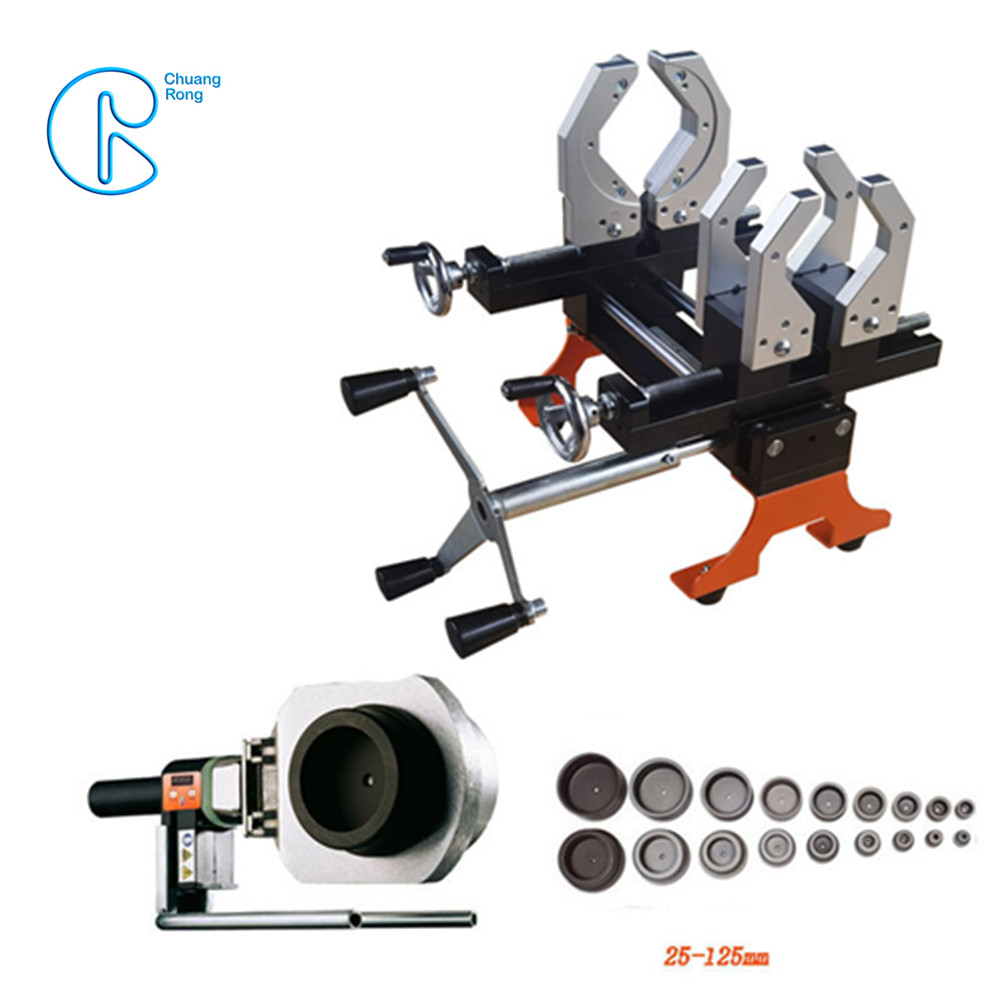

STANDARD COMPOSITION

All models are composed of:

- Socket welder

- Fork support

- Bench vice

- Allen wrench

- Pin for sockets & spigots

Material	PE, PP, PP-R, PVDF
Max Diameter	125mm
Absorbed Power	1400W
Weight	3.16 kg
Dimension	17550395mm
Working temperature	TFE:260ºC(+/-10ºC);TE:180ºC~290ºC
Ambient temperature	-5~40ºC
Power supply	TE:230V-Single phase 50/60Hz;TFE:110~230V Single phase 50/60 Hz

CHUANGRONG has an excellent staff team with rich experience. Its principal is Integrity, Professional and Efficient. It has established business relationship with more than 80 countries and zones in relative industry. Such as United States, Chile, Guyana, The United Arab Emirates, Saudi Arabia, Indonesia, Malaysia,Bangladesh, Mongolia, Russia, Africa and so on.

If you have any questions, you can feel free to contact us in anytime .

Welcome to contact us for products details and professional service.

Please send email to: chuangrong@cdchuangrong.com or Tel: + 86-28-84319855

Previous: PEX Pipe and Fittings For Potable Water With Green / White / Blue / Orange Color

Next: Pipe Extrusion Line Pe Hot Plastic Extrusion Welding Gun Plastic Fabrication

Material	PE, PP, PP-R, PVDF
Max Diameter	125mm
Absorbed Power	1400W
Weight	3.16 kg
Dimension	17550395mm
Working temperature	TFE:260ºC(+/-10ºC);TE:180ºC~290ºC
Ambient temperature	-5~40ºC
Power supply	TE:230V-Single phase 50/60Hz;TFE:110~230V Single phase 50/60 Hz
