PRISMA125 /160 Working/Construcion Site Socket Fussion Welding machine Using For Pipes And Fittings

Short Description:

1. Name: Plastic Pipe Socket Welding Machine
2. Working Temperature: 0-300°
3.Working range: Suitable 25-160mm
4. Function: Welding for plastic pipe
5. Material: Iron+Aluminum Heating Board
6. Usage: Heating for PPR and PE Pipe

7. Applicable Industries: Hotels, Building Material Shops


Product Detail

Product Tags

Basic Information

Usage: Socket Pipe Welding Warranty: 1 Year
Working Range: 25-125mm/75-160mm Materials: HDPE,PP,PB,PVDF,PPR
Selling Units: Single Item Working Temperature: 180-280℃
Product Name: Ppr Socket Fusion Machine

Product Description

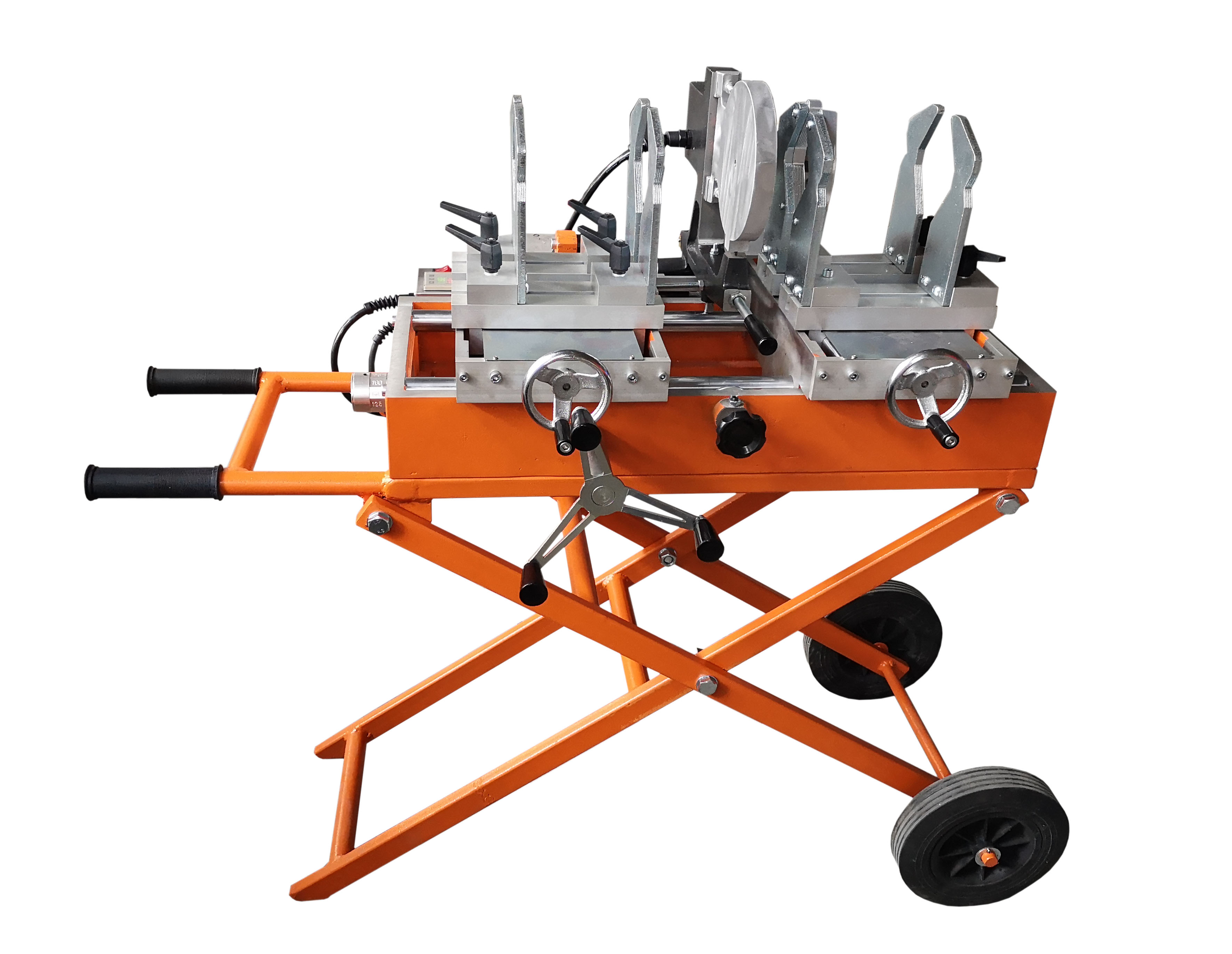

The body consists of four self-centering steel clips for locking pipes and fittings (different brands), self-centering socket welders with electronic temperature control, and equipment. For maximum heating depth, there is a sliding trolley, a tripod for supporting the pipe, a socket and a plug for fused from Ø25 to Ø125 mm or 75-160mm sockets with a steel housing.

standard composition-The body is equipped with an electronic socket welder-Steel housing with Ø25 to Ø125 mm socket connector and tool kit- Pipe support tripod- On-demand sliding car

1

Heater

2

Lever for heater movement

3

Socket

4

Fuse carrier

5

Heater switch
T Thermo regulator

6

Handle for lifting

7

Diameter selector

8

Locking lever

9

Jaw

10

Hand-wheel for carriages forward movement

11

Button for pipe positioning

12

Hand-wheel locking/unlocking pipe

13

Trolley handle

14

Trolley feet

15

Trolley wheels

16

T-wrench 5 mm

17

Sockets

18

Pin for sockets

19

Allen wrench 6 mm

Feature

PRISMA 125/160

110 Volt

230 Volt

Compatible diameters [mm]:

Ø 20 ÷ Ø 125/160

Power supply:

110 VAC 50/60 Hz

230 VAC 50/60 Hz

Maximum power drawn: (W)

2000

Dimensions during transportation l x l x h (mm)

1460x700x1080

Dimensions when working l x l x h (mm)

1500x840x1260

Mass of complete machine [kg]:

100

Box for transport (dimensions) l x l x h (mm) (*)

1420x820x930

Box for transport (weight)  [kg] (*)

40


(*)
: On request

SERVICE WRENCHES AND ACCESSORIES

1

Socket and accessories box

2

Extensions for jaws diameters Ø 110 ÷ Ø 160mm

1

Allen wrench 6 mm

1

T-wrench T 5 mm

1

Pin for sockets

1

Pipe support

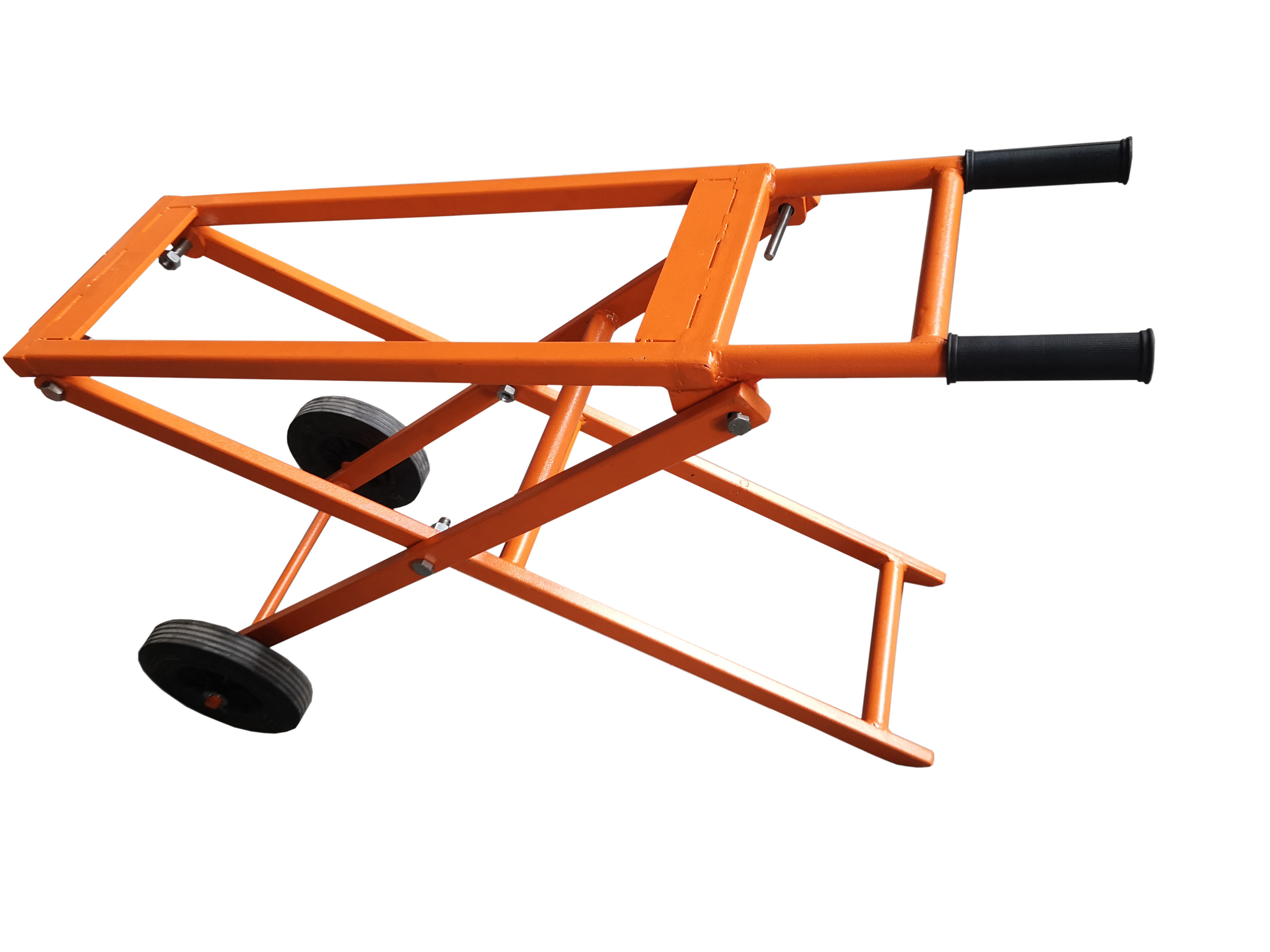

On request   Pipe support tripod

SET OF SOCKETS

25 Ø

32 Ø

40 Ø

50 Ø

63 Ø

75 Ø

90 Ø

110 Ø

125 Ø

140 Ø

160 Ø



DOCUMENTATION

     User and maintenance manual
     Declaration of conformity
     Electric schemes

Application

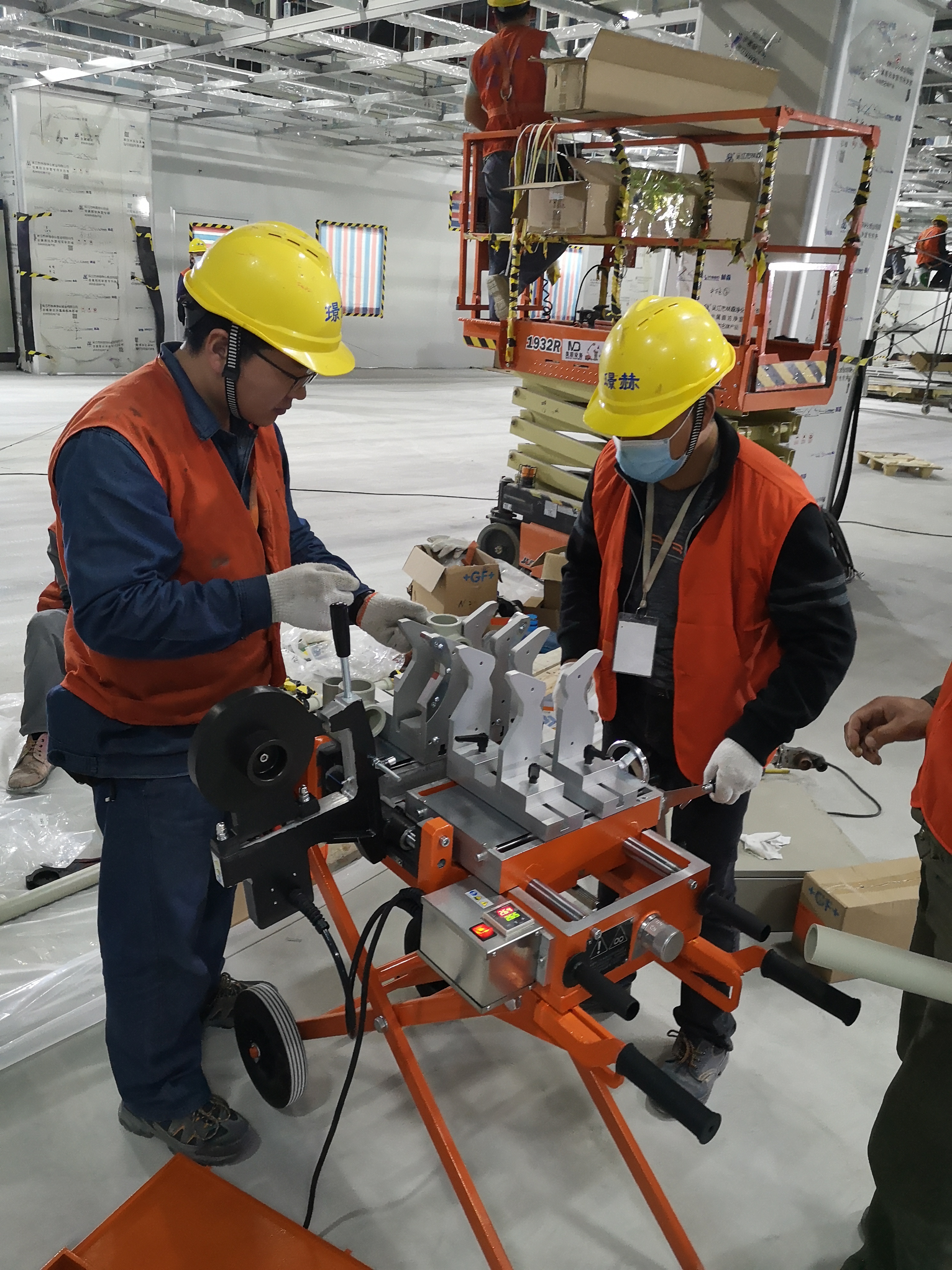

微信图片_20210604103522

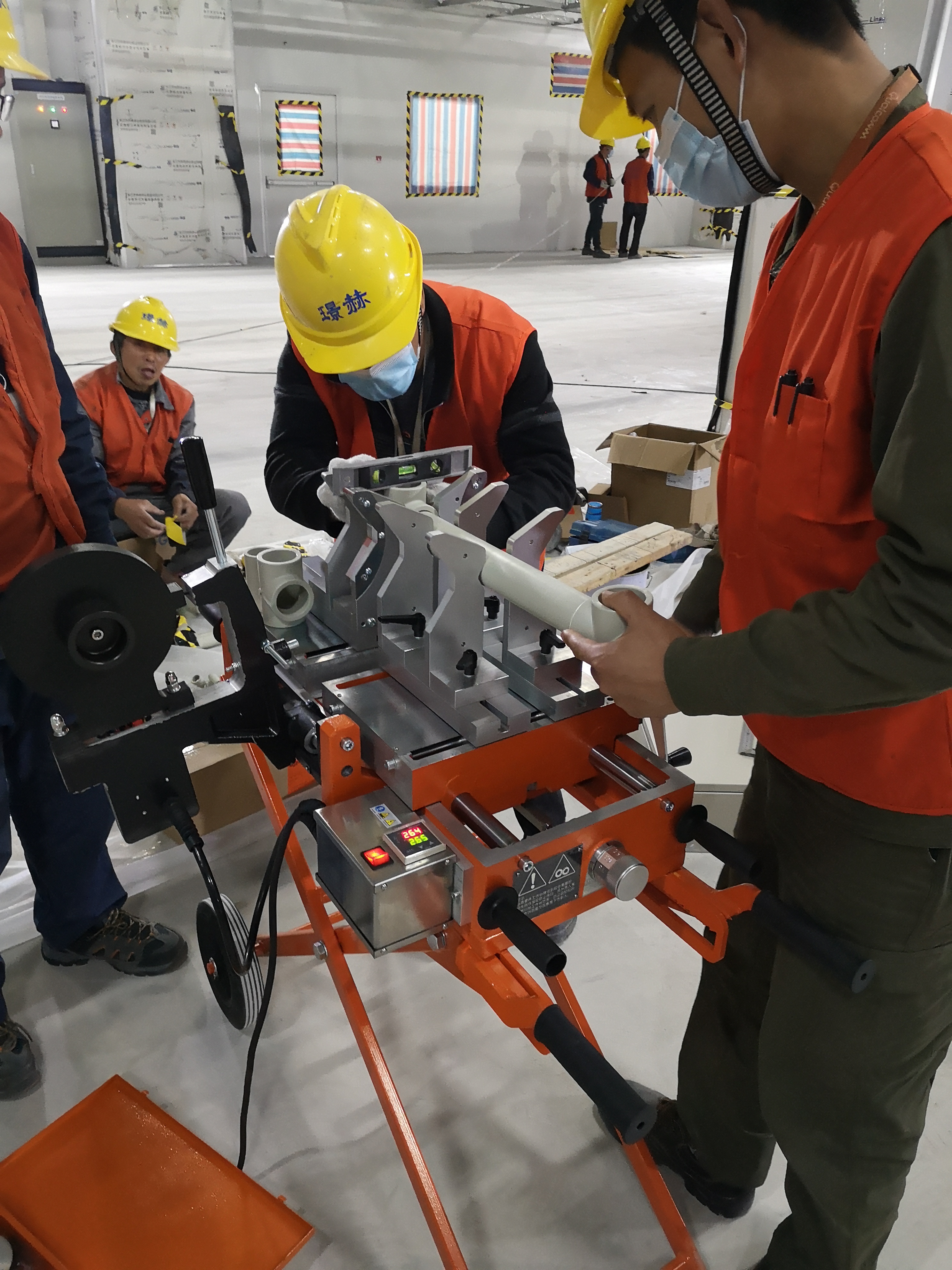

微信图片_20210604105635

The PRISMA 125/160 is a contact heating plate building-site machine, for socket fusion of polyethylene pipes and fittings (PE), Polypropylene (PP), Polyvinylfluoride (PVDF) and Polybutylene (PB) with a diameter between 25 and 125 mm.

Model PRISMA 125/160 allows the execution of weldings between pipes and fittings, it must be used exclusively by skilled and trained personnel in strict compliance with established legislation.
