China 20 – 315mm PP Compression Fitting PN16 PP Clamp Saddle High Stability Manufacture and Factory

20 – 315mm PP Compression Fitting PN16 PP Clamp Saddle High Stability

Short Description:

1. Name: PP Clamp Saddle

2. Size: dn20X1/2-315X4mm

3. Pressure : 10-16 bar.

4. Standard: ISO13460, DIN8076

5. Packing: Cartons or bags

6. Delivery: In Stock, Quick Deliery

7. Product inspection: Raw material inspection. Finished product inspection. Third party inspection upon clients request.

Send email to us Send email

Product Detail

Specification&Procession

Application&Certifications

Product Tags

Detail Information

CHUANGRONG is a share industry and trade integrated company, established in 2005 which focused on the production of HDPE Pipes, Fittings & Valves, PPR Pipes, Fittings & Valves, PP compression fittings & Valves, and sale of Plastic Pipe Welding machines, Pipe Tools, Pipe Repair Clamp and so on.

PP compression pipe fitting is a kind of pipe fitting that is mechanically connected. To ensure a perfect hydraulic seal in pressurized distribution structures, PP compression fitting require physical force to form a seal or create alignment.

HDPE pipe which is typically used in the transfer of liquids and drinking water at pressures up to 16 bar. It is also suitable for emergency repairs and high-quality projects. The materials we use are resistant to UV rays and many chemicals. We have developed a socket-type connection method that does not require hot melt to reduce labor and time costs.

Polypropylene -PP compression fittings DN20-110mm PN10 to PN16 for Water or Irrigation application.

20 X1/2- 315X4 PP Compression Fitting PN16 PP Clamp Saddle

Types	Specification	Diameter(mm)	Pressure
PP Compression Fittings	Coupling	DN20-110mm	PN10, PN16
	Reducer	DN20-110mm	PN10, PN16
	Equal Tee	DN20-110mm	PN10, PN16
	Reducing Tee	DN20-110mm	PN10, PN16
	End Cap	DN20-110mm	PN10, PN16
	90˚Elbow	DN20-110mm	PN10, PN16
	Female Adaptor	DN20x1/2-110x4	PN10, PN16
	Male Adaptor	DN20x1/2-110x4	PN10, PN16
	Female Tee	DN20x1/2-110x4	PN10, PN16
	Male Tee	DN20x1/2-110x4	PN10, PN16
	90˚ Female Elbow	DN20x1/2-110x4	PN10, PN16
	90˚ male Elbow	DN20x1/2-110x4	PN10, PN16
	Flanged Adaptor	DN40X1/2-110x4	PN10, PN16
	Clamp Saddle	DN20x1/2-110x4	PN10, PN16
	PP Double Union Ball Valve	DN20-63mm	PN10, PN16
	PP Single Female Union Ball Valve	DN20x1/2-63x2	PN10, PN16

Welcome to visit our factory or conduct a third-party audit.

Welcome to contact us for products details and professional service.

Please send email to: chuangrong@cdchuangrong.com

Product Description

20– 315 mm PP Compression Tubing Fittings Plastic PN16 Saddle Clamp

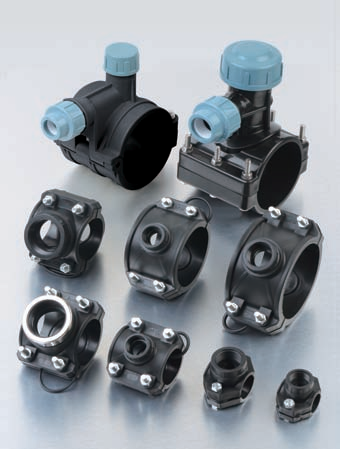

The clamp saddle line has been produced from hight quilty raw material and it has resistance to impact. it has been designed for side outputs on Polyetethylene(PE) pipes and it is available in the following range of sizes: Ttem4001/4002/4003/4004 with single or double output. They have diameters for the coupling with DN20mm to 315mm pipes and threaded outputs(1/2'-4"), provided with 2 and 4 bolts according to the diameters.

Part	Material
Body and cover	Black mastered polypropylene copolymer,with a high level of stabilization to UV
Gasket	Acrilonitrile elastomeric Rubber (NBR)
Reinforcing ring	Metal ring for female threads from 1/2" to 2"
Bolts	Chromiun-plated galvanized steel screws and nuts
Sanitary Prescriptions
The clamp saddle line is fit for conveying food fluids because its materials are conform to the national and international standard in force
Working pressure
The clamp saddle line allows a maximum working pressure (PN-PFA*)from 4 to 16 bar, at temperature of 20℃
Reference Standards
Pipes:UNI7990,DIN8074,UNI EN 12201
Threads:UNI ISO7/1,UNI ISO 228/1,ANSI ASME B1-20.1
International standards:ISO 13460

CHUANGRONG always supplies the best products and price for customers. It gives customers good profit to develop their business with more confidence. If you are interested in our company and products, please do not hesitate to contact us for further information.

Welcome to contact us for products details and professional service.

Please send email to: chuangrong@cdchuangrong.com or Tel: + 86-28-84319855

Previous: HDPE Socket Fusion Fittings Female Tee PE100 PN16 SDR11 For Industrial Liquids Transportation

Next: Full Size Blue High Pressure PPR Pipe For HAVC And Chilled Water

SIZE

Saddle Clamp 20*1/2

Saddle Clamp 25*3/4

Saddle Clamp 32*3/4

Saddle Clamp 32*1

Saddle Clamp 50*3/4

Saddle Clamp 50*1

Saddle Clamp 50*1-1/4

Saddle Clamp 63*3/4

Saddle Clamp 63*1

Saddle Clamp 63*1-1/2

Saddle Clamp 75*1-1/2

Saddle Clamp 75*2

Saddle Clamp 90*3/4

Saddle Clamp 90*1

Saddle Clamp 90*1-1/2

Saddle Clamp 90*2

Saddle Clamp 110*3/4

Saddle Clamp 110*1

Saddle Clamp 110*3

Saddle Clamp 125*1

Saddle Clamp 125*1-1/2

Saddle Clamp 125*2

Saddle Clamp 160*1

Saddle Clamp 160*4

Saddle Clamp 200*4

Saddle Clamp 250*1-1/2

Saddle Clamp 250*3

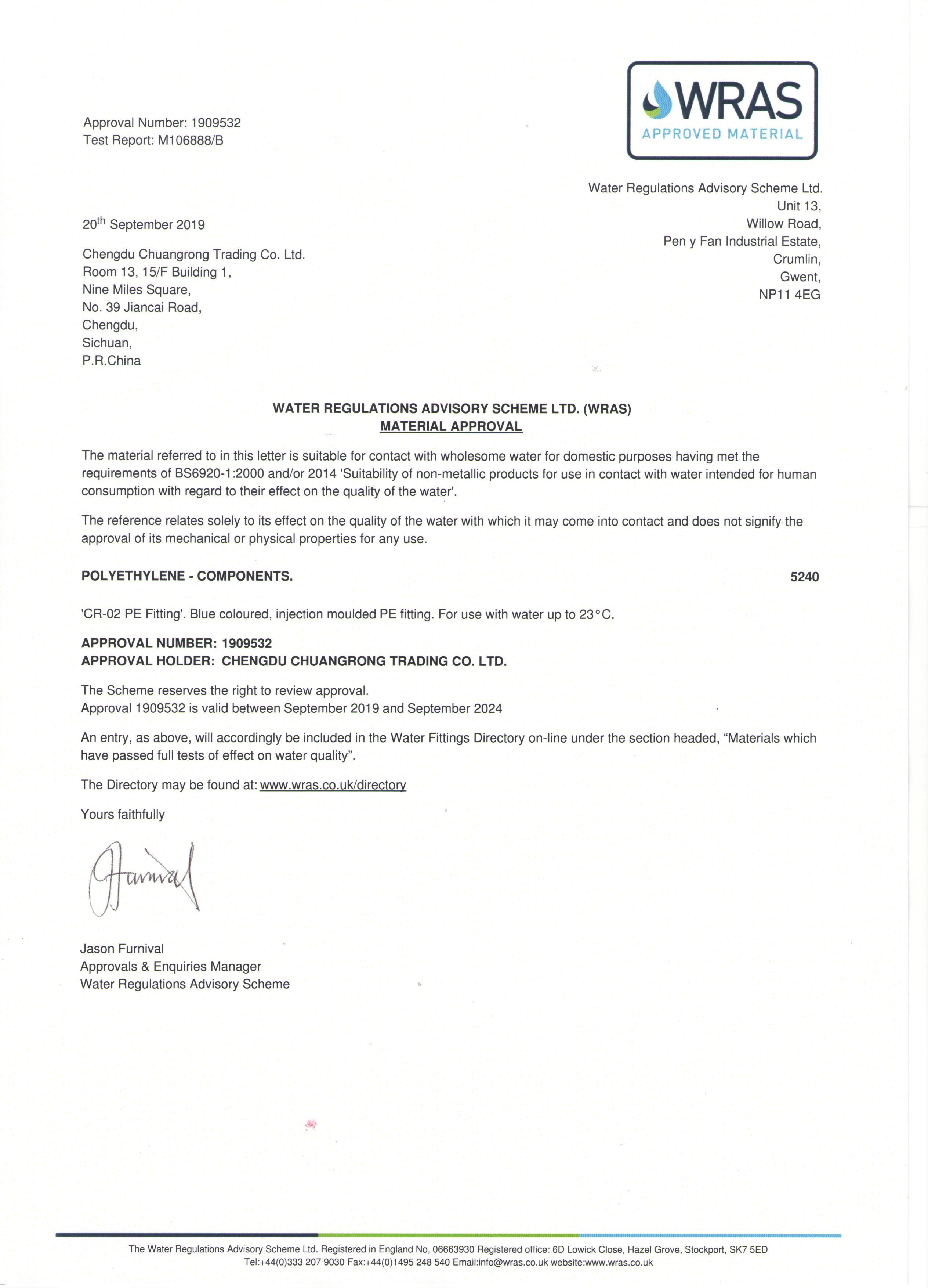

CHUANGRONG possesses complete detection methods with all kinds of advanced detection equipment to ensure the quality control in all processes from raw material to finished product. The products are in line with ISO4427/4437, ASTMD3035, EN12201/1555, DIN8074, AS/NIS4130 standard, and approved by ISO9001-2015, CE, BV, SGS, WRAS.

It is suitable for construction, electric wire tube, agricultural irrigation, industrial sewage and other projects.

1. Civil and industrial buildings for cold and hot water supply systems, egin residential buildings, hospitals, hotels, schools, office buildings, shipbuilding

2. Drinking water system and food industry pipeline engineering

3. Central air-conditioning system

4. Irrigation system garden and greenhouse

5. Public and sports facilities such as swimming pools and stadiums

6. For rainwater utilization system
