Water Supply UPVC/CPVC/PPH/PVDF Butterfly Valve With Plastic Hand Type

Short Description:

1. Name:  UPVC  PP-H  FRPP PVDF CPVC Hand Wheel Butterfly Valve

2. Size: dn50-200mm

3. Standard: ISO/DIN/ANSI/CNS

4.  Working Pressure:  PN16 or PN10

5. Packing: Cartons or bags

6. Delivery: In Stock, Quick Deliery

7. Product inspection: Raw material inspection. Finished product inspection. Third party inspection upon clients request.


Product Detail

Product Tags

Detail Information

CHUANGRONG is a share industry and trade integrated company, established in 2005 which focused on the production of HDPE Pipes, Fittings & Valves, PPR Pipes, Fittings & Valves, PP compression fittings & Valves, and sale of Plastic Pipe Welding machines, Pipe Tools, Pipe Repair Clamp and so on.



PP compression pipe fitting is a kind of pipe fitting that is mechanically connected. To ensure a perfect hydraulic seal in pressurized distribution structures, PP compression fitting  require physical force to form a seal or create alignment.

HDPE pipe which is typically used in the transfer of liquids and drinking water at pressures up to 16 bar. It is also suitable for emergency repairs and high-quality projects. The materials we use are resistant to UV rays and many chemicals. We have developed a socket-type connection method that does not require hot melt to reduce labor and time costs.

Polypropylene -PP compression fittings DN20-110mm PN10 to PN16 for Water or Irrigation application.

Water Supply UPVC/CPVC/PPH/PVDF Butterfly Valve With Plastic Hand Type

 Types

Specification

Diameter(mm)

Pressure

 PP Compression Fittings

Coupling

DN20-110mm

PN10, PN16



Reducer

DN20-110mm

PN10, PN16



Equal Tee

DN20-110mm

PN10, PN16



Reducing Tee

DN20-110mm

PN10, PN16



 End Cap

DN20-110mm

PN10, PN16



90˚Elbow

DN20-110mm

PN10, PN16



Female Adaptor

DN20x1/2-110x4

PN10, PN16



Male Adaptor

DN20x1/2-110x4

PN10, PN16



Female Tee

DN20x1/2-110x4

PN10, PN16



Male Tee

DN20x1/2-110x4

PN10, PN16



90˚ Female Elbow

DN20x1/2-110x4

PN10, PN16



90˚ male Elbow

DN20x1/2-110x4

PN10, PN16



Flanged Adaptor

DN40X1/2-110x4

PN10, PN16



Clamp Saddle

DN20x1/2-110x4

PN10, PN16



PP Double Union Ball Valve

DN20-63mm

PN10, PN16



PP Single Female Union Ball Valve

DN20x1/2-63x2

PN10, PN16





Welcome to visit our factory or conduct a third-party audit.

Welcome to contact us for products details and professional service.

Please send email to:  chuangrong@cdchuangrong.com



Product Description

Water Supply Pvc Ball Valve / Butterfly Valve With Plastic Hand Type

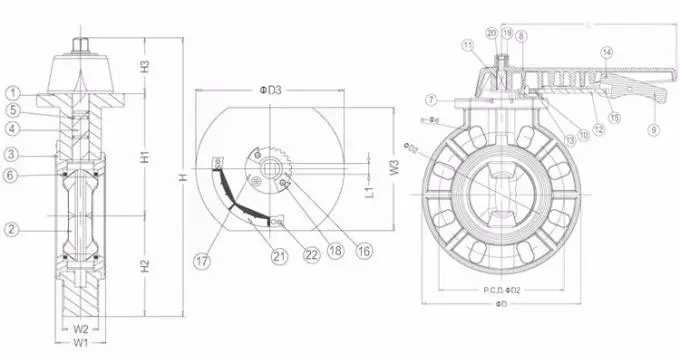

Part Material



NO.
PART
MATERIAL
QTY
1
Body
PVC,PVDF,CPVC
1
2
Disc
PP,PVDF,CPVC
1
3
Seat Seal
EPDM,FPM
1
4
Stem
SUS410/304/316
1
5
O-ring
EPDM,FPM
2
6
O-ring
EPDM,FPM
2
7
Insert Nut
BRASS
3
8
Large Handle
ABS
1
9
Small Handle
ABS
1
10
Spring Lock
ABS
1
11
Handle Insert
STAINLESS STEEL
1
12
Handle Lever
SUS304
1
13
Spring
SUS304
1
14
Spring Pin
SUS304
1
15
Spring Pin
SUS304
1
16
Locking Plate
SUS304
1
17
Gear Seat
PP+GF
1
18
Bolt
SUS304
3
19
Nut
PVC;’PVDF
1
20
Ninsert Nut
BRASS
1
21
Level
SUS304
1
22
Bolt
STAINLESS STEEL
2
Application: Water Supply Working Pressure: 150PSI
Size: 2″-10″ Media: Water
Sample: Available Material: UPVC,CPVC,PVDF,PPH

1.High quality with reasonable price

2.Oven test no sign of bubble or cracks

3.Simple installation and good electrical insulation

4.Water quality unaffected and small resistance to fluidity

5.Rustless,oxidation-resistant,anti-corrosion and environment-friendly

Application

1. General Service Commercial Plumbing

2. Irrigation

3. Swimming Pools & Water Parks

4. AquariumsPVC Ball Valve Widely used for irrigation,construction,water treatment,solar water system ,fountain…etc.

Packing & Delivery

Packaging Shipping:plywood case or wooden case;Lead Time :Shipped in 25 days after paymentPort:Ningbo,Shanghai or as requirement

Products Details

20191015112330_15937

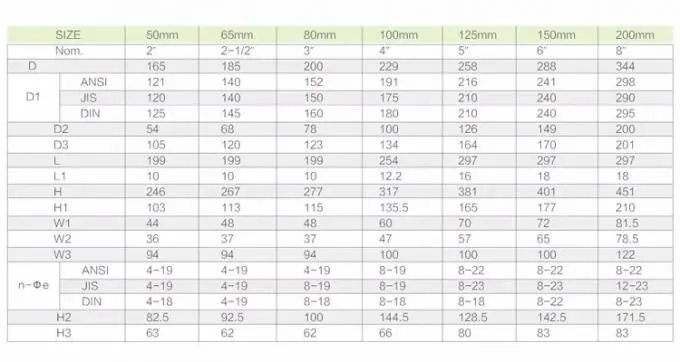

20191015112345_33770

Certification

CHUANGRONG possesses complete detection methods with all kinds of advanced detection equipment to ensure the quality control in all processes from raw material to finished product. The products are in line with ISO4427/4437, ASTMD3035, EN12201/1555,  DIN8074, AS/NIS4130 standard, and approved by ISO9001-2015, CE, BV, SGS, WRAS.
