Plastic PN16 Polypropylene Elbow Fitting Water Pipe Tube Joint Chemical Resistant

Short Description:

1. Name: 90 Degree Elbow

2. Size: dn20-110mm

3.Material:  Body is made of PP-B of exceptional mechanical properties even at high temprerature.

4.  Working Pressure:  PN16 or PN10

5. Packing: Cartons or bags

6. Delivery: In Stock, Quick Deliery

7. Product inspection: Raw material inspection. Finished product inspection. Third party inspection upon clients request.


Product Detail

Product Tags

Detail Information

CHUANGRONG is a share industry and trade integrated company, established in 2005 which focused on the production of HDPE Pipes, Fittings & Valves, PPR Pipes, Fittings & Valves, PP compression fittings & Valves, and sale of Plastic Pipe Welding machines, Pipe Tools, Pipe Repair Clamp and so on.



PP compression pipe fitting is a kind of pipe fitting that is mechanically connected. To ensure a perfect hydraulic seal in pressurized distribution structures, PP compression fitting  require physical force to form a seal or create alignment.

HDPE pipe which is typically used in the transfer of liquids and drinking water at pressures up to 16 bar. It is also suitable for emergency repairs and high-quality projects. The materials we use are resistant to UV rays and many chemicals. We have developed a socket-type connection method that does not require hot melt to reduce labor and time costs.

Polypropylene -PP compression fittings DN20-110mm PN10 to PN16 for Water or Irrigation application.

 Plastic PN16 Polypropylene Elbow Fitting Water Pipe Tube Joint Chemical Resistant

 Types

Specification

Diameter(mm)

Pressure

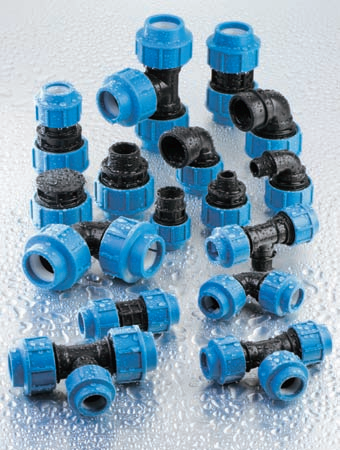

 PP Compression Fittings

Coupling

DN20-110mm

PN10, PN16



Reducer

DN20-110mm

PN10, PN16



Equal Tee

DN20-110mm

PN10, PN16



Reducing Tee

DN20-110mm

PN10, PN16



 End Cap

DN20-110mm

PN10, PN16



90˚Elbow

DN20-110mm

PN10, PN16



Female Adaptor

DN20x1/2-110x4

PN10, PN16



Male Adaptor

DN20x1/2-110x4

PN10, PN16



Female Tee

DN20x1/2-110x4

PN10, PN16



Male Tee

DN20x1/2-110x4

PN10, PN16



90˚ Female Elbow

DN20x1/2-110x4

PN10, PN16



90˚ male Elbow

DN20x1/2-110x4

PN10, PN16



Flanged Adaptor

DN40X1/2-110x4

PN10, PN16



Clamp Saddle

DN20x1/2-110x4

PN10, PN16

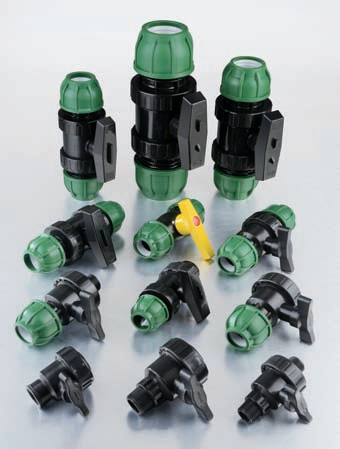

PP Double Union Ball Valve

DN20-63mm

PN10, PN16



PP Single Female Union Ball Valve

DN20x1/2-63x2

PN10, PN16





Welcome to visit our factory or conduct a third-party audit.

Welcome to contact us for products details and professional service.

Please send email to:  chuangrong@cdchuangrong.com



Product Description

Plastic PN16 Water Pipe Tube Joint Polypropylene Elbow Fitting
The compression fitting production line is designed to connect polyethylene pipes with an outer diameter of 20-110mm under high pressure to transport fluids. It is fully compatible with all PE80 and PE100 pipes complying with EN ISO 4427, ISO 14236, DIN8074, and pressures up to 16 bar.

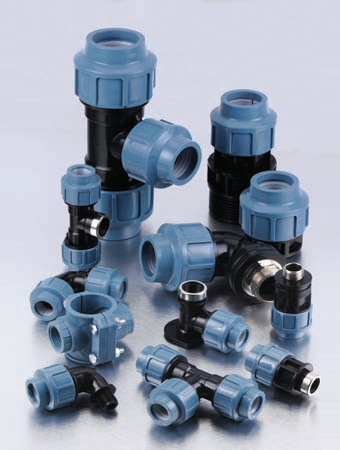

PP COMPRESSION FITTINGS 1
3
6
Product Name: PP Elbow Material: Polypropylene
Technics: Injection Molding Size: 20mm-110mm
Color: Blue,black Or As Requirement Standard: DIN 8076-3,ISO 14236, ISO13460
Polypropylene ElbowOperate Temperature



Due to the restrictions on the use of polyethylene pipes, refer to the regulations of the country of use.
The maximum operating temperature refers to the operating temperature of the polyethylene pipe, and the PP ELBOW can withstand temperatures below 0 ° C. The table below shows the maximum working pressure for continuous operation and temperature change.





Operating T[℃]
20℃
25℃
30℃
35℃
40℃
45℃
PFA[bar]
16
14.9
13.9
12.8
11.8
10.8
PFA[bar]
10
9.3
8.7
8
7.4
6.7

Specification

D DN PN CTN
20 15 16 150
25 20 16 88
32 25 16 52
40 32 16 26
50 40 16 15
63 50 16 11
75 65 10 6
90 80 10 4
110 100 10 4

Application

Universal pressure up to 16 bar, it is resistant to various chemical substances and UV rays. Can be used for PE pipe system and any existing pipe connection materials.

H376605123c524226bf0ae5349f226a07E_副本

Certification

CHUANGRONG possesses complete detection methods with all kinds of advanced detection equipment to ensure the quality control in all processes from raw material to finished product. The products are in line with ISO4427/4437, ASTMD3035, EN12201/1555,  DIN8074, AS/NIS4130 standard, and approved by ISO9001-2015, CE, BV, SGS, WRAS.

PP Compression Fittings

CHUANGRONG always supplies the best products and price for customers. It gives customers good profit to develop their business with more confidence. If you are interested in our company and products, please do not hesitate to contact us for further information.
