RTC160 RTC315 PE Gas Water Pipe Scraper Plastic Pipe Tool For Remove The Oxide Layer

Short Description:

1.These professional rotary scrapers, designed and patented by us, are essential to prepare the plastic pipes and fittings before electrofusion welding.

2. Practical and handy, the pipe scrapers remove the oxidation layer caused by weather and ultraviolet rays.

3. Model: RTC160,  RTC315,  RTC710


Product Detail

Product Tags

Detail Information

Type: Machine Tools MODEL: RTC710 RTC160 RTC315
Working Range: 160-710mm Max Dimensions: 825*805*695mm
Weight Standard Compsition: 39kg(16.5 Lb) Application: Remove The Oxide Layer On The Surface Of The Pipe

Product Description

14849727

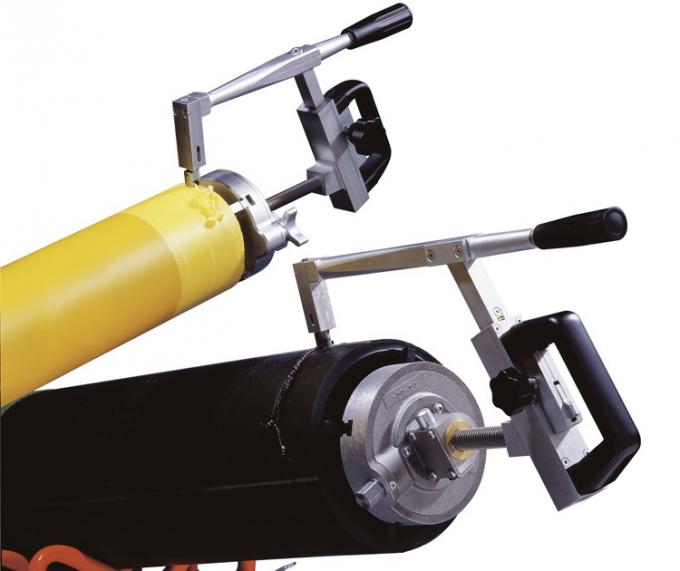

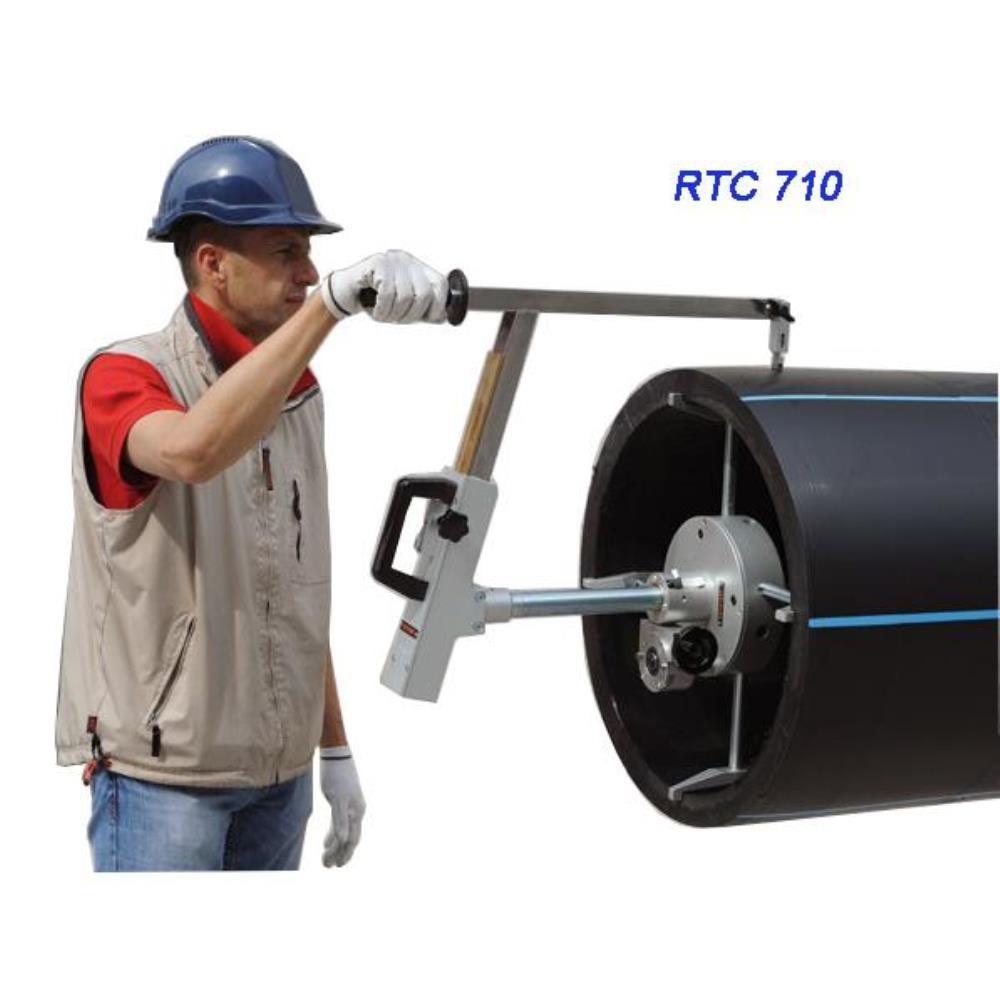

These professional rotary scrapers, designed and patented by us, are essential to prepare the plastic pipes and fittings before electrofusion welding. Practical and handy, the pipe scrapers remove the oxidation layer caused by weather and ultraviolet rays. If not removed, the oxidation layer would severely compromise the quality of the joint. Among the main construction features there is a device that makes it possible to maintain the thickness of the continuous chip constant, even if the pipe is misshaped, and to adjust the length of the surface to scrape according to the depth of the electrical coupler.The RTC 710 features an extendable arm to scrape the exact length of the electrical coupler, which is an advantage when having to perform maintenance/repair jobs in the building site. The main chuck has four extendable arms that clamps directly the inside diameter of the pipe.er

Technical Features

echnical Features Model

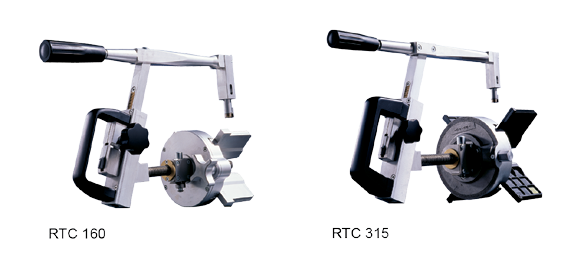

RTC 160 RTC 315 RTC 710
Internal Working Range

External Working Range

50-60mm

38-154mm

75-315mm

58-300mm

355-710mm

290-675mm

Scraping Length 70mm 137mm 530mm
Dimension(mm) 380*120*250 510*310*410 595*272*190
Weight 2.5kg 4.5 kg 16kg
20191023045356_41335

STANDARD COMPOSITION

 Pipe scraper- Adapters kit (except for RTC 710)- Spare blade- Handwheel key (for RTC 315)- Aluminum transport case- Screwdriver and small cutter

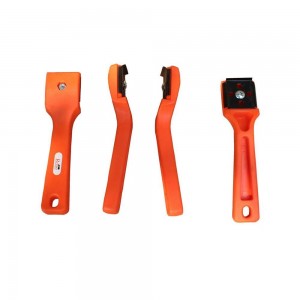

MANUAL SCRAPER

This manual tool is used with the same principle as the RTC pipe scrapers.The MANUAL SCRAPER features a practical plastic handle and a blade.Raccomended work range max. Ø 63 mm (2″)

Packing

Packing in one Aluminium case.

Max Dimensions:825*805*695mm

Dimension transport case:800*580*350mm

Weight only RTC:16kg

Weight standard compsition:39kg
