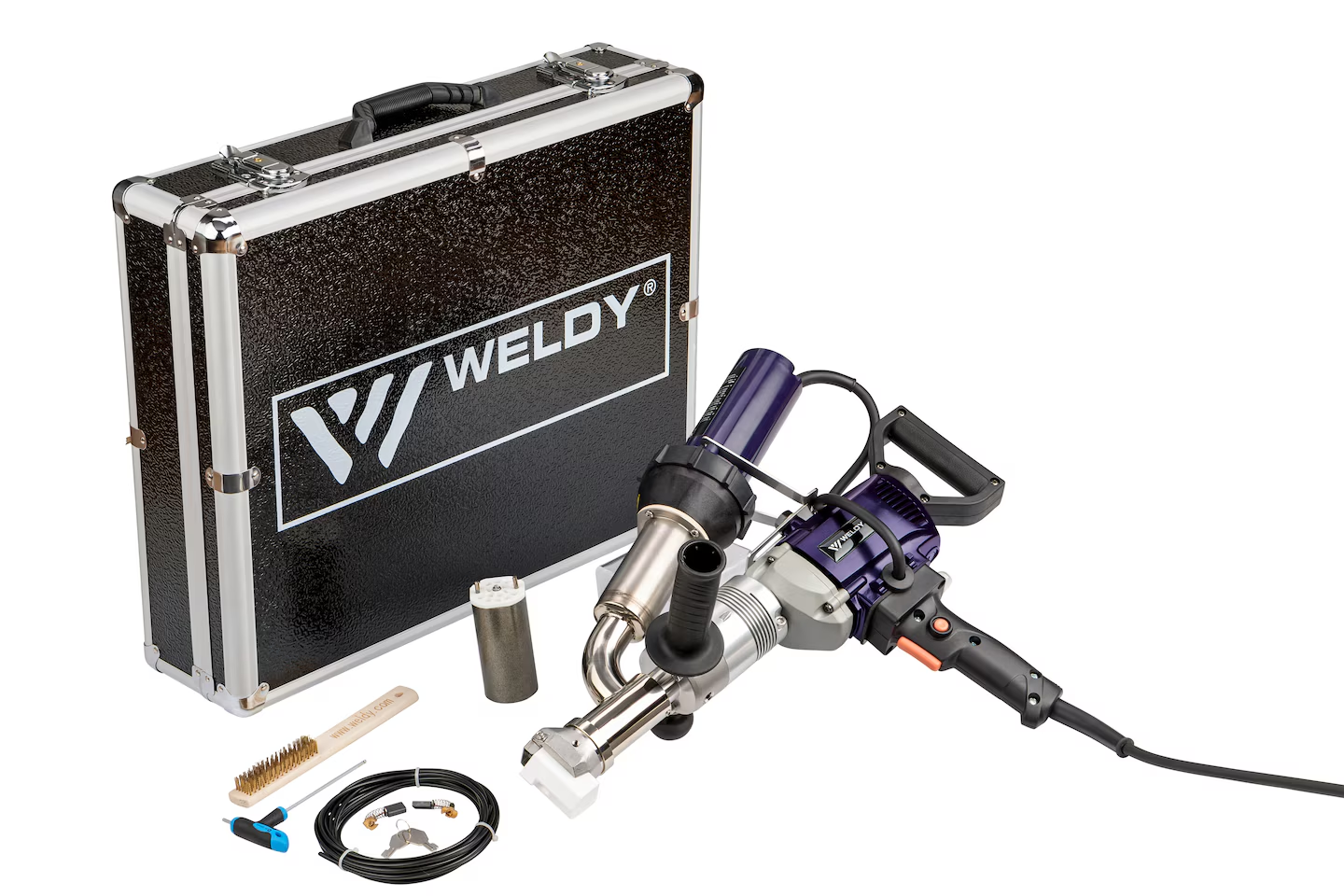

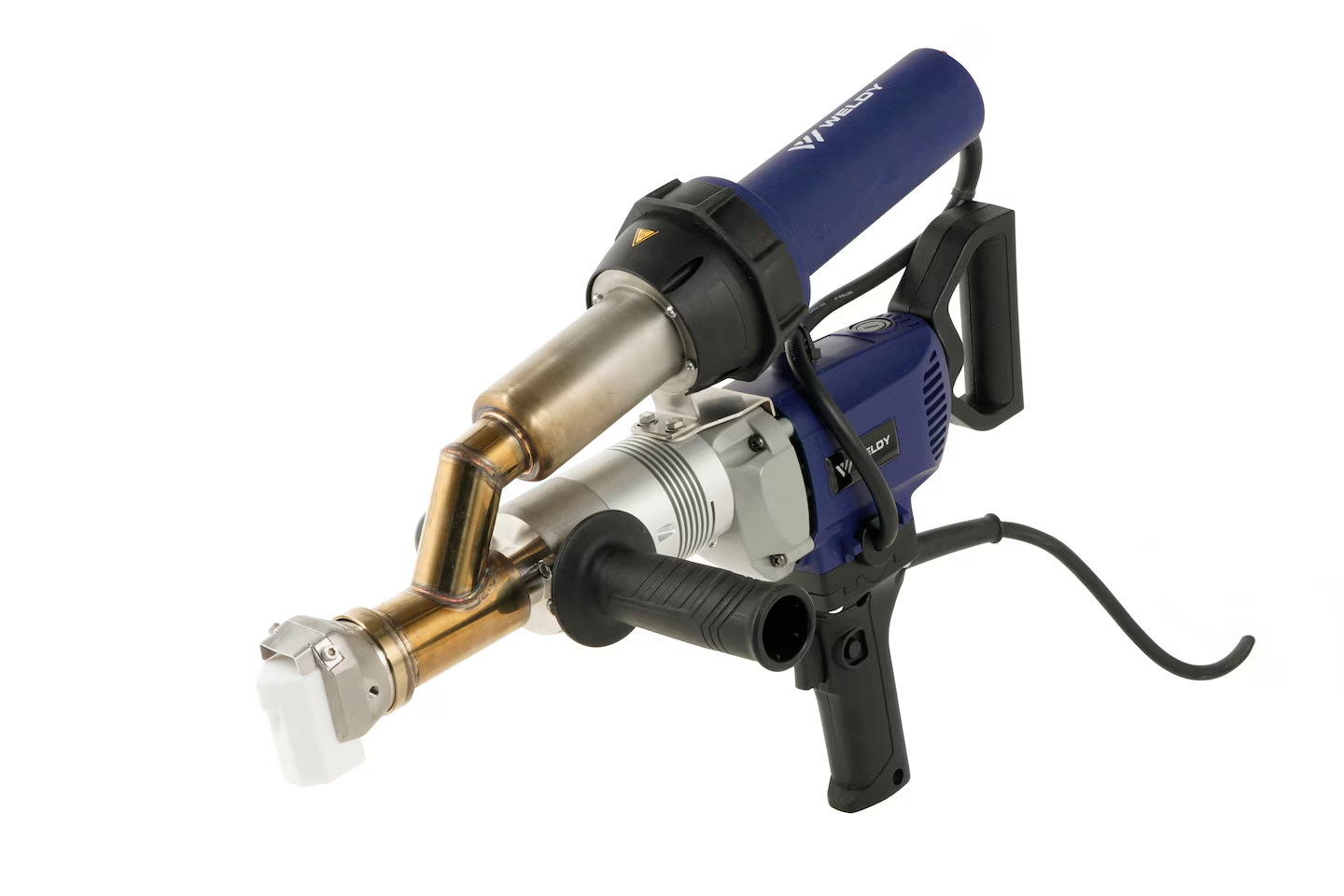

Plastic Hand Extrusion Welding Gun For Plastic Pipe Plastic Sheet WELDY Machines Booster EX2

Short Description:

1. Hot Air Power: 3400W
2. Welding Rod Heating Power: 800W
3. Extruding Power: 1300W
4. Air Temp: 20-600 °c Adjustable
5. Extruding Temp: 200-300 °c Adjustable
6. Welding Speed: 2.0-2.5Kg/h
7. Welding Rod DIA: 3.0mm-4.0mm
8. Material: PP HDPE LDPE


Product Detail

Product Tags

Detail Information

Quick  Details

Grade:   Industrial                                                                   Warranty:                  1 year

Power Source:    Electric                                                        Place of Origin:        China

Brand Name:   Weldy                                                              Model Number:        EX2

Feature: Cool / Hot Air, Temperature Adjustable                     Rated Voltage:          230V

Rated Output Power:   3000W                                                Weight:                     6.4KG Application: PE

PP HDPE PVDF                                                                      Product name:           Extrusion welder

For Application Range::    1.5-2.2 kg/h



Packaging & Delivery

Selling Units:        Single item                                                 Single package size:     500X140X430 cm

Single gross weight:   11.600 kg                                             Package Type:    Carton: 490*160*520mm

Product Description

Plastic Hand Extrusion Welding Gun For Plastic Pipe Plastic Sheet WELDY Machines Booster EX2

Description

This plastic extrusion welder is the first welder system with dual independent heating function in China.



The digital display controller has a 360° rotating welding head. It can work deep into a small space, and the motor cold start protection mechanism is applicable. For welding PE, PP, PVDF and other hot melt materials.



This product is with two major components,preheating raw material’s hot air part and welding rod’s extrusion part.



Hot air part with adjustable temperature controller to heat automatically,and extrusion part with independent thermostatic heating control system to send hot air independently, It is easy to adjust extrusion speed and use screw extruding for powerful extrusion pressure. Using 220v power supply uniformly to weld plastic sheets,tube and other thermoplastic products,especially for both ends of large diameter hollow wall pipe,producing pipe and repairing pipe and so on.

DSC08967

Product Features

Imported hot air welding torch and imported driven system, high temperature, big torque, long service life, stable performance.

Light weight, easy to handle and available to operation at different angles.



Big extrusion volume can be welded more than 10mm welding seam.



Different welding shoes can be applied to different types of welding.



It is used in the tank and pipe and is comply with Part 4 of the DVS standard (Germany Welding Association).

Data sheets

Model
EX2
EX3
Voltage
230V, 50/60Hz
Power
3000w
Welding rod
PE/PP Ø3-4mm
Extrusion volume
1.5-2.2 kg/h
2.4-3.4 kg/h
Product size
500*430*140mm
630*430*140mm
Net weight
6.9kg
6.4kg
Certification
CE
Protection class





DSC08985

Application

EX-5
H6346bcd83b2e48a08bd72a260e04cf001
DSC08974
DSC08975
