China Mini-Type Pipe Repair Clamp Quick Repair Leakage For Oil And Plastic Pipe Manufacture and Factory

Mini-Type Pipe Repair Clamp Quick Repair Leakage For Oil And Plastic Pipe

Short Description:

1. Mini- Type Stainless repair Clamp from 15mm to 200mm

2. SS Semi-circle pipe reprair clamp

3. SS Full-circle pipe repair clamp

4. Quick repairing of the small leakage on/oil/ gas/water supply or drainage pipe

5. Test :EN12266-1

Send email to us Send email

Product Detail

Specification

Application

Product Tags

CHUANGRONG is a share industry and trade integrated company, established in 2005 which focused on the production of HDPE Pipes, Fittings & Valves, PPR Pipes, Fittings & Valves, PP compression fittings & Valves, and sale of Plastic Pipe Welding machines, Pipe Tools, Pipe Repair Clamp and so on.

Mini-Type Pipe Repair Clamp Quick Repair Leakage For Oil And Plastic Pipe

Detail Information

Type:	Mini	Suitable Pipe:	Water ,gas,oil Pipeline
Usage:	Pipe Leak Repair	Rubber Sealing Gasket:	EPDM/NBR/SILICONE/VITON/GORE-TEX
Bolts:	SUS304/316,or Cast Iron With Q235B Galvanization	Nuts:	SUS304/316,or Cast Iron With Q235B Galvanization

Product Description

Mini-Type Pipe Repair Clamp Quick Repair Leakage For Oil And Plastic Pipe

-Lightweight stainless steel body.

-Flexible connect.

-Safe and reliable.

-Firm and convenient.

-Suitable for various pipe.

Component/Material	M1	M2	M3	M4
Shell	AISI 304	AISI 304	AISI 316L	AISI 32205
Bridge Plate	AISI 304	AISI 304	AISI 316L	AISI 32205
Screw Hole Tie Rod/Tie Rod	AISI 1024 Hot Dip Galvanized Steel	AISI 304	AISI 316L	AISI 32205
Screw	AISI 1024 Hot Dip Galvanized Steel	AISI 304	AISI 316L	AISI 32205
Gear-Ring	AISI 301	AISI 301	AISI 301	-
EPDM Rubber Sealing Sleeve	Temperature:-20℃ to +120℃ Medium:Available for various kinds of water, drainage,air solid and chemicals.
NBRRubber Sealing Sleeve	Temperature:-20℃ to +80℃ Medium:Available for gas,oil,fuel and other hydrocarbon.
MVQ Rubber Sealing Sleeve	Temperature:-75℃ to +200℃
VITONRubber Sealing Sleeve	Temperature:-95℃ to +350℃

CHUANGRONG has an excellent staff team with rich experience. Its principal is Integrity, Professional and Efficient. It has established business relationship with more than 80 countries and zones in relative industry. Such as United States, Chile, Guyana, The United Arab Emirates, Saudi Arabia, Indonesia, Malaysia,Bangladesh, Mongolia, Russia, Africa and so on.

If you have any questions, you can feel free to contact us in anytime .

Welcome to contact us for products details and professional service.

Please send email to: chuangrong@cdchuangrong.com or Tel: + 86-28-84319855

Previous: R-SB40 Large Rod Extruder Handle Use Plastic Extrusion Welding Gun

Next: Plastic Hand Extrusion Welding Gun For Plastic Pipe Plastic Sheet WELDY Machines Booster EX2

PIPE SIZE	WIDTH	RUBBER	MPA
1/2”	75	EPDM/NBR	PN16
1/2”	150	EPDM/NBR	PN16
3/4”	75	EPDM/NBR	PN16
3/4”	150	EPDM/NBR	PN16
1”	75	EPDM/NBR	PN16
1”	150	EPDM/NBR	PN16
1 1/4”	75	EPDM/NBR	PN16
1 1/4”	150	EPDM/NBR	PN16
1 1/2”	75	EPDM/NBR	PN16
1 1/2”	150	EPDM/NBR	PN16
2″	75	EPDM/NBR	PN16
2″	150	EPDM/NBR	PN16
2 1/2″	75	EPDM/NBR	PN16
2 1/2″	150	EPDM/NBR	PN16
3″	75	EPDM/NBR	PN16
3″	150	EPDM/NBR	PN16
4″	75	EPDM/NBR	PN16
4″	150	EPDM/NBR	PN16

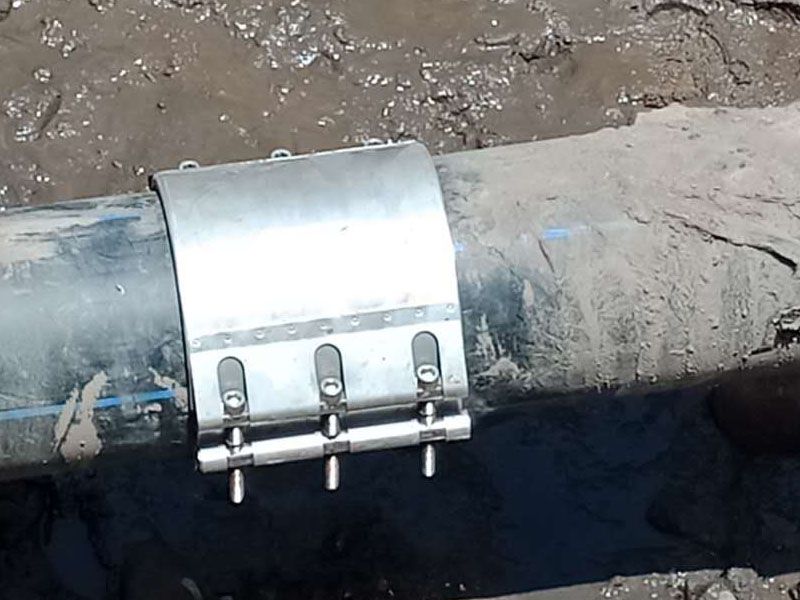

MINI series is applies on quick repairing of the small leakage on oil/gas/water supply or drain pipe which has advantages of handiness small volume, easy to use, safe and fire-free, and also can be used under pressure.
