Large Size 380V/415V CRDH630-800/CRDH630-1000 PE PP PVDF Pipe Butt Fusion Welding Machine

Short Description:

1.  Butt Welding Machine

2.  CRDH800(630/710/800)

3. CRDH1000(630/710/800/900/1000)

4. Connecting PE, PP, PVDH Pipes and fititngs


Product Detail

Specification&Procession

Application&Certifications

Product Tags

Basic Information

Usage: Plastic Pipe Welding After-sales Service Provided: Free Spare Parts, Field Installation, Commissioning And Training, Online Support, Video Technical Support
Warranty: 1 Year Working Range: 630-800/630-1000
Power Supply: 380V/415V Single Phase: 50/60Hz

Product Description

This is a self-aligning machine,suitable fore welding ducts for transport of water of and other fluids under pressure, up to dn1000mm 36” DIPS. The CRDH800,CRDH 1000 was designed in accordance to the International correspondent standards (UNI10565, ISO12716-1), and consistsof :

-A machine body with a bearing frame, four clamps and two hydraulic thrust cylinders with non-drip quick cooplings and steel inserts.

-An extractable heating plate with seprate thermometer for reading the working temperature.

-An extractable electrically controlled milling cutter.

-An electrohydraulic gearcase with clamping opening and closing lever.

-A milling cutrer/heating plate support.


  • Previous:
  • Next:

  • Model CRDH 800 CRDH 1000
    Range(mm) 630/710/800 630/710/ 800/900/1000
    The Heating Plate Temperature 170℃-250℃(±7℃)Max270℃ 170℃-250℃(±7℃)Max270℃
    Power Supply 16.9KW 26.2KW
    Total Weight 1440kg 1900kg
    Optional Accessory Stub end holder and special inserts

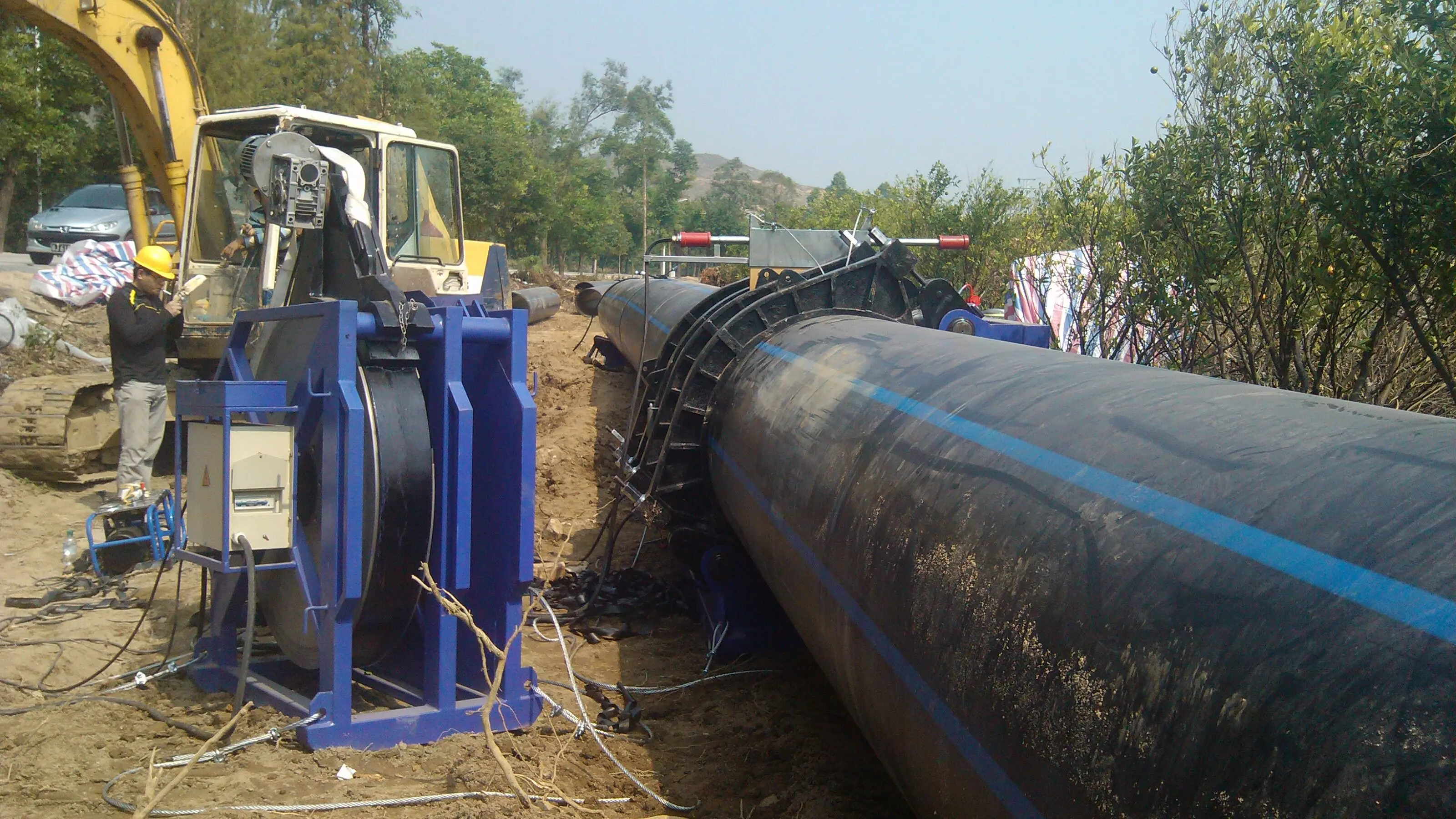

    1. Applies to the site, a trench connecting PE, PP, PVDF pipes, pipe fittings can also be produced in the workshop

    2. From the rack, cutter, independent heating plates and brackets

    3.Frame made of high strength materials and structures, 45 ℃ tilt design

    4.Electric cutter, safety limit switch to prevent accidental star-cutter

    5. Configuration quickly, saving the heating plate, cutter lifts

    Dimension Volume(cbm) Net Weight(kg) Gross Weight(kg) Pgs
    CRDH 800 Body+ Hydraulic2110*1440*1570 4.77 1000 1200
    Basket1340*830*1700 1.89 300 379
    Crane2500*330*460 0.38 140 180
    Total 7.04 1440 1759 3 cases
    CRDH 1000 Basket1360*1020*2110 2.926 683
    Body+ Hydraulic2640*1790*1860 8.789 1548
