Coupling Pipe Fittings For Underground Cable Conduit

The Industrial Significance of Coupling Pipe Fittings in Underground Cable Conduits

As cities transition to smart grids and robust telecommunication frameworks, the undergrounding of power cables and fiber optic lines has become a global standard. Overhead power distribution is highly vulnerable to extreme weather conditions, environmental deterioration, and physical disruptions. Underground infrastructure, however, requires high-integrity protective conduit systems to ensure long-term operational reliability. Inside these networks, coupling pipe fittings for underground cable conduits play a vital structural role.

Conduits must withstand dynamic external pressures, including soil loads, heavy traffic stresses, and thermal expansion, while maintaining a dry and sealed environment for the cables inside. The couplings and joints are often the weakest links in any piping network. Selecting specialized HDPE (High-Density Polyethylene) or PP (Polypropylene) coupling fittings ensures that the joints maintain the same mechanical strength, elasticity, and impermeability as the main conduit pipes. This prevents moisture ingress, chemical corrosion, and root intrusion, ensuring uninterrupted power and data transmissions.

Key Application Scenarios of Conduit Couplings

1. High-Voltage Power Transmission Grids

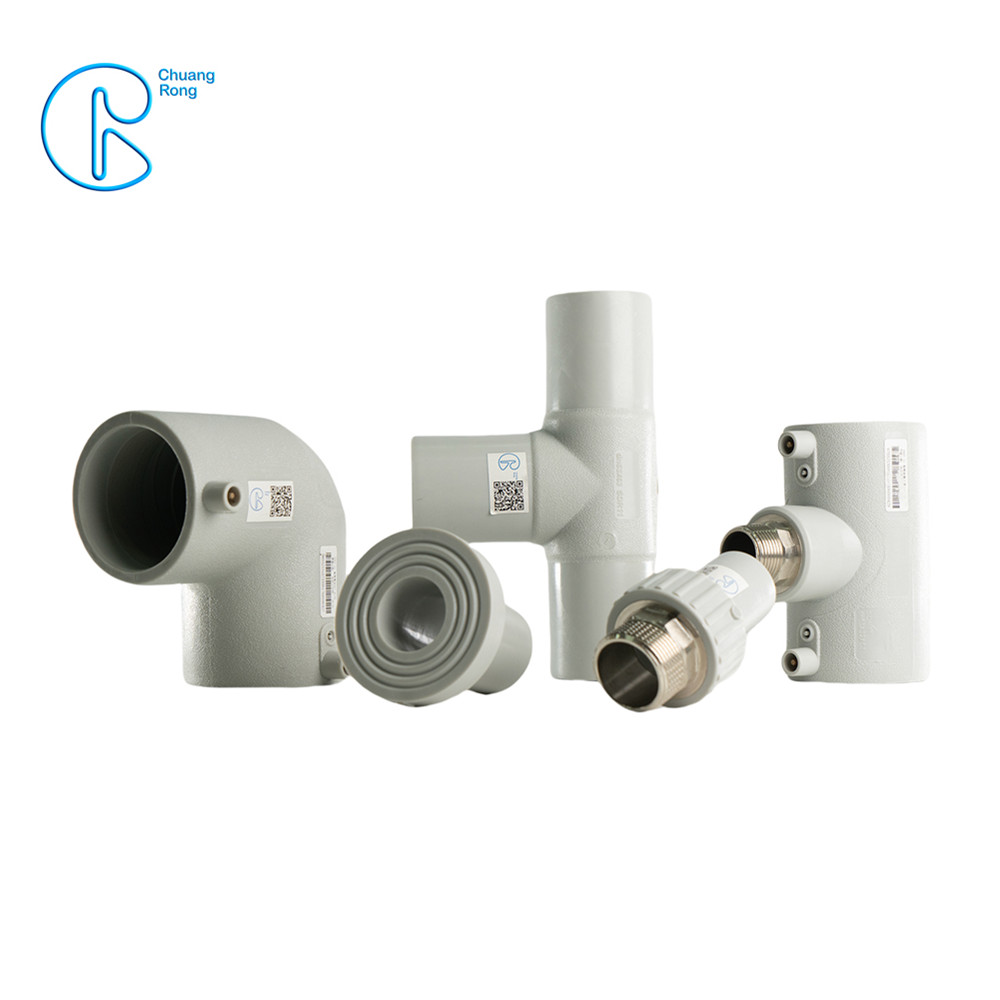

Modern electrical grids rely on underground high-voltage transmission lines. These cables generate significant heat during operation, requiring thermal-resistant conduit materials. Advanced materials like PE-RT II (Polyethylene of Raised Temperature Resistance) fittings and high-performance HDPE couplings are utilized to withstand constant thermal cycling without structural degradation. The tight seal provided by fusion couplings prevents groundwater from entering the conduit, avoiding catastrophic short-circuits and electrical failures.

2. Telecommunication & 5G Fiber Optic Microducts

Telecommunication networks require extensive microduct paths for blown fiber installation. The inner walls of the conduits and couplings must be exceptionally smooth to minimize friction during the blowing process. High-precision PP compression couplings and socket fusion joints provide seamless transitions, preventing the fiber optic cables from getting caught or damaged during installation.

3. Urban Rail Transit and Subway Systems

Subway tunnels and railway lines are subject to constant vibrations and structural shifts. Conduit couplings in these environments must exhibit high impact resistance and vibration fatigue resistance. HDPE socket fusion fittings and repair clamps provide robust, maintenance-free connections that ensure the integrity of critical signaling and power cables over decades of service.

Technological Trends and Innovations in Underground Cable Conduits

The underground piping industry is rapidly evolving, driven by material science advancements and smart city initiatives. Below are the key trends shaping the future of underground cable conduit systems:

• Integration of Trenchless Technology: Traditional trenching is disruptive and expensive in urban areas. Trenchless methods like Horizontal Directional Drilling (HDD) and pipe bursting are now preferred. This requires couplings with high tensile strengths and smooth profiles, ensuring the conduit string can be pulled through boreholes without joint separation.
• Smart Conduit Systems: Future-ready conduits are being designed with embedded sensing technologies. These sensors monitor temperature spikes, moisture ingress, and structural deformations in real-time, allowing operators to locate faults along the conduit network before they escalate.
• Enhanced Flame Retardancy: Safety regulations in high-density areas demand conduits and fittings with fire-resistant properties. Halogen-free flame retardant HDPE and PP compounds are increasingly specified to prevent fire propagation along underground cable ducts.
• Eco-Friendly and Recyclable Materials: Environmental sustainability is a major priority. Manufacturers are optimizing production processes to reduce carbon footprints, utilizing 100% recyclable polyolefins that offer a service life exceeding 50 years.

Comparative Analysis: HDPE vs. Traditional Conduit Materials

Historically, PVC, steel, and concrete were widely used for underground cable protection. However, modern engineering projects favor HDPE and PP systems due to their distinct advantages:

1. Corrosion Resistance: Unlike steel, HDPE is immune to electrochemical corrosion, rust, and acidic soils. It requires no cathodic protection, reducing lifetime maintenance costs.
2. Flexibility and Bend Radius: PVC is brittle and prone to cracking under seismic shifts or soil settlement. HDPE's flexibility allows it to bend around obstacles, reducing the number of elbow fittings required on-site.
3. Joint Integrity: Threaded steel joints and solvent-cemented PVC joints can degrade and leak over time. Fusion-welded HDPE joints create a continuous, leak-free system that prevents water ingress.
4. Weight and Installation Ease: HDPE is lightweight, reducing transportation costs and the need for heavy machinery during installation, which speeds up project timelines.

Commercial & Strategic Considerations for Infrastructure Planners

When engineering underground cable conduit networks, selecting the correct coupling pipe fittings is critical to minimizing life-cycle costs and avoiding operational downtime. Municipalities, utility providers, and telecommunication companies must evaluate several factors:

• Standard Dimension Ratio (SDR) Compatibility: Fittings must match or exceed the pressure and stiffness ratings of the pipes. Utilizing SDR11 or SDR17 HDPE fittings ensures the joints can withstand external soil loads and internal installation stresses.
• Long-Term Cost Efficiency: While high-quality polymer fittings may carry a higher initial cost compared to low-grade PVC alternatives, they eliminate the risk of joint separation, water ingress, and cable damage. This significantly reduces long-term maintenance and emergency repair costs.
• Regulatory Compliance: Underground utility networks must comply with strict safety and quality standards. Purchasing fittings certified to ISO, ASTM, and EN standards ensures compliance with local municipal codes and international engineering guidelines.

By partnering with an experienced manufacturer like CHUANGRONG, project planners gain access to certified, high-performance piping components alongside the technical support required for complex underground installations.
