HDPE Siphon Drainage Pipeline HDPE Horizontal Floor Drain PN6 50mm 75mm

Short Description:

1. Name:  HDPE Floor Trap

2.  Size : 50mm, 75mm

3. Siphon  Draining Fittings

4.  Suitable for a multitude of application ranges in building drainage, roof drainage, in industry, in commercial or laboratory facilities, for placement in the ground, in concrete or in bridge construction.


Product Detail

Product Tags

Basic Information

Product Name: PN6 50mm 75mm HDPE Draining Fittings Siphon Horizontally Floor Drain Application: Sewage,Syphonic,Drainage
Certificate: ISO9001-2008, BV ,SGS, CE Etc Certification. Port: China Main Port(Ningbo,Shanghai Or As Required)
Technics: Injection Connection: Buttfusion

Product Description

HDPE FLOOR TRAP

suitable for a multitude of application ranges in building drainage, roof drainage, in industry, in commercial or laboratory facilities, for placement in the ground, in concrete or in bridge construction.

  • Resistant to around 95% of all standard alkalis, acids and chemicals.
  • The pipes and fittings withstand shocks, drops, impacts or short-term pressure without breakage or permanent deformation



Sizes available (choose one)

(d, ø / d1, ø) = 75 mm / 50 mm



Application Purpose:

  • For horizontal floor waste drainage

Characteristics:

  • Outlet DN 75 mm;
  • There are 3 outlets DN 50 mm;
  • The dip tube of the waste trap is removable.

Material: PE-HD

Height of the water seal: 75 mm

Features / specifications

Inlet capacity: 0.5 l/s. Discharge rate: 0.8 l/s. Depth of water seal: 50 mm

Characteristics: Straight connector permanently mounted, ø 75 mm, made of PE-HD. Three connection options, made of PE-HD, ø 50 mm. Trap insert can be removed without tools.

Application purposes: For use inside buildings. For connecting sanitary appliances. For use as floor drain with horizontal outlet. For cross-floor installations.

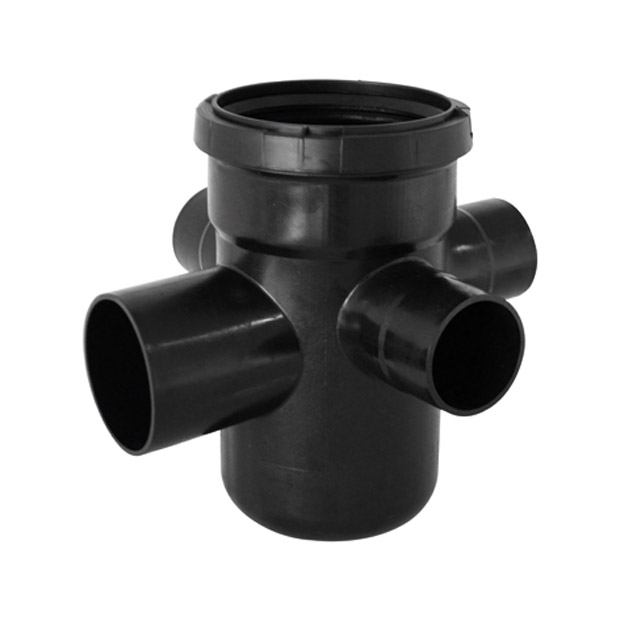

Geberit Collector Drain 9
Geberit Collector Drain 11
Geberit Collector Drain 10

Performance

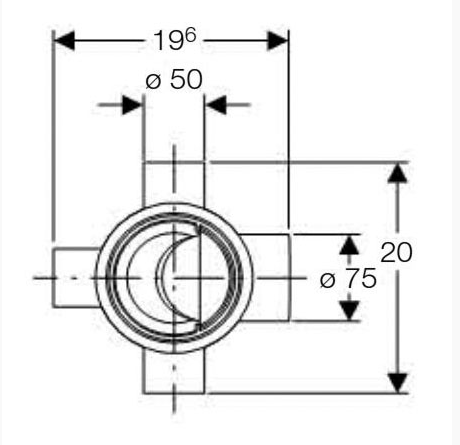

微信图片_20210611150239

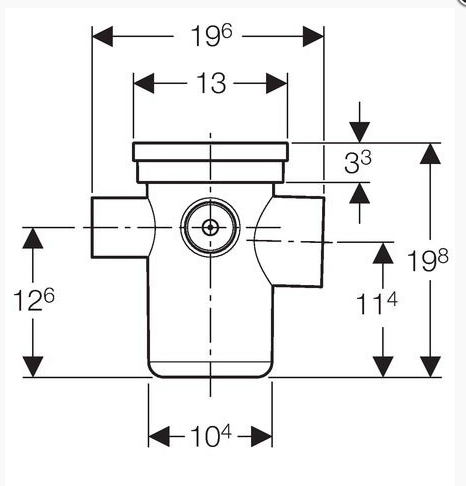

微信图片_202106111502391

1.Elasticity:In some applications, especially when the pipeline is exposed to vibration, earthquake or ground movement subsidence, the flexibility of the pipe material prevents the pipe from breaking.

2.Resistance to cold:CHUANGRON siphon pipeline has anti-freezing performance. When the water in the pipeline is frozen, Ordinary pipeline will freeze and crack, but CHUANGRONG HDPE will not.

3.CHUANGRONG High Density Polyethylene HDPE: Density 951 – 955 kg/m3

The density of polyethylene can be 910 – 960 kg / m3. CHUANGRONG fittings and pipes Weighing 955.29 kg / m3, its characteristics not only have durability. And light weight, very convenient for transportation and installation.

4.Resistance to impact:CHUANGRONG HDPE is also very suitable for installation in. The parking lot and pedestrian zone are indestructible at room temperature. Its impact resistance is very high. Even at extremely low temperatures (down to about -40 ° C).

5.Resistance to abrasion:HDPE is highly abrasion resistant; its extra thick wall provides additional protection.

Pipe abrasion resistance is a particularly important factor in branch pipes and sewers, Chimney and ground pipes. HDPE is highly abrasion resistant.

6.Heat expansion:The thermal expansion of HDPE also needs to be considered in the design and installation.

As a rule Thumb, for every 50 ° C increase in temperature, 15 mm expansion per meter of pipe can be expected.

7.1)System principle:The working principle of the siphon drainage system depends on the special design of the rainwater hopper implement separation, So that the rain is flowing state in theriser, when the rain reached a certain capacity in the riser, siphonage is generated.In the process of rainfall, due to the continuous siphonage, the whole system is able toquickly rule out water from the roof. Butt Fusion Welding and Electrofusion Welding.

7.2) System composition: The siphon drainage system is mainly composed of rainwater head, fastening systems,polyethylene pipe and the corresponding design software.

7.3) Advantage of system:Compared with the traditional gravity drainage system, the siphon drainage system without slope;less material; the construction are greatly reduced; reduction of pipe diameter;save installation space;pipe has self-cleaning function;design, construction is simple and quick;widely applicable to various purposes buildings.

7.4) Features:1, black PE pipeline uv resistant, ageing resistance, long service life of 50 years.

Application

Application CHUANGRONG HDPE
Siphonic and Conventional rainwater pipes
Trade waste
Concrete embedded pipes
Industrial applications
Pump pressure pipes

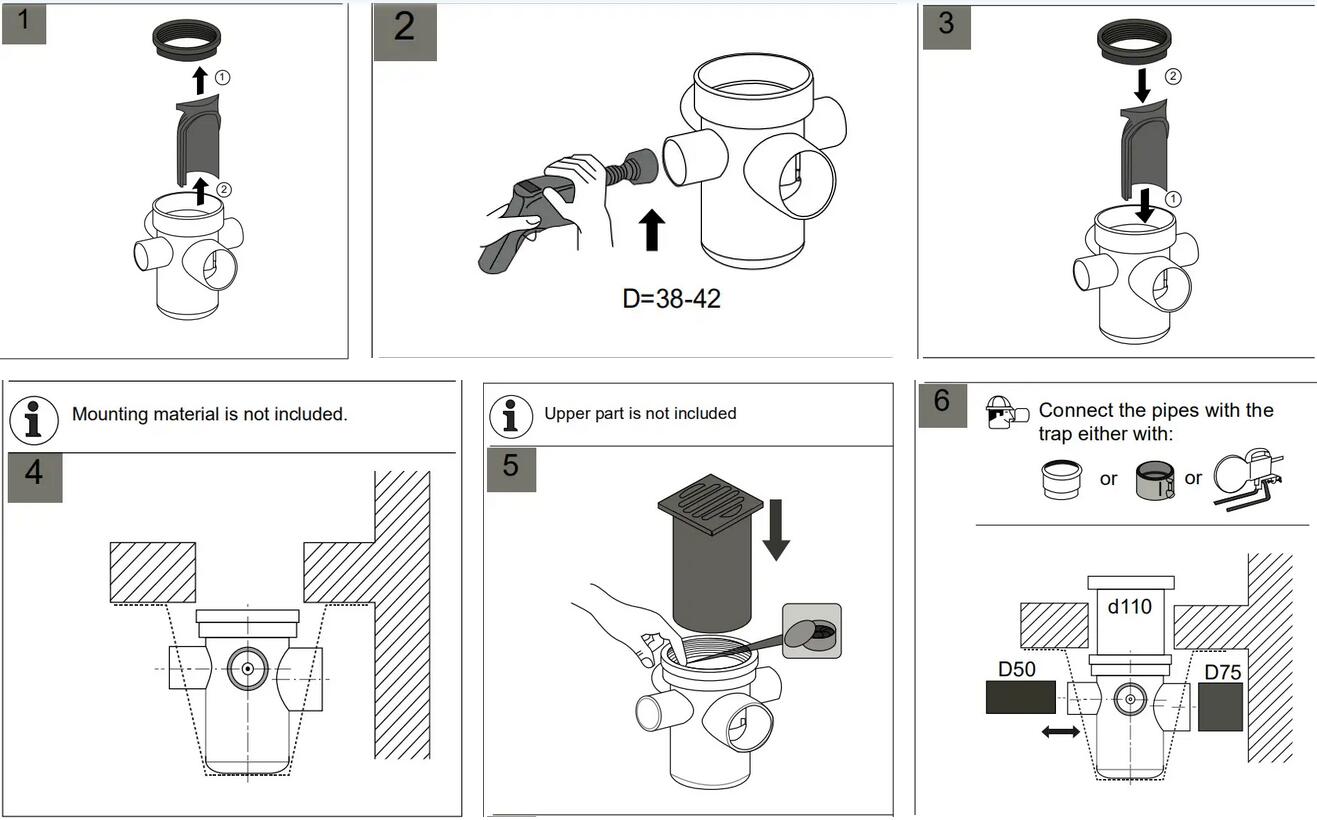

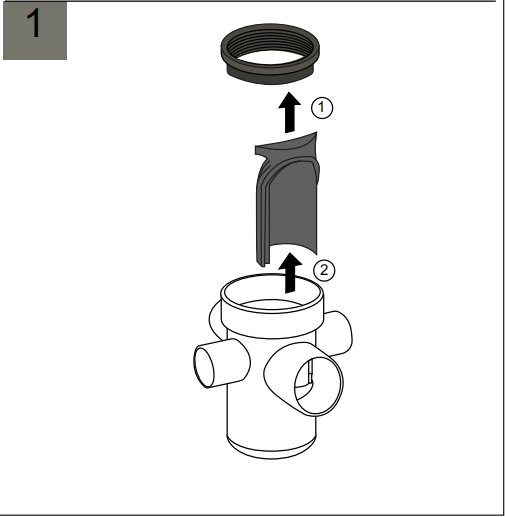

1

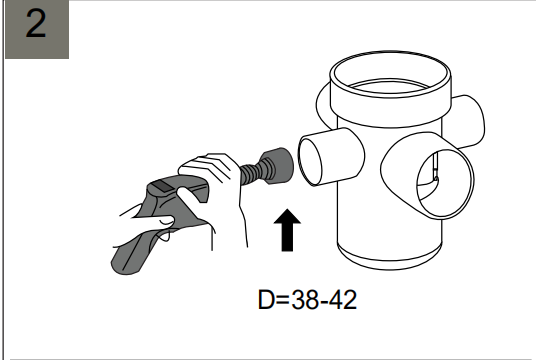

2

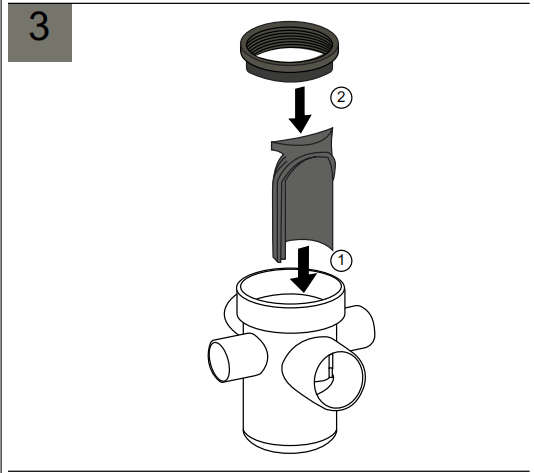

3

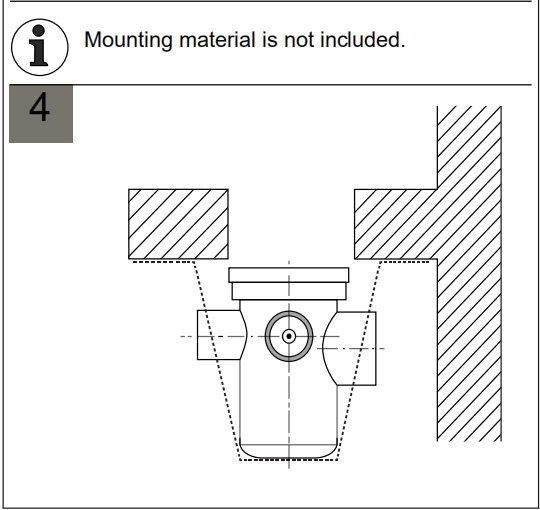

4

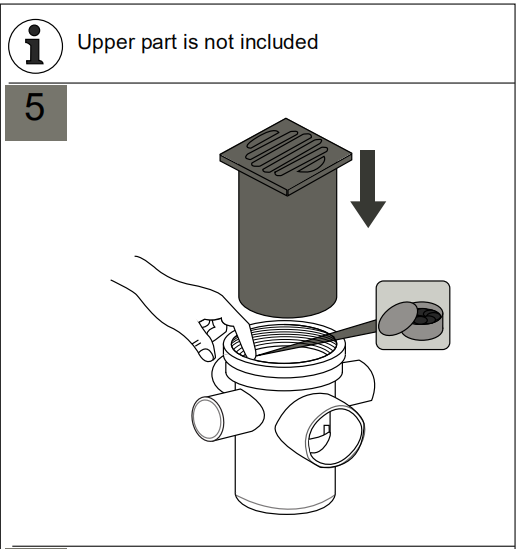

~6OY4_Y5T)RJNNC59I4AID7

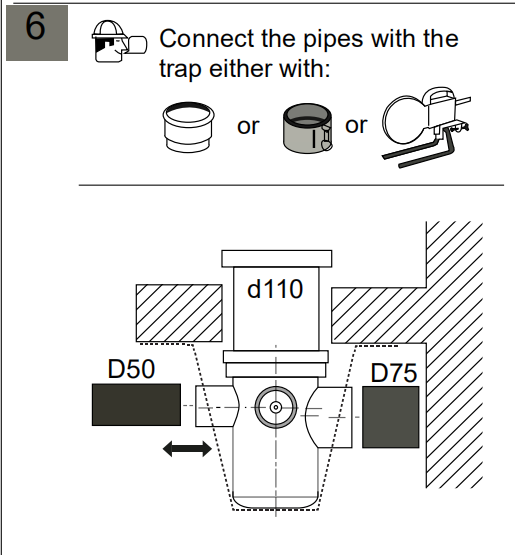

6

Certifications

ISO 9001
WRAS PIPE
