High Impact Resistant Siphonic HDPE 88.5° / 90° Elbow /Bend PN6 50mm-315mm Fittings

Short Description:

Name: 91.5 (88.5) Degree Elbow

Size: 50-315mm

3. Pressure :PE100 SDR26  PN6

4. Standard:   EN1519-1:2019,  ISO 8770:2003

5. Packing:   cartons or bags.

6. Inspection: Raw material inspection. Finished product inspection. Third party inspection upon clients request.

7.  Application :Suitable for a multitude of application ranges in building drainage, roof drainage, in industry, in commercial or laboratory facilities, for placement in the ground, in concrete or in bridge construction.


Product Detail

Product Tags

Detail Information

CHUANGRONG and its affiliated companies specialize in the R&D, production, sale and installation of new-type plastic pipes and fittings. It owned five factories, one of the largest manufacturer and supplier of plastic pipes and fittings in China. Furthermore, the company owns more 100 sets pipe production lines that are advanced at domestic and abroad,200 sets of fitting production equipment. The production capacity reaches more than 100 thousand tons. Its main contain 6 systems of water, gas, dredging, mining, irrigation and electricity, more than 20 series and more than 7000 specifications.



HDPE Siphon Drainage Pipeline  Siphonic HDPE 88.5° / 90° Elbow /Bend

  Type

 Specification

Diameter(mm)

Pressure

HDPE  Syphon Drainage Fittings

Eccentric Reducer

DN56*50-315*250mm

SDR26 PN6

90 Deg Elbow

DN50-315mm

SDR26 PN6

45 Deg Elbow

DN50-315mm

SDR26 PN6

88.5Deg Elbow

DN50-315mm

SDR26 PN6

Lateral Tee(45 Deg Y Tee)

DN50-315 mm

SDR26 PN6

Lateral Tee(45 Deg Y Reducing Tee)

DN63*50-315 *250mm

SDR26 PN6

Expansion Socket

DN50-200mm

SDR26 PN6

Clean -out Hole

DN50-200mm

SDR26 PN6

88.5 Deg Swept Tee

DN50-200mm

SDR26 PN6

90 Deg  Access Tee

DN50-315mm

SDR26 PN6

Double Y Tee

DN110-160mm

SDR26 PN6

P Trap

DN50-110mm

SDR26 PN6

U Trap

DN50-110mm

SDR26 PN6

S Trap

DN50-110mm

SDR26 PN6

Sewage P Trap

DN50-110mm

SDR26 PN6

Cap

DN50-200mm

SDR26 PN6

Anchor Pipe

DN50-315mm

SDR26 PN6

 Floor Drain

 50mm,75mm,110mm

SDR26 PN6

Sovent

110mm

SDR26 PN6

EF Coupler

DN50-315mm

SDR26 PN6

EF Surrounded Coupling

DN50-315mm

SDR26 PN6

EF 45 Deg Elbow

DN50-200mm

SDR26 PN6

EF 90 Deg Elbow

DN50-200mm

SDR26 PN6

EF 45 Deg Y Tee

DN50-200 mm

SDR26 PN6

EF  Access Tee

DN50-20mm

SDR26 PN6

EF Eccentric Reducer

DN75*50-160*110mm

SDR26 PN6

Outlet

56-160mm

SDR26 PN6

Horizotal  Pipe Clamps

DN50-315mm



Triangle Insert

10*15mm



Square Steel Elevator Element

M30*30mm



Square Steel Connecting Element

M30*30mm



Mounting Sheet

M8,M10,M20





Welcome to visit our factory or conduct a third-party audit.

Welcome to contact us for products details and professional service.

Please send email to:  chuangrong@cdchuangrong.com





Product Description

PN6 50mm -315mm HDPE Draining Fittings Siphonic 90 Degree Elbow

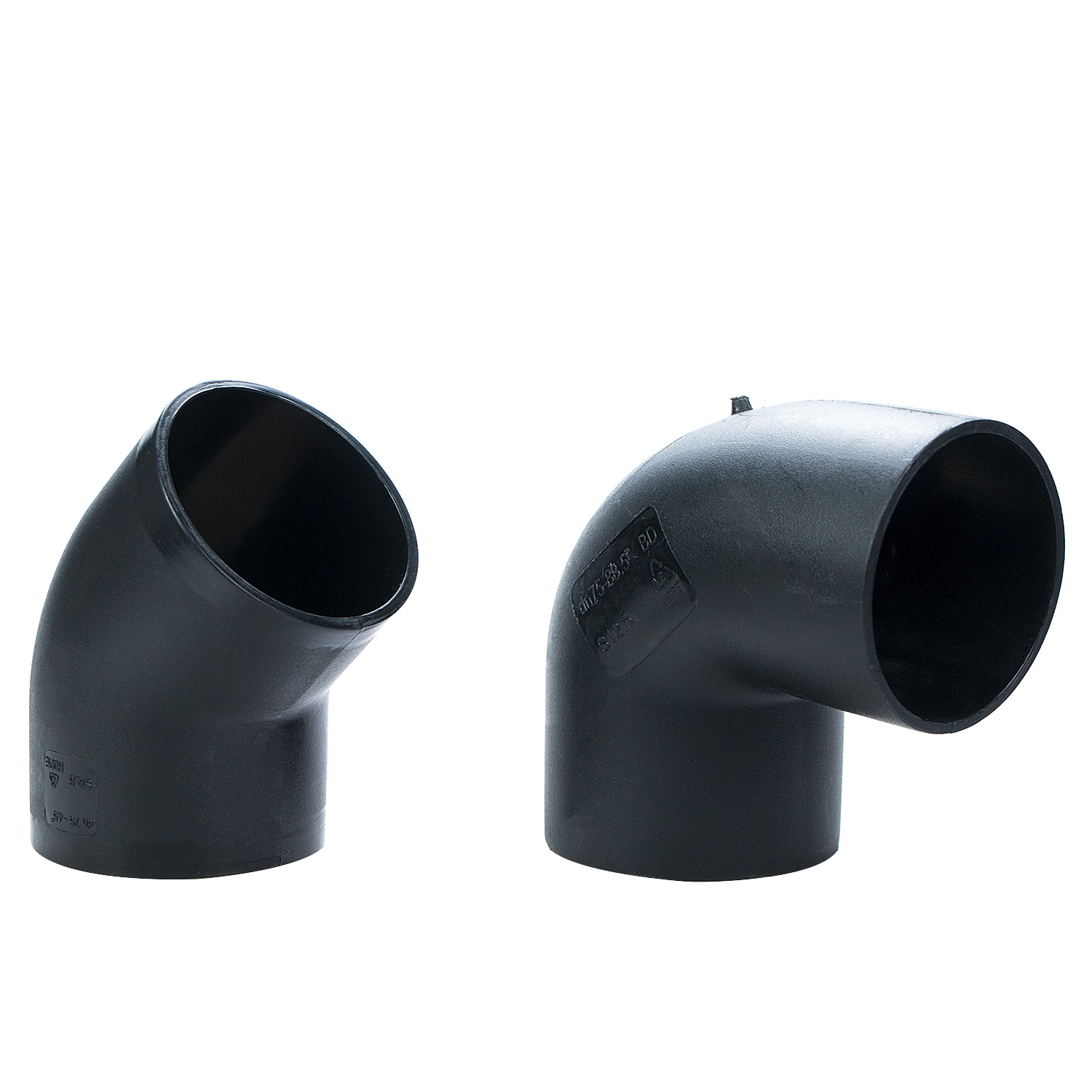

黑色4 (1)

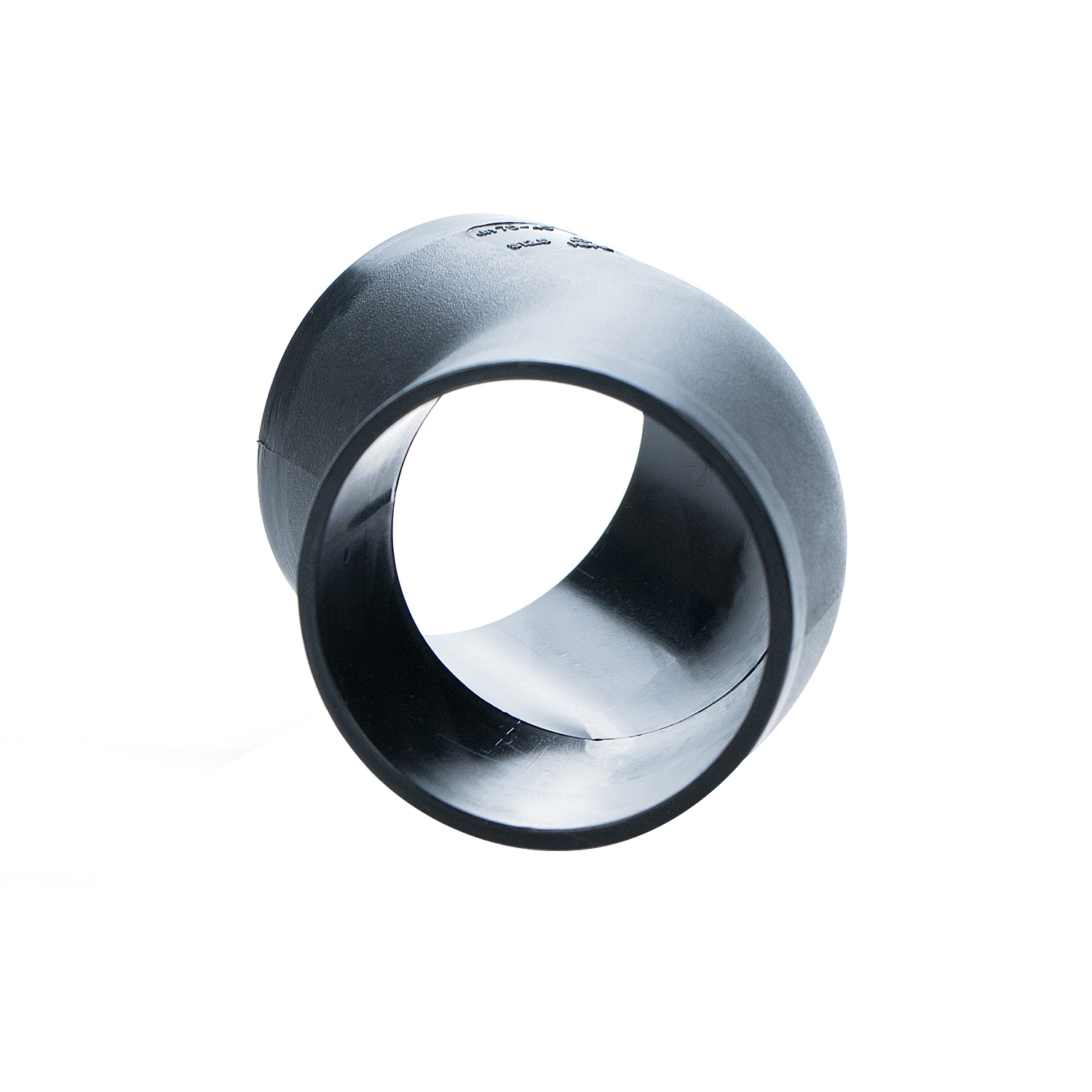

黑色4 (4)

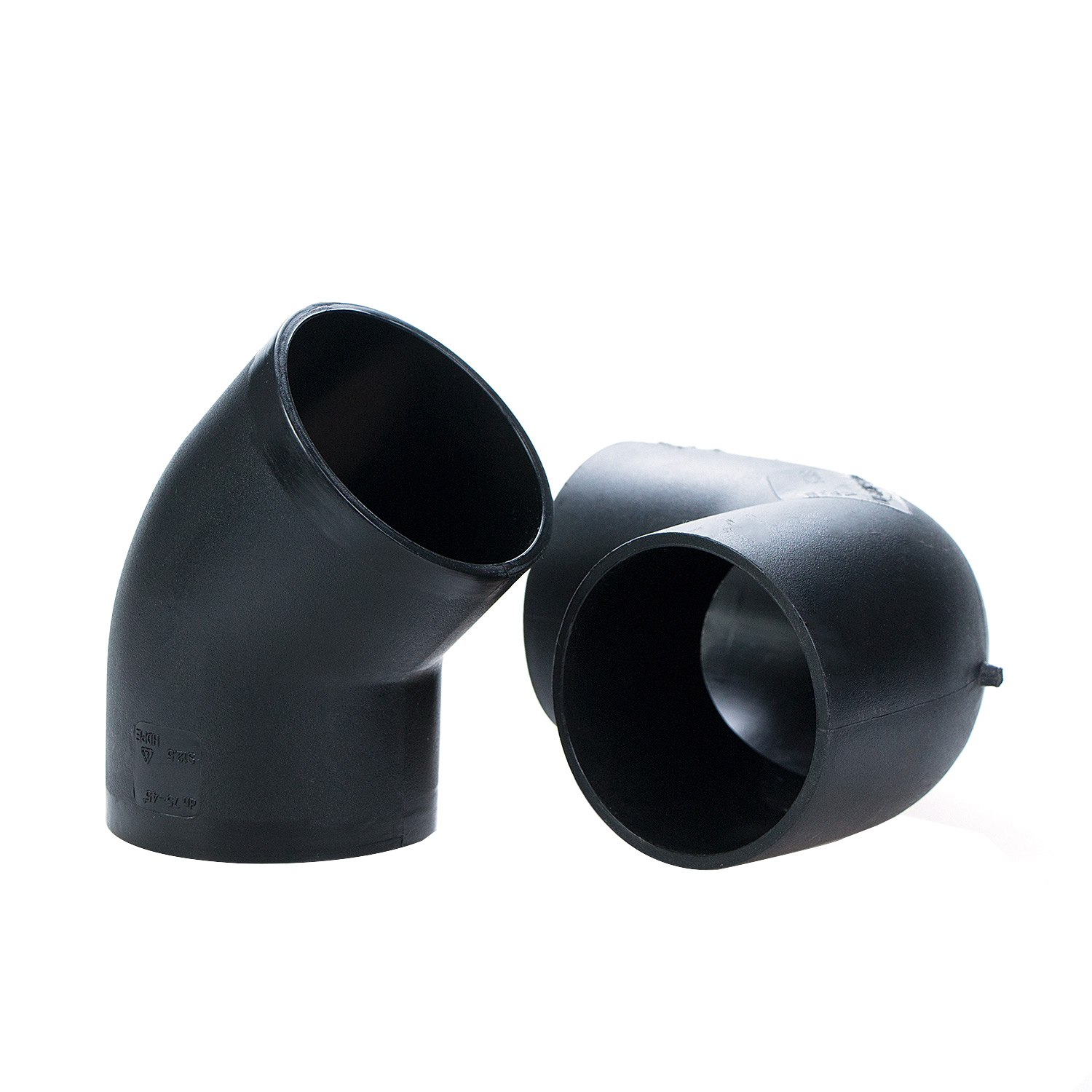

黑色4 (3)
Product Name: PN6 50mm - 315mm HDPE Draining Fittings Siphonic 90 Degree Elbow Application: Drainage,Sewage,Syphonic
Connection: Buttfusion Technics: Injection
Port: China Main Port(Ningbo,Shanghai Or As Required) Certificate: ISO9001-2015, BV ,SGS, CE Etc Certification.

Specification

11

Size (mm)

D (mm)

L (mm)

E Wall Thickness(mm)

50

50 0/+0.5

86 0/+2.5

2.3 0/+0.5

56

56 0/+0.5

90 0/+2.5

2.3 0/+0.5

63

63 0/+0.6

102 0/+2.5

2.4 0/+0.5

75

75 0/+0.7

120 0/+2.5

2.9 0/+0.5

90

90 0/+0.9

128 0/+2.5

3.5 0/+0.6

110

110 0/+1.0

151 0/+2.5

4.2 0/+0.7

125

125 0/+1.2

168 0/+2.5

4.8 0/+0.7

160

160 0/+1.5

195 0/+2.5

6.2 0/+0.9

200

200 0/+1.8

274 0/+2.5

7.7 0/+1.0

250

250 0/+2.3

300 0/+2.5

9.6 0/+1.2

315

315 0/+2.9

369 0/+2.5

12.1 0/+1.5



Visit

CHUANGRONG has an excellent staff team with rich experience. Its principal is Integrity, Professional and Efficient. It has established business relationship with more than 80 countries and zones in relative industry. Such as United States, Chile, Guyana, The United Arab Emirates, Saudi Arabia, Indonesia, Malaysia,Bangladesh, Mongolia, Russia, Africa and so on.





12324843981686415371
IMG_33971

Certifications

CHUANGRONG possesses complete detection methods with all kinds of advanced detection equipment to ensure the quality control in all processes from raw material to finished product. The products are in line with ISO4427/4437, ASTMD3035, EN12201/1555,  DIN8074, AS/NIS4130 standard, and approved by ISO9001-2015, CE, BV, SGS, WRAS.

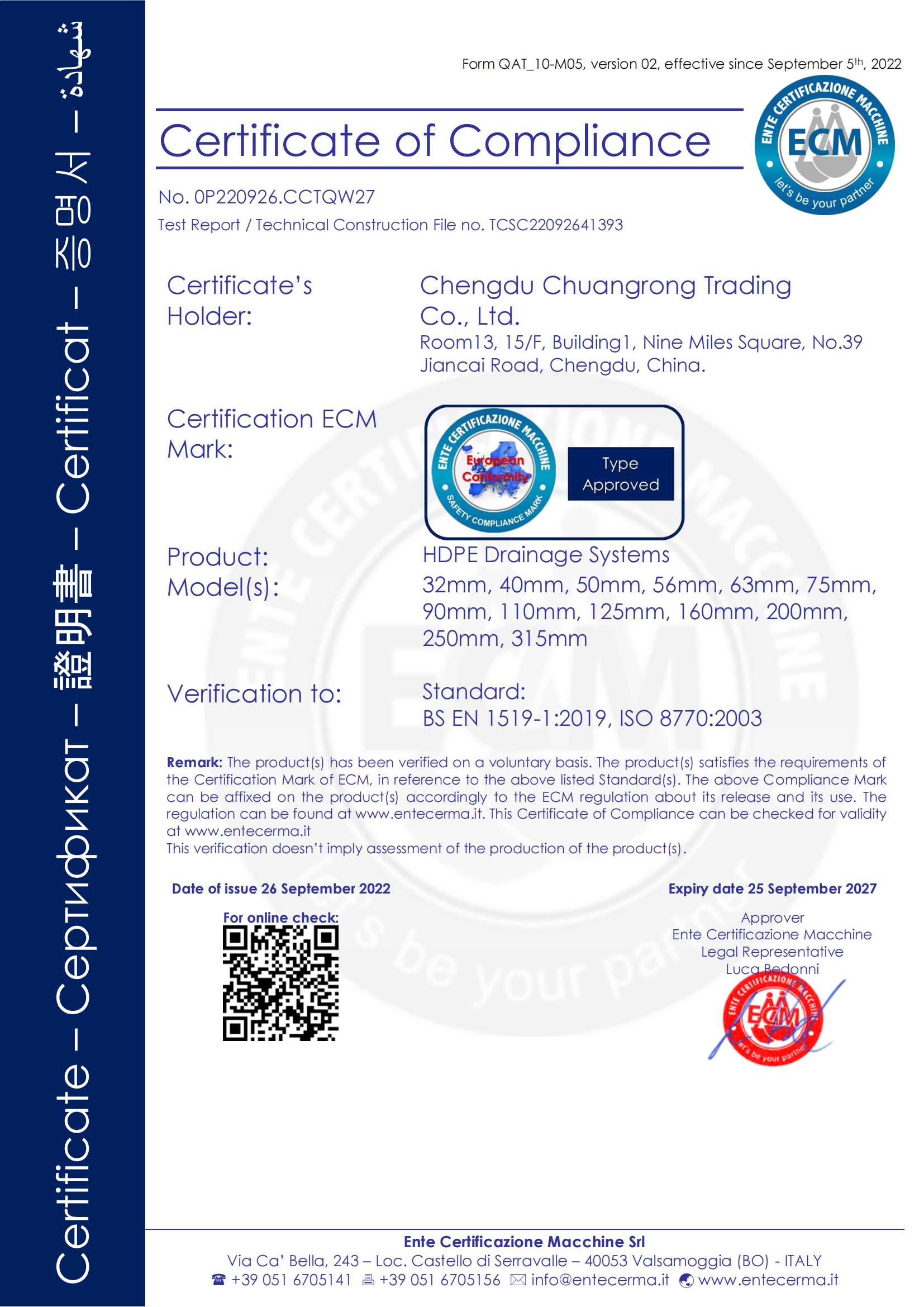

虹吸管件CE证书_00
ISO CERTIFICATE

Application

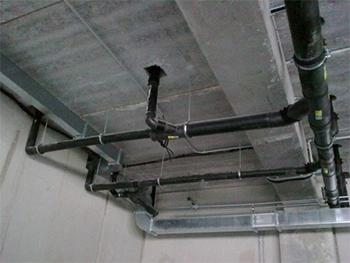

Application CHUANGRONG HDPE

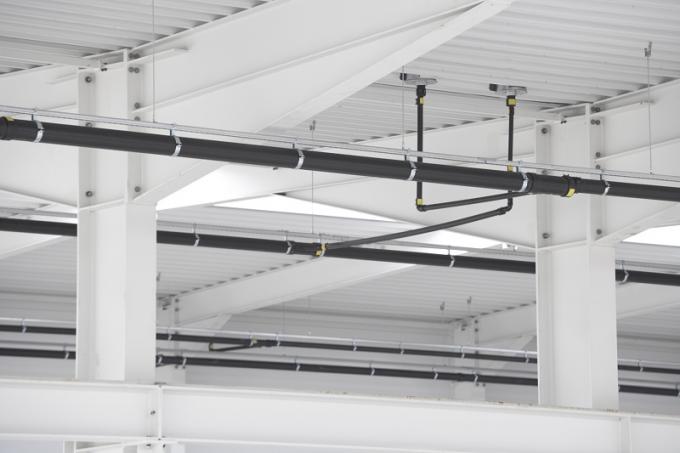

Siphonic and Conventional rainwater pipes
Trade waste
Concrete embedded pipes
Industrial applications
Pump pressure pipes
20191127160442_46836
CHUANGRONG always supplies the best products and price for customers. It gives customers good profit to develop their business with more confidence. If you are interested in our company and products, please do not hesitate to contact us for further information.

Welcome to contact us for products details and professional service.

Please send email to:  chuangrong@cdchuangrong.com  or Tel: + 86-28-84319855
