Dresser flanged Dismantling joint PN10 / PN16 / PN25 / PN40 for Valves

Short Description:

1. Provides easy installation and disassembly of flanged equipment

2. Working pressure PN10/16/25/40

3. Maximum temperature -10°C to +70°C

4.  Suitable to portable water, neutral liquids and sewage

5. Standards:Flange: EN1092-2, Coating: EN30677, Test: EN12266-1


Product Detail

Specification

Certifications

Product Tags

CHUANGRONG is a share industry and trade integrated company, established in 2005 which focused on the production of HDPE Pipes, Fittings & Valves, PPR Pipes, Fittings & Valves, PP compression fittings & Valves, and sale of Plastic Pipe Welding machines, Pipe Tools, Pipe Repair Clamp and so on.





 Dresser flanged Dismantling joint PN10 / PN16 / PN25 / PN40 for Valves

Detail Information

Connection: Flange  Name:       Dismantling Joint
Application: Protable water, neutral liquids and sewage Certificate: ISO 9001:2008/CE/SGS/
Features: Corrosion resistant constructionStuds are located on every flange hole

Tie rods are required from the upstream to downstream sides

of the pipe equipment installation

Options: Flange driling with BS or ANSI standardGD8.8, Stainless steel ,dacromet bolt

Various coating

Seal : NBR etc

Product Description

Material

Body:
Ductile iron grade 500-7/ 450-10 in accordance with ISO 1083 or 70-50-05/65-45-12 with ASTM A536

Gland:
Ductile iron grade 500-7/ 450-10 in accordance with ISO 1083 or 70-50-05/65-45-12 with ASTM A536

Gasket:
Rubber E. P. D. M. /SBR/NR in accordance with EN 681.1

T-BOLTS AND NUTS:
Carbon steel grade 8.8/6.8/4.8 with dacromet coating/galvanization



Self-restrained dismantling joints

1.Used to facilitate the dismantling or the reassembly of a flanged piece of equipment on a pipeline, and adjustable in length with considerable travel.

2.Simplify maintenance operations because the connection is self-anchored and there is no need for concrete anchor blocks.

Dismantling joint for flanged butterfly valve

1.Facilitates dismantling and reassembly in situ on the pipeline when bracketed to a flanged valve while guaranteeing continued mechanical resistance.

2.The substantial adjustable travel of these products means the “face to face” tolerances of the equipment to be installed is no longer a concern.

3.Makes placing joint rings between flanges easier, even those with inserts 4.Available from DN 40 to DN 2000, with PFAs of 10, 16 and 25 bar

Dismantling joint for butterfly valve without flanges

1.Maximum adjustable travel of 50 mm when bracketed to butterfly valves without flanges.

2.Available from DN 40 to DN 1200, with PFAs of 10 and 16 bar.

CHUANGRONG has an excellent staff team with rich experience. Its principal is Integrity, Professional and Efficient. It has established business relationship with more than 80 countries and zones in relative industry. Such as United States, Chile, Guyana, The United Arab Emirates, Saudi Arabia, Indonesia, Malaysia,Bangladesh, Mongolia, Russia, Africa and so on.



If you have any questions, you can feel free to contact us  in  anytime .

Welcome to contact us for products details and professional service.

Please send email to:  chuangrong@cdchuangrong.com  or Tel: + 86-28-84319855






  • Previous:
  • Next:

  • dresser

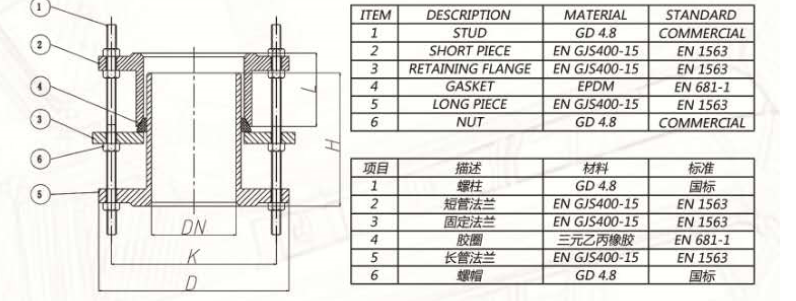

    PN10 PN16 PN25
    DN L D K H STUD L D K H STUD L D K H STUD
    40 180 150 110 330 M16X4 180 150 110 330 M16X4 190 150 110 340 M16X4
    50 180 165 125 330 M16X4 180 165 125 330 M16X4 200 165 125 350 M16X4
    65 180 185 145 330 M16X4 180 185 145 330 M16X4 200 185 145 350 M16X8
    80 200 200 160 350 M16X8 200 200 160 350 M16X8 210 200 160 360 M16X8
    100 200 220 180 350 M16X8 200 220 180 350 M16X8 220 235 190 370 M20X8
    125 200 250 210 350 M16X8 200 250 210 350 M16X8 220 270 220 380 M24X8
    150 200 285 240 350 M20X8 200 285 240 350 M20X8 230 300 250 390 M24X8
    200 220 340 295 380 M20X8 220 340 295 380 M20X12 230 360 310 400 M24X8
    250 220 400 350 380 M20X12 230 400 355 400 M24X12 250 425 370 430 M27X12
    300 220 455 400 390 M20X12 250 455 410 420 M20X12 250 485 430 440 M27X16
    350 230 505 460 400 M20X16 260 520 470 440 M24X16 270 555 490 470 M30X16
    400 230 565 515 410 M24X16 270 580 525 460 M27X16 280 620 550 490 M33X16
    450 250 615 565 430 M24X20 270 640 585 470 M27X20 280 670 600 490 M33X20
    500 260 670 620 450 M24X20 280 715 650 490 M30X20 300 730 660 520 M33X20
    600 260 780 725 460 M27X20 300 840 770 520 M33X20 320 845 770 560 M36X20
    700 260 895 840 460 M27X24 300 910 840 520 M33X24 340 960 875 590 M39X24
    800 290 1010 950 500 M30X24 320 1025 950 550 M36X24 360 1085 990 630 M45X24
    900 290 1115 1050 500 M30X28 320 1125 1050 560 M36X28 380 1185 1090 660 M45X28
    1000 290 1230 1160 510 M33X28 340 1255 1170 600 M39X28 400 1320 1210 690 M52X28
    1200 320 1455 1380 570 M36X32 360 1485 1390 650 M45X32 450 1530 1420 780 M52X32

    1. Wood box
