Size In 20X1/2′- 40X1′ Female Thread Tee Brass PPR Pipe Fittings

Short Description:

1. Name: PPR pipe fitting Female Brass

2.Material: Korea Hyosung
3. Size: 20-110mm
4.Color: Green,Gray,White
5. Working Pressure: 25bar (PN25 2.5Mpa)
6. Work temperature: -20℃-110℃
7. Application: Water Delivery,Water Drainage




Product Detail

Product Tags

Detail Information

Type: Female Tee Material: 100% Ppr Raw Material
Technics: Casting Connection: Female
Size: 20*1/2” and 40*1” Production Temperature: -40 – +95°C

Product Description


20X1/2′- 40X1′ Female Thread Tee Brass PPR Pipe Fittings

PPR Female is made from recyclable raw materials and the insert is made of brass. High temperature resistance, corrosion resistance, oxidation resistance, is an important accessory for connecting pipes

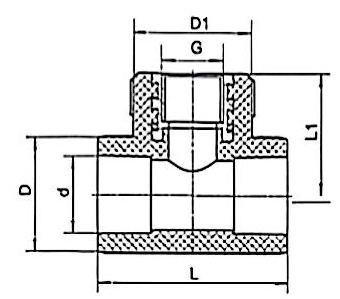

Description

d

G

D

D1

L

L1

L2

dn20x1/2"x20

20

1/2"

29

40

56

36

\

dn20x3/4"x20

20

3/4"

29

45

66

36

\

  dn20x3/8"x20

20

3/8"

28

33

50

30

\

dn25x1/2"x25

25

1/2"

36

40

64

38

\

dn25x3/4"x25

25

3/4"

36

45

70

41

\

dn25x3/8"x25

25

3/8"

36

40

64

36

\

1/2"xdn32x32

32

1/2"

43

40

77

37

\

 dn32x1/2"x32

32

1/2"

43

40

68

40

\

dn32x3/4"x32

32

3/4"

43

45

74

42

\

dn32x1"x32

32

1"

45

59

82

45

58

dn40x1/2"x40

40

1/2"

57

40

86

49

\

dn40x3/4"x40

40

3/4"

57

45

86

49

\

 dn40x1"x40

40

1"

57

59

86

65

78



Advantage

Nonpoisonous and harmless:

PP-R belongs to polyolefin, which is a kind of thermo-plastics, whose molecule is only composed of carbon and hydrogen. And the sanitary property of the materials for VASEN PP-R pipes and fittings has been certificated by national authority organization.

Good thermal and sound insulation property:

The thermal conductivity coeffcient of PP-R is 0.23w/m,which is only 1/200 of steel pipe (43-52w/m). No need to use insulating materials when used in hot water systems,which saves insulation materials and energy. And it has lower noise when water delivery in pipeline system.

Better water passing capacity:

The smooth inner surface of PP-R pipes and fittings have lower friction, which ensure fast running of the water.

Environment-friendly building material:

During production, installation and application, no pollution will be caused to the environment.Meanwhile,the materials are recyclable, which can minimize resource wasting.
