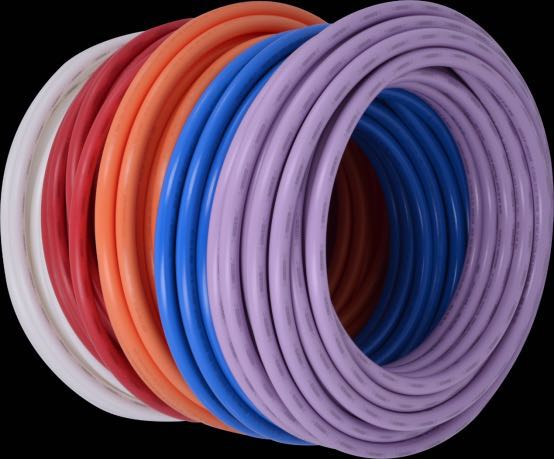

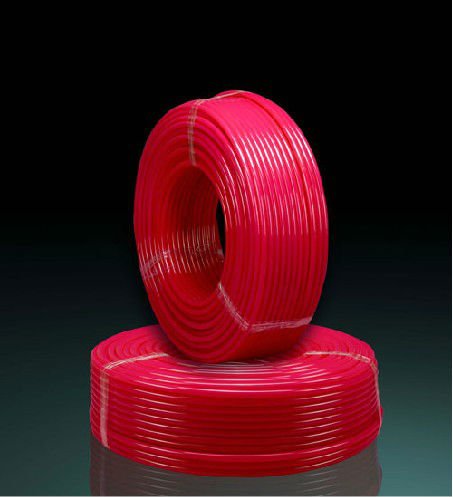

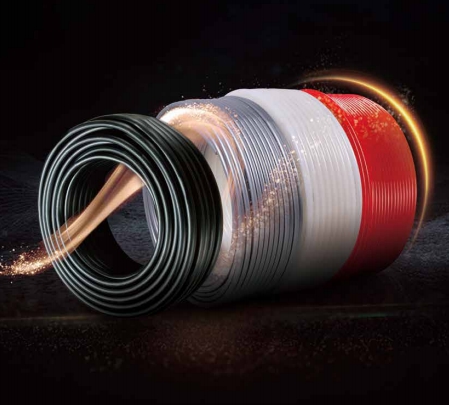

PEX Pipe and Fittings For Potable Water With Green / White / Blue / Orange Color
Basic Information
|
em
|
multilayer non-toxic EVOH PEX oxygen barrier pipe with brass fittings for water supply
|
|
Material
|
PE
|
|
Specification
|
16-32mm
|
|
Length
|
100-300 m/roll
|
|
Thickness
|
2.0-4.4mm
|
|
Standard
|
DIN4726
|
|
Processing Service
|
Moulding
|
|
Product name
|
PEX Pipe
|
|
Color
|
White/blue/red/customed
|
|
Application
|
Conveying Water
|
|
Feature
|
Non-toxic
|
|
Certification
|
DIN
|
|
Connection
|
Brass Fittings
|
|
Raw material
|
HDPE
|
|
Sample
|
Availiable
|
|
Package
|
Plastic Film Package
|
|
MOQ
|
10000 Meters
|
Product Description
PEX-a (cross-linked polyethylene) pipes are made of high density polyethylene (HDPE) from LG chemical company. Our PE-Xa pipe has excellent chemical, corrosion, temperature and pressure resistance.Meanwhile it has achieved an average 83% of cross-linking degree during the manufacturing process, which is higher than the average degree in this sector.Ritable PE-Xa pipe has been exported to many countries and recognized by more and more user all over the world.
Specificaion
|
DN/mm |
Average limit deviation |
S5 |
S4 |
||
|
Wall thickness (mm) |
Limit deviation |
Wall thickness (mm) |
Limit deviation |
||
|
16 |
+0.3 |
1.8 |
+0.3 |
2.0 |
+0.3 |
|
20 |
+0.3 |
1.9 |
+0.3 |
2.3 |
+0.3 |
|
25 |
+0.3 |
2.3 |
+0.4 |
2.8 |
+0.4 |
|
32 |
+0.3 |
2.9 |
+0.4 |
3.6 |
+0.5 |
|
40 |
+0.4 |
3.7 |
+0.5 |
4.5 |
+0.6 |
|
50 |
+0.5 |
4.6 |
+0.6 |
5.6 |
+0.7 |
|
63 |
+0.6 |
5.8 |
+0.7 |
7.1 |
+0.9 |
- 1. The producing of PEX-a pipe is strictly comply with ISO 15875
2. High flexibility ,be easy bent and curved at low temperature
3. Temperature resistance: usable range -20℃-95℃
4. Good thermal memory
5. Pressure Resistance: up to the highest pressure standard of China floor heating system
Application

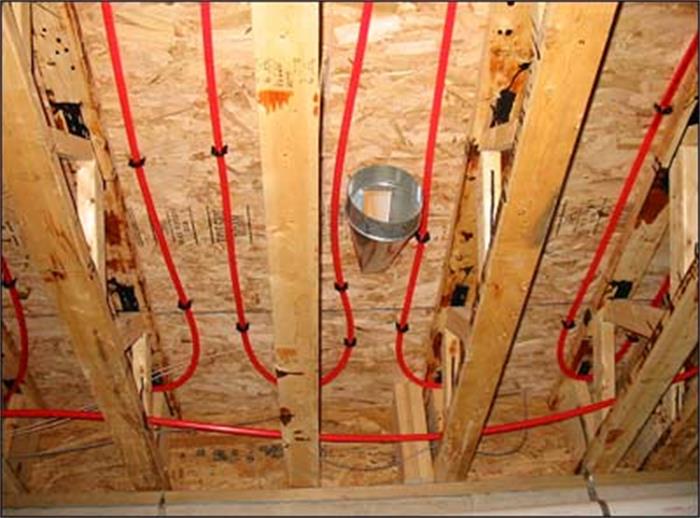

1. Cold and hot water system for buildings.
2.Air-condition system and sewage treatment system.
3. Concentration heating system in the residential houses

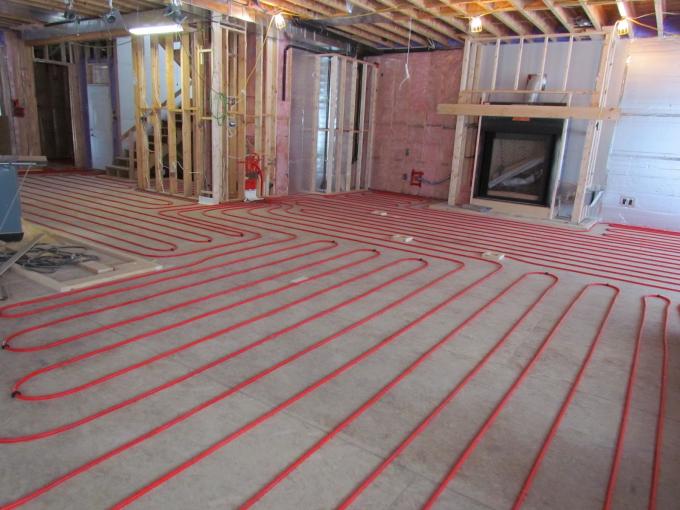

4. Floor radiant heating system and snow melting system of airport and traffic network.
CHUANGRONG is a share industry and trade integrated company, established in 2005 which focused on the production of HDPE Pipes, Fittings & Valves, PPR Pipes, Fittings & Valves, PP compression fittings & Valves, and sale of Plastic Pipe Welding machines, Pipe Tools, Pipe Repair Clamp and so on.
CHUANGRONG has an excellent staff team with rich experience. Its principal is Integrity, Professional and Efficient. It has established business relationship with more than 80 countries and zones in relative industry. Such as United States, Chile, Guyana, The United Arab Emirates, Saudi Arabia, Indonesia, Malaysia,Bangladesh, Mongolia, Russia, Africa and so on.
Welcome to contact us for products details and professional service.
Please send email to: chuangrong@cdchuangrong.com or Tel: + 86-28-84319855
