Polyetylene Electrofusion Tapping Saddle Tee for HDPE Water or Gas Pipe

Short Description:

1. Name: EF Multiseal Tapping Tee

2. Size: dn63-315mm

3. Pressure : PE100 SDR11 Water PN16 or Gas 10 Bar

4. Standard :ISO4427 , EN12201/ ISO4437, EN1555

5. Delivery: 3-7 Days, Quick Deliery.

6. Product inspection: Raw material inspection. Finished product inspection. Third party inspection upon clients request.

Send email to us Send email

Product Detail

Product Tags

Detail Information

CHUANGRONG is a share industry and trade integrated company, established in 2005 which focused on the production of HDPE Pipes, Fittings & Valves, PPR Pipes, Fittings & Valves, PP compression fittings & Valves, and sale of Plastic Pipe Welding machines, Pipe Tools, Pipe Repair Clamp and so on.

CHUANGRONG can provide high quality HDPE Electrofusion Fittings for Water,Gas and Oil DN20-1200mm, SDR17, SDR11, SDR9 with bar code at competitive price.

Polyetylene Electrofusion Tapping Saddle Tee for HDPE Water or Gas Pipe

Fittings Type	Specification	Diameter(mm)	Pressure
HDPE Electrofusion Fittings	EF Coupler	DN20-1400mm	SDR17, SDR11 SDR9(50-400MM)
	EF Reducer	DN20-1200mm	SDR17, SDR11 SDR9(50-400MM)
	EF 45 deg elbow	DN50-1000mm	SDR17, SDR11 SDR9(50-400MM)
	EF 90 deg elbow	DN25-1000mm	SDR17, SDR11 SDR9(50-400MM)
	EF Tee	DN20-800mm	SDR17, SDR11 SDR9(50-400MM)
	EF Reducing Tee	DN20-800mm	SDR17, SDR11 SDR9(50-400MM)
	EF End Cap	DN50-400mm	SDR17, SDR11 SDR9(50-400MM)
	EF Stub End	DN50-1000mm	SDR17, SDR11 SDR9(50-400MM)
	EF Branch Saddle	DN63-1600mm	SDR17, SDR11
	EF Tapping Saddle	DN63-400mm	SDR17, SDR11
	EF Repair Saddle	DN90-315mm	SDR17, SDR11

Welcome to visit our factory or conduct a third-party audit.

Welcome to contact us for products details and professional service.

Please send email to: chuangrong@cdchuangrong.com

Product Description

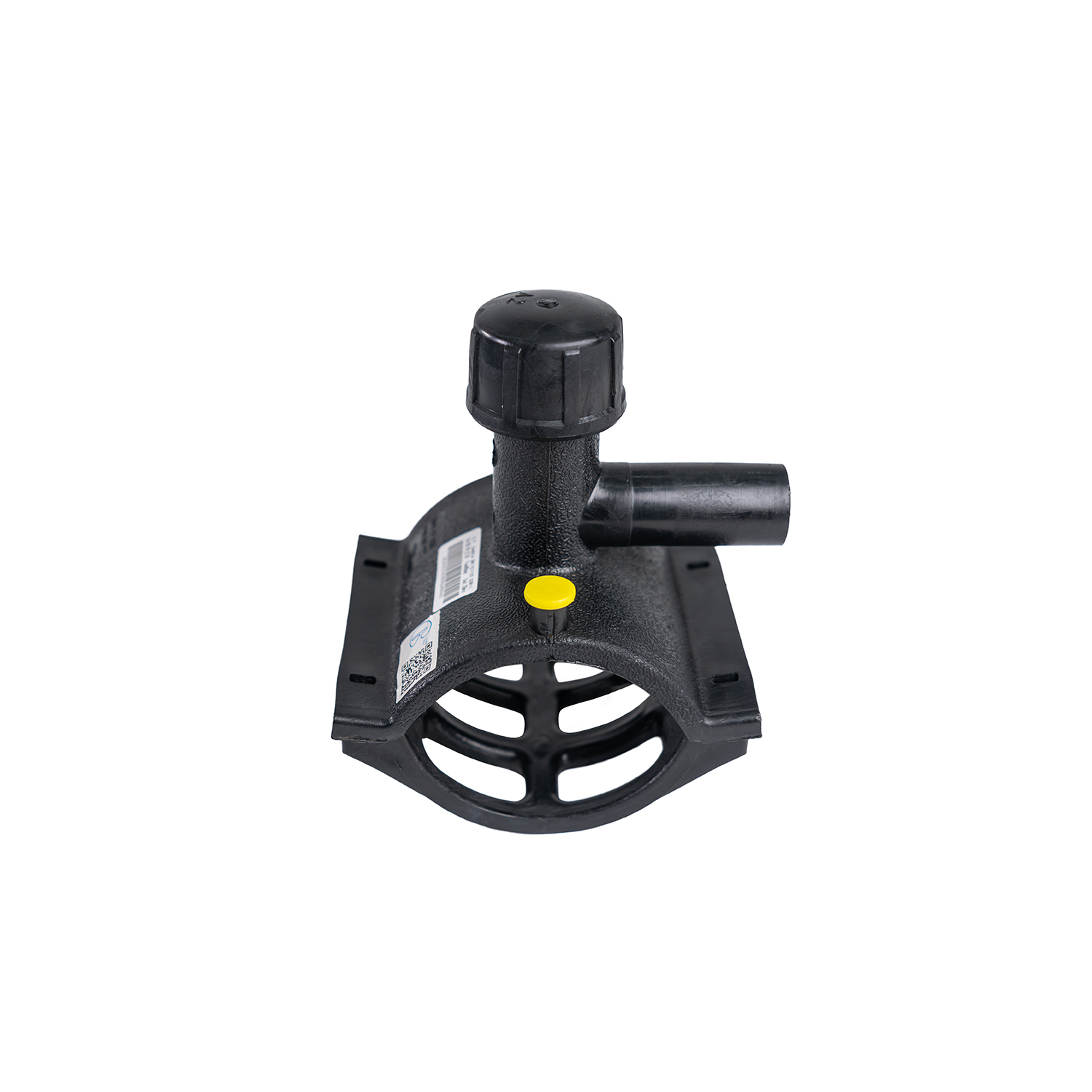

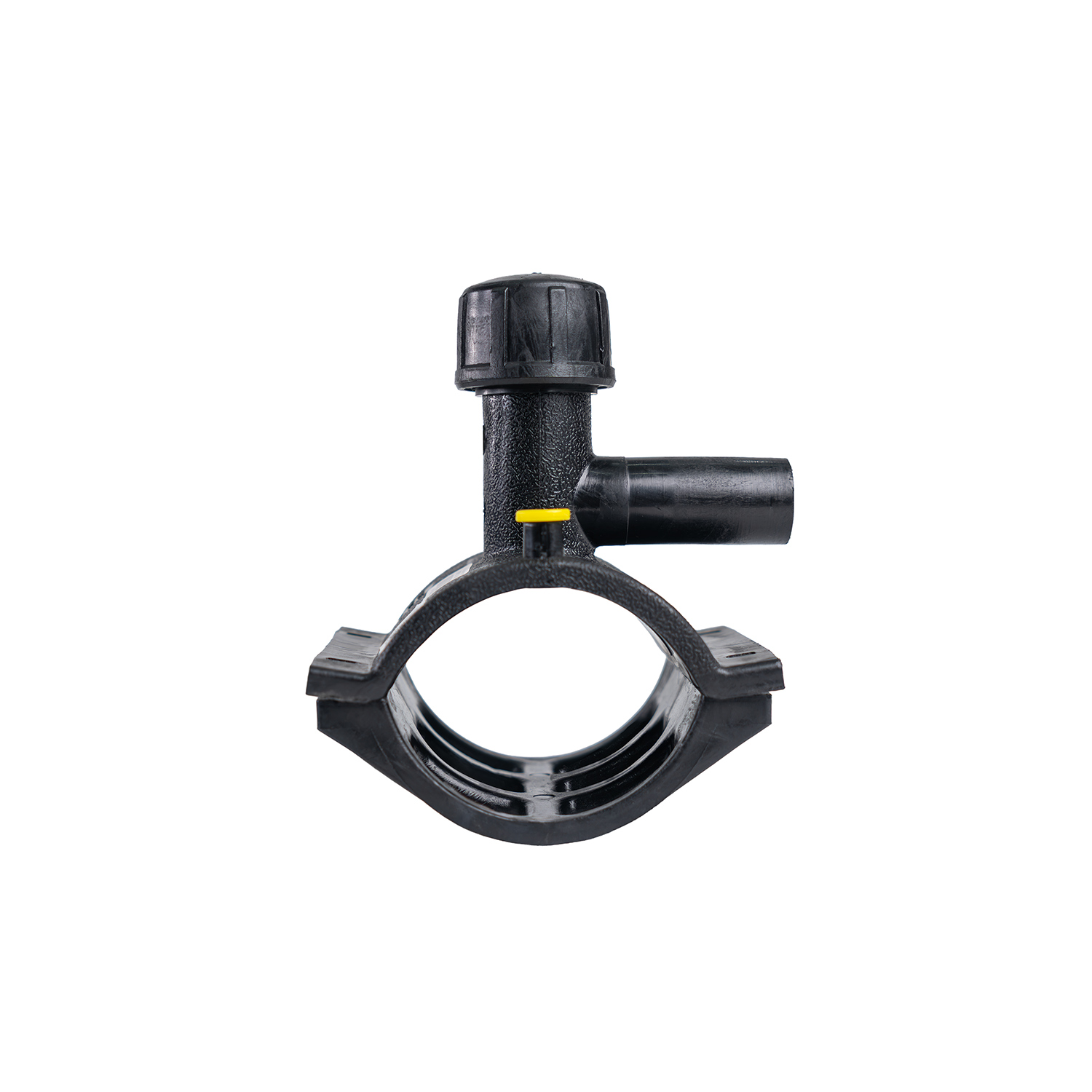

Polyetylene Electrofusion Tapping Saddle Tee for HDPE Water or Gas Pipe

1. Electrofusion HDPE fittings are welded by electrofusion machine to connect HDPE pipes together.

2. After electrofusion welding machine plug in electricity and turn on, The copper wire buried inserted in electric fuse.

3. HDPE fittings are heated and make HDPE melt, Which joint HDPE pipe and fittings well.

Products name	Electrofusion HDPE Tapping Tee Saddle
Sizes Available	As below specification sheet in detail
SDR	SDR11
PN	PN16
Material Brand	SINOPEC, BASELL, SABIC, BOROUGE etc
Executive Standard	EN 1555-3:2010
Colors Available	Black color or as request.
Packing Method	Normal export packing. by carton
Production Lead Time	Depending on the order quantity. Normally about 2~3 weeks for 20' GP, 3~4 Weeks for a 40'GP.
Certificate	ISO, CE,BV,Factory Test Report
Supply Ability	100000 Ton/Year
Payment Method	T/T, L/C at sight
Trading Method	EXW, FOB, CFR, CIF,DDU

Specification

specifications φD×φD1	L mm	A mm	B mm	H mm	φd mm
63×20	115	104	52	122	4.7
63×25	115	104	52	122	4.7
63×32	115	104	52	122	4.7
75×20	115	104	52	122	4.7
75×25	115	104	52	122	4.7
75×32	115	104	65	122	4.7
90×20	130	143	56	145	4.7
90×25	130	143	56	145	4.7
90×32	130	143	56	185	4.7
90×63	140	140	85	185	4.7
110×20	130	155	55	145	4.7
110×25	130	155	55	145	4.7
110×32	130	155	55	145	4.7
110×40	145	160	63	180	4.7
110×50	145	160	61	177	4.7
110×63	145	160	75	175	4.7
125×25	130	155	55	145	4.7
125×63	140	155	75	200	4.7
160×25	142	199	66	169	4.7
160×32	142	197	72	169	4.7
160×50	190	240	85	235	4.7
160×63	190	240	85	235	4.7
160×90	190	240	125	235	4.7
180×25	142	199	66	169	4.7
200×63	190	255	85	235	4.7
200×90	190	255	65	235	4.7
225×32	193	255	85	235	4.7
225×63	190	255	85	235	4.7
225×90	190	255	120	235	4.7
250×63	190	305	85	250	4.7
250×90	190	305	118	250	4.7
280×63	190	305	91	250	4.7
280×90	190	305	118	250	4.7
315×63	190	315	85	250	4.7
315×90	190	315	155	250	4.7

Applications

1. Municipal water supply, gas supply and agriculture etc.
2. Commercial & Residential water supply
3. Industrial liquids transportation
4. Sewage treatment
5. Food and chemical industry
6. Replacement of cement pipes and steel pipes
7. Argillaceous silt, mud transportation
8. Garden green pipe networks

Factory & Test report

CHUANGRONG and its affiliated companies specialize in the R&D, production, sale and installation of new-type plastic pipes and fittings. It owned five factories, one of the largest manufacturer and supplier of plastic pipes and fittings in China. Furthermore, the company owns more 100 sets pipe production lines that are advanced at domestic and abroad,200 sets of fitting production equipment. The production capacity reaches more than 100 thousand tons. Its main contain 6 systems of water, gas, dredging, mining, irrigation and electricity, more than 20 series and more than 7000 specifications.

Test item	Standard	Conditions	Results	Unit
1.Melt Flow Index	ISO1133	190°C & 5.0Kg 0.2-0.7	0.49	g/10min
2.Density	ISO1183	@23°C ≥0.95	0.960	g/cm3
3.Oxidation Induction Time	ISO11357	210°C >20	39	Min
4. Hydrostatic Pressure Test	ISO1167	80°C 165h, 5.4Mpa	Passed
5 Size Check	ISO3126	23°C	Passed
6 Appearance	Clean& Smooth	23°C	Passed

The results according to test 1-3 are taken form the PE raw material supplier’s report.
The results according to test 4-6 are taken from the internal test results of fittings sampled from the same batch as delivered fittings.
Marking according EN 12201 – 3 and EN 1555 – 3.
The pass/fail criteria are based on the requirements of the UNI EN 12201 and UNI EN 1555 standard.

Certifications

We can supply ISO9001-2015, BV ,SGS, CE etc certification.
All kinds of products are regularly conducted pressure-tight blasting test,longitudinal shrinkage rate test, quick stress crack resistance test, tensile test and melt index test, so as to ensure the quality of products totally reach the relevant standards from raw materials to finished products.

CHUANGRONG always supplies the best products and price for customers. It gives customers good profit to develop their business with more confidence. If you are interested in our company and products, please do not hesitate to contact us for further information.

Welcome to contact us for products details and professional service.

Please send email to: chuangrong@cdchuangrong.com or Tel: + 86-28-84319855
