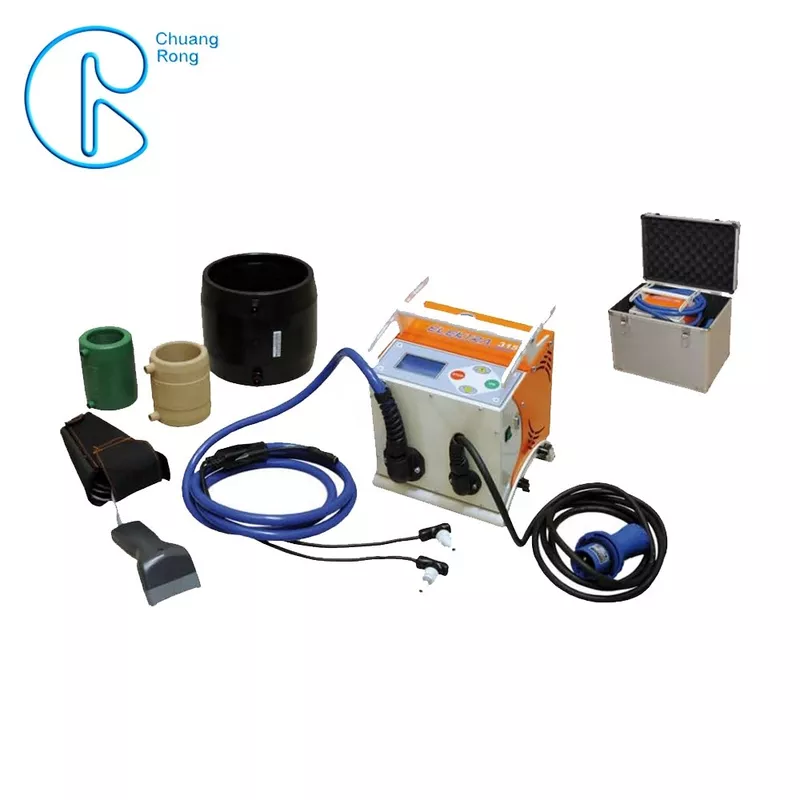

ELEKTRA 315 Electrofusion Welding Machine for High-Integrity Ocean Outfall HDPE Pipe Joints

Learn More →

Y Branch Pipe Fitting For Marine Outfall Systems: Industrial Status & Engineering Guide

Marine outfall systems represent the frontier of coastal environmental engineering. These systems are designed to safely discharge treated municipal wastewater, industrial effluents, and brine from desalination plants into deep marine waters. The primary objective is to utilize the natural dilution and assimilation capacity of the ocean without harming the local marine ecosystem. At the heart of these complex underwater pipeline networks lies the Y Branch Pipe Fitting For Marine Outfall Systems.

⚙️

Critical Hydraulic Flow Splitting

Y-branch pipe fittings, also known as lateral wyes, are essential for splitting or merging fluid streams within the outfall diffuser manifold. Unlike standard 90-degree tees, a Y-branch fitting (typically designed at 45 or 60 degrees) reduces turbulence, minimizes hydraulic head loss, and prevents sediment accumulation within the discharge ports.

Global Commercial & Industrial Status

The global market for marine outfall systems is expanding rapidly, driven by urbanization in coastal regions, stringent environmental regulations, and the growth of seawater desalination facilities. Governments and municipal authorities globally are mandating longer outfall pipelines that reach deeper waters to protect recreational beaches and nearshore ecosystems.

Consequently, the demand for large-diameter HDPE (High-Density Polyethylene) pipes and custom-fabricated fittings has surged. HDPE has become the material of choice due to its flexibility, corrosion resistance, and ease of installation in marine environments. The fabrication of Y-branch fittings, which must withstand external hydrostatic pressure, internal surges, and dynamic marine currents, has evolved into a highly specialized engineering segment. Today, manufacturers must adhere to strict international standards such as ISO 4427, ASTM D3035, and EN 12201 to ensure these fittings perform reliably for their 50-to-100-year design life.

Deep Application Analysis: Fluid Dynamics and Structural Integrity

In marine outfall systems, the design of the diffuser manifold is critical to achieving high dilution ratios. The diffuser consists of a series of ports or nozzles branching off the main pipeline. This is where the Y-branch pipe fitting plays its most critical role.

1. Minimizing Head Loss and Energy Consumption: In gravity-fed outfall systems, hydraulic head is limited. Every pascal of pressure lost due to friction or turbulence reduces the system's capacity. Y-branches facilitate a smoother transition of fluid flow compared to standard tees. The angled branch reduces the separation of flow boundary layers, thereby minimizing localized head loss and maximizing discharge efficiency.

2. Preventing Marine Sedimentation: Marine outfalls operate in dynamic environments where tides and currents can push suspended sand and silt into the pipeline. The streamlined flow path of a Y-branch prevents low-velocity zones within the fitting where sediments could settle and eventually block the pipe.

3. Structural Load Resistance: Underwater pipelines are subjected to massive external forces, including wave action, bottom currents, and potential impacts from ship anchors or fishing gear. The crotch of a Y-branch is a point of high stress concentration. Advanced engineering design utilizes finite element analysis (FEA) to determine the required wall thickness and reinforcement (such as gussets or wraps) to ensure the fitting does not deform or crack under cyclic loading.

🌊

Subsea Installation Challenges

Installing heavy-duty pipeline components underwater requires meticulous planning. HDPE Y-branches are lightweight compared to steel or concrete alternatives, making them easier to float, position, and sink using controlled flooding techniques. Their inherent flexibility allows them to conform to uneven seabed bathymetry without fracturing.

HDPE Material Excellence in Marine Environments

Choosing the right material for marine outfalls can mean the difference between a system that lasts for generations and one that fails prematurely, causing environmental catastrophes and costly repairs. High-Density Polyethylene (HDPE), specifically PE100 and PE100-RC (Resistant to Crack), is widely accepted as the premier material for these applications.

Unlike steel, ductile iron, or concrete, HDPE is completely immune to marine corrosion, chemical attacks from industrial waste, and biological colonization (biofouling). It does not rust, pit, or scale. Additionally, HDPE possesses excellent fatigue resistance, allowing the Y-branch fittings to absorb water hammer shocks and seismic shifts.

Manufacturing Techniques: Machined vs. Fabricated Y-Branches

Depending on the project specifications and pipe diameter, Y-branch fittings are manufactured using two primary methods:

Fabricated Fittings: For large diameters (often exceeding 630mm up to 1600mm), Y-branches are fabricated by cutting and butt-fusing segments of extruded HDPE pipes. This process requires precise angular cutting using CNC band saws and welding using specialized workshop fitting machines. The joints are often reinforced with outer layers of HDPE or fiber-reinforced polymers to match the pressure rating of the straight pipe.

Machined Fittings: For smaller diameters or high-pressure applications, Y-branches can be machined directly from solid HDPE hollow bars or billets. This ensures a seamless, monolithic structure with zero weld lines in critical stress areas, offering the highest level of structural reliability.
