Weldy Booster EX3 Plus PE and PP Plastic Handheld Extrusion Welder

Short Description:

1. Hot Air Power: 3000W
2. Welding Rod Heating Power: 800W
3. Extruding Power: 1300W
4. Air Temp: Max 360 °c
5. Extruding Temp:  280-310 °c
6. Welding Speed: 2.4-3.4Kg/h
7. Welding Rod DIA: 3.0mm-4.0mm
8. Material: PP HDPE LDPE


Whatsapp

0086-19381607486

0086-19182258481

0086-19182260480

0086-19182275485

Product Detail

Product Tags

Detail Information

CHUANGRONG is a share industry and trade integrated company, established in 2005 which focused on the production of HDPE Pipes, Fittings & Valves, PPR Pipes, Fittings & Valves, PP compression fittings & Valves, and sale of Plastic Pipe Welding machines, Pipe Tools, Pipe Repair Clamp and so on.



Weldy Booster EX3 Plus  PE and PP Plastic Handheld  Extrusion Welder

Quick  Details

Grade:   Industrial                                                                   Warranty:                 1 year

Power Source:    Electric                                                        Place of Origin:        China

Brand Name:   Weldy                                                              Model Number:        EX3 Plus

Feature: Cool / Hot Air, Temperature Adjustable                     Rated Voltage:         230V

Rated Output Power:   3000W                                                Weight:                    7.2KG

Application: PE PP                                                                 Product name:         Extrusion welder

For Application Range::    2.4-3.4  kg/h





  • Digital temperature control,
  • Dual heating,
  • Cold start protection



Product Description

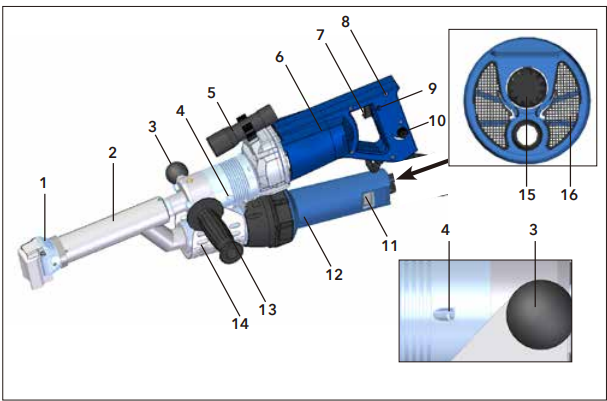

EX3 PLUS 1
1. Welding shoe                                        2. Hot air tube group                               3. Tool rest
4. Welding rod openings                           5. Lighting unit                                        6. Drive unit
7. Tool drive on/off switch                         8. Tail handle                                           9. Locking device drive on/ofo swtich
10. Speed adjust knob                             11. LED display                                       12. Hot air blower
13. Handle                                               14. Heat-insulating protective panel        15. Filter
Instrucion for tool switch:
  •  To  Switch the tool on, press and hold the on/off switch(7).
  •  To  switch the tool off, release the on/off switch (7).
  •   For autoatic contiuous operation when the on/off switch(7) is actuated, press the locking device of the on/off switch (9).

Preparation for Welding

 Weldy Booster EX3 Plus  PE and PP Plastic Handheld  Extrusion Welder
Before switching on the power supply, tool drive on/off switch must be switched off and the power control knob(15) should be in its initial position,  Which is fully anticlockwise.
The handheld extruder must not be used in flammalbe surroundings or when there is a risk of explosion. A stable working position must be ensured during operation. The power cable and the welding rod must be ensured during operation. The power cable and the welding rod must be unobstructed and must not hinder the user or third parties during operation.
Ensure power supply voltage is single phase 220-230V, with minimum power load capacity of 3000W.
  • The handle(13) can alternatively be mounted left, right or bottom of the tool.
  • The tool support (3) can be mounted on the left, right or bottom of the tool.
  • The minimum cross-section must be ensured when using extension cables. The extesion calbes must be authorized for the utilization site and be marked accordingly. When using a power unit for the power supply, it must have the following nominal power rating: two times the nominal power rating of the hand extruder.

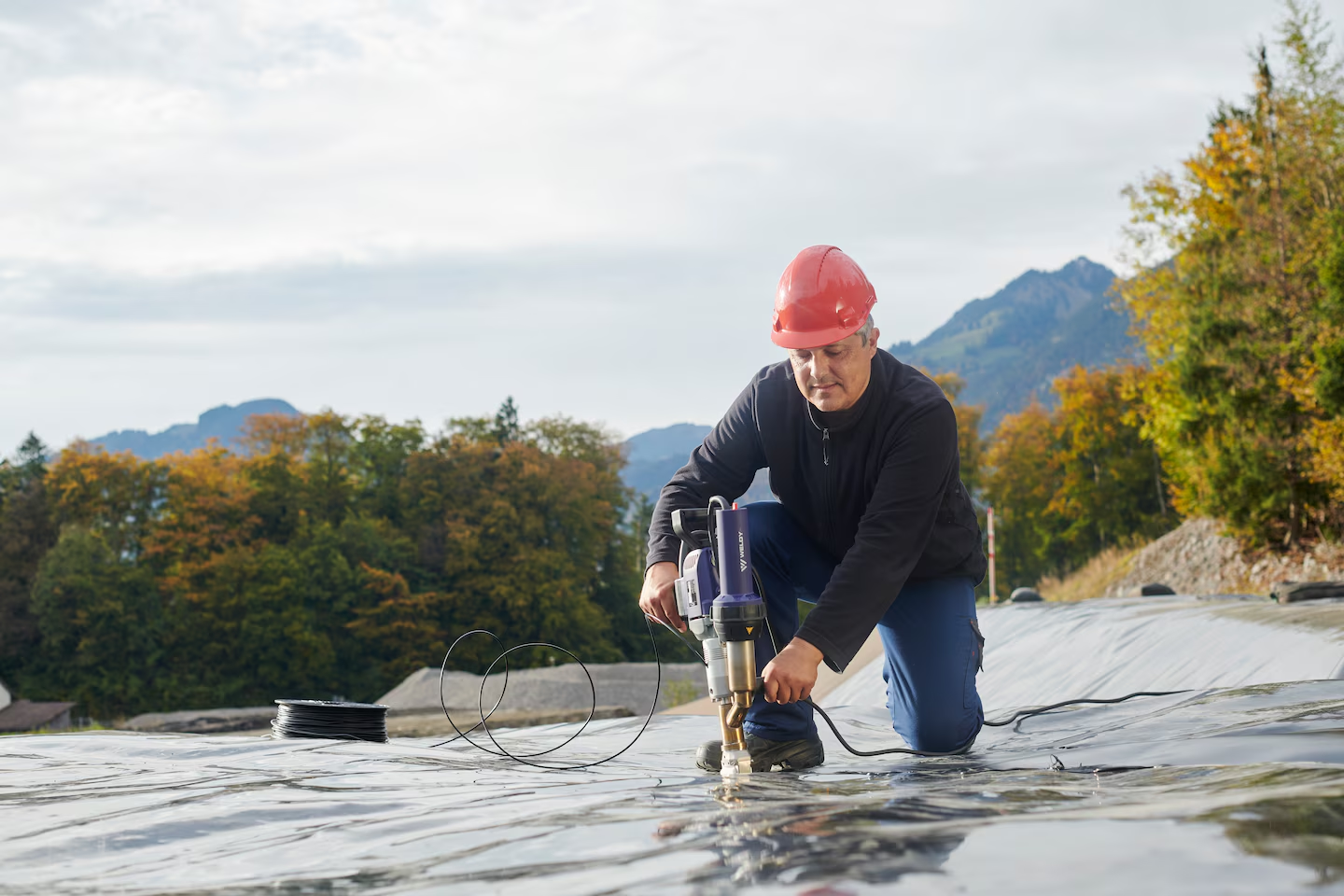

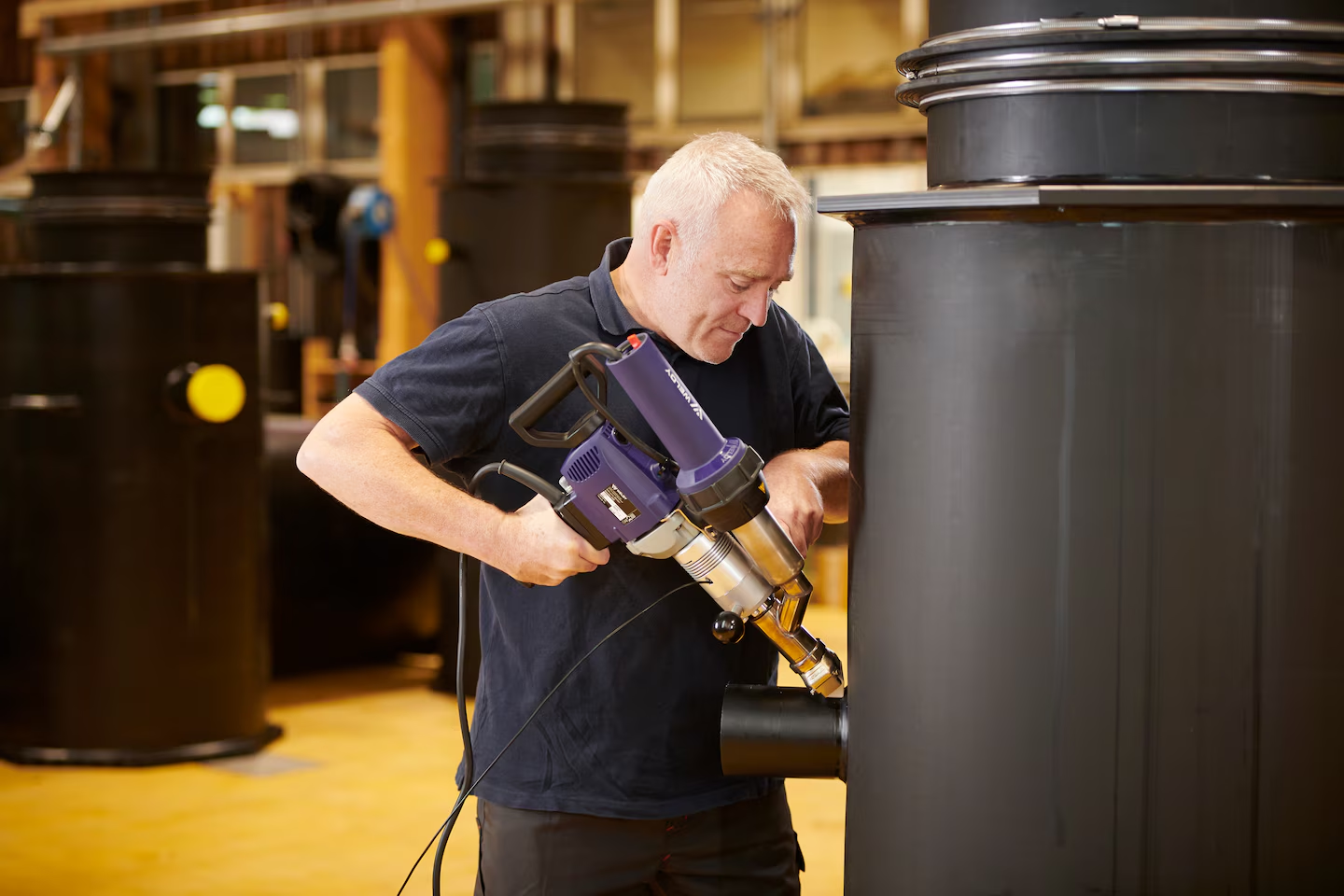

Application

Weldy Booster EX3 Plus  PE and PP Plastic Handheld  Extrusion Welder

  •  Container engineering
  •  Pipeline construction
  •  Plastic fabrication
  •  Plastic Repairseen altered or changed
挤出焊枪BoosterEX2-4
挤出焊枪BoosterEX2-2

Warranty

Weldy Booster EX3 Plus  PE and PP Plastic Handheld  Extrusion Welder

  • For this hand extruder the guarantee or warranty rights that are granted by the local Weldy  partners shall apply. In the case of guarantee or warranty claims, all manufacturing or  processing errors shall be repaired or repla- ced by the local Weldy partners at their own discretion. The guarantee or warranty claims must be proven by a purchase receipt or a delivery note. Heating elements are excluded from warranty obligations or guarantees.
  •  Additional guarantee or warranty claims shall be excluded, subject to mandatory provisions of law.
  •  Warranty or guarantee shall not apply to defects caused by normal wear and tear, overload or improper handling.
  •  Warranty or guarantee claims will be rejected for tools that have been altered or changed by the puchaser.
