Horizontal Floor Drain For Agricultural Irrigation

1. The Commercial and Industrial Status of Agricultural Drainage

In the modern agricultural sector, water management has transitioned from simple watering practices to sophisticated, closed-loop environmental control systems. Efficient drainage is no longer just about removing excess surface water; it is a critical component of soil health, salinity management, and crop yield optimization. The global market for horizontal floor drains and subsurface drainage networks in agricultural irrigation has experienced unprecedented growth. Driven by the rising frequency of extreme weather events, changing precipitation patterns, and the industrialization of greenhouse farming, agricultural enterprises are heavily investing in robust drainage infrastructures.

Horizontal floor drains, when combined with high-density polyethylene (HDPE) piping systems, serve as the baseline structure for field runoff control and indoor agricultural drainage. Traditionally, drainage was managed through open ditches, which consumed valuable arable land, created safety hazards for heavy machinery, and served as breeding grounds for weeds and pests. Modern sub-surface horizontal drainage systems have replaced these inefficient methods, allowing farmers to cultivate 100% of their land while maintaining precise control over the water table.

2. Deep Application Scenarios of Horizontal Floor Drains in Agriculture

To understand the versatility of horizontal floor drains, we must analyze their performance across diverse agricultural environments:

A. High-Tech Greenhouses and Hydroponic Facilities: In commercial greenhouse operations, floor drainage is vital. Hydroponic systems generate significant volumes of nutrient-rich runoff that must be captured, filtered, and recycled. Horizontal floor drains installed along the cultivation rows collect this runoff efficiently. Because these drains are flush with the floor, they do not obstruct automated seeding carts, forklifts, or harvesting machinery. By utilizing chemical-resistant HDPE materials, these drains remain unaffected by the acidic nature of liquid fertilizers and sanitizing agents.

B. Soil Salinity Mitigation in Arid Regions: In arid and semi-arid zones, constant irrigation leads to capillary action, drawing underground salts to the root zone and ruining crop yields. Subsurface horizontal drainage systems, installed at depth, act as a continuous flushing mechanism. When fresh water is applied, it leaches the salts down into the horizontal drain tiles, which channel the saline water away from the fields, reclaiming degraded land.

C. Sports Turf and High-Value Crop Fields: For high-value crops like vineyards, orchards, and turf farms, waterlogging for even a few hours can rot root systems. Horizontal drainage grids ensure rapid evacuation of storm water, protecting root aeration and maintaining soil structure.

3. Technical Specifications & Material Selection: Why HDPE Rules

The choice of material for agricultural drainage networks determines their operational lifespan and maintenance overhead. Traditional materials like concrete, clay, and PVC suffer from severe limitations under field conditions. Concrete is susceptible to chemical erosion from fertilizers and organic soil acids, while standard PVC becomes brittle when exposed to low temperatures or UV radiation.

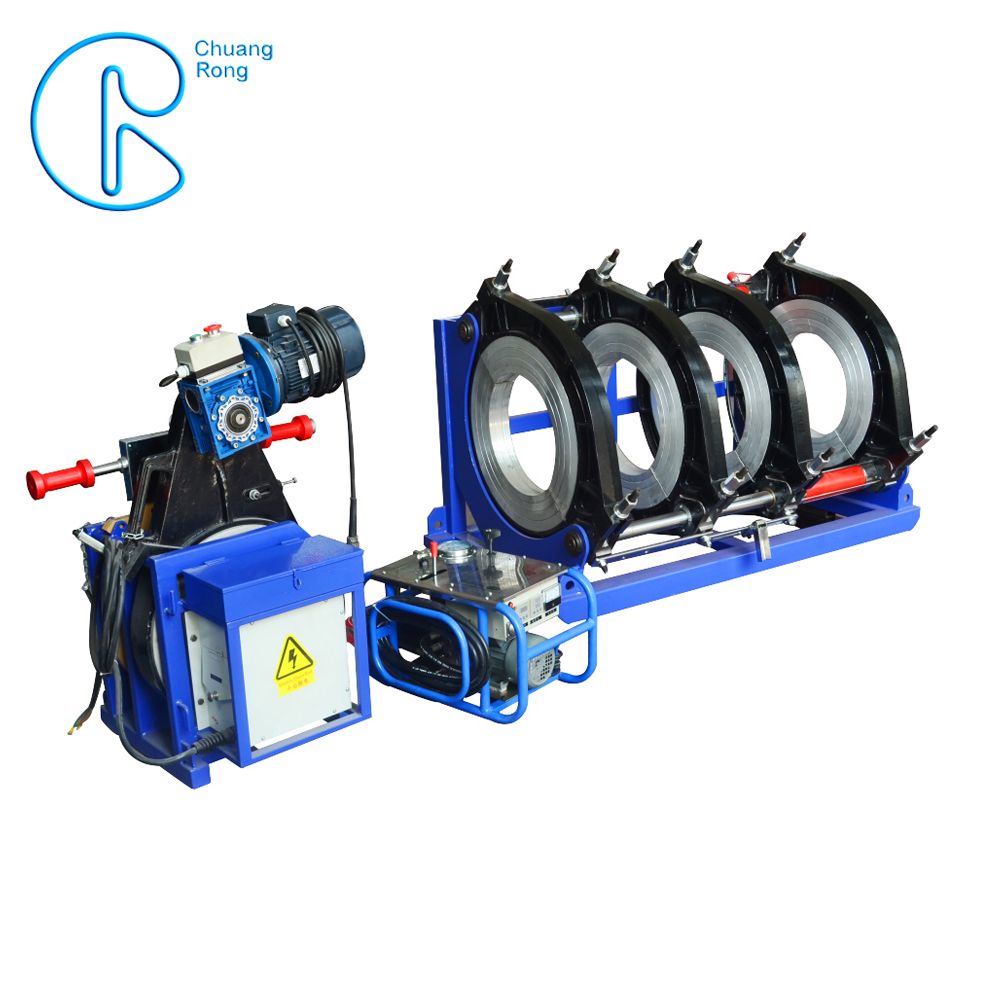

High-Density Polyethylene (HDPE) has emerged as the industry standard. HDPE offers exceptional flexibility, allowing it to withstand soil settlement, seismic shifts, and the heavy loads of agricultural machinery without cracking. Its smooth inner surface prevents sediment buildup and biological scaling, maintaining optimal hydraulic flow rates over decades. Furthermore, HDPE is joined using butt fusion or electrofusion welding, creating monolithic, leak-proof joints that prevent root intrusion—the leading cause of subsurface drainage failure.

4. Siphonic Drainage Technology in Large-Scale Agricultural Projects

One of the major breakthroughs in horizontal drainage is the adaptation of siphonic principles to agricultural fields and large-scale greenhouse roofs. Unlike gravity-fed systems that run only partially full of water, siphonic systems utilize specialized baffles and aerators (such as the HDPE Siphon Sovent Aerator) to purge air from the pipelines. This creates a full-bore flow, generating a negative pressure (vacuum) that actively pulls water through the horizontal network at high velocities.

This siphonic action allows engineers to design systems with smaller pipe diameters and zero slope, significantly reducing excavation costs and installation complexity. In greenhouse roofs, siphonic drainage prevents water pooling during heavy downpours, protecting structural integrity and preventing crop damage from sudden leaks.

5. Future Trends: Smart Drainage and Environmental Sustainability

As environmental regulations tighten worldwide, the agricultural sector faces pressure to limit nutrient runoff (nitrogen and phosphorus) into local water bodies. The future of agricultural drainage lies in "controlled drainage" or smart drainage systems. By installing adjustable gates or smart valves at the outlets of horizontal drain networks, farmers can raise or lower the water table according to the crop's growth stage.

During dry periods, the drainage valves are closed to retain moisture in the soil, reducing irrigation demand. Before heavy rains or harvesting, the valves are opened to dry out the field. This not only conserves water but also prevents valuable fertilizers from washing away, saving farmers money and protecting downstream ecosystems.
