Compression Clamp Pipe For Geothermal Heating Systems

Commercial & Industrial Landscape of Geothermal Heating Systems

As the global community accelerates its transition toward carbon neutrality, geothermal heating systems have emerged as a cornerstone of sustainable building services, industrial processes, and district energy networks. Ground-source heat pump (GSHP) systems harvest low-grade thermal energy stored beneath the Earth's surface, converting it into reliable, high-efficiency space heating and cooling. At the heart of these closed-loop and open-loop thermal networks lies the piping infrastructure, which must operate flawlessly under challenging subsurface environments for decades.

The choice of piping and jointing technologies directly impacts the installation velocity, total capital expenditure (CAPEX), operational expenditure (OPEX), and long-term reliability of geothermal arrays. Among the various jointing systems, the Compression Clamp Pipe and PP compression fittings have established themselves as vital options. They offer a mechanical alternative to thermal fusion in specific system configurations, particularly in manifold connections, distribution loops, and temporary test loops. Understanding the industrial dynamics of these systems is crucial for engineers, designers, and utilities aiming to optimize geothermal installations.

Market Drivers and the Demand for Mechanical Reliability

Industrial geothermal projects demand materials that can withstand continuous thermal cycling, soil movement, chemical exposure, and high pressures. While High-Density Polyethylene (HDPE PE100) remains the gold standard for ground loops due to its flexibility and durability, the connection interfaces represent potential vulnerability points if not executed correctly. Mechanical compression clamp systems provide a high-integrity, robust seal using a combination of a compression nut, a split ring (clincher), a press ring, and an elastomeric O-ring. This design ensures that the pipe is gripped mechanically while the O-ring provides a hydrostatic seal, preventing fluid loss or environmental contamination.

Deep Application Analysis: Compression Clamp Pipes in Geothermal Systems

To fully appreciate the utility of compression clamp pipes within geothermal heating systems, one must examine their specific placement and operational dynamics within the system layout. Geothermal systems generally consist of three main parts: the ground loop (heat exchanger), the heat pump unit, and the building distribution system (radiant floors, fan coils). Compression clamp mechanisms are primarily utilized at critical junctions where flexibility, ease of maintenance, and speed of assembly are prioritized.

1. Geothermal Manifold Chambers and Distribution Headers

In large-scale commercial geothermal fields, dozens of vertical boreholes are drilled. Each borehole loop must run back to a central manifold chamber. The manifold splits the main flow from the heat pump into individual loop circuits. Connecting these HDPE ground loops to the manifold header using compression clamp fittings offers several advantages:

• Adjustment and Calibration: During installation, loops may need to be isolated, pressure-tested individually, or adjusted. Compression fittings can be disassembled and reassembled, unlike welded joints, allowing for system modifications and balancing valves integration.
• Space Constraints: Manifold chambers are often confined underground utility vaults. Operating butt fusion or electrofusion machinery in these tight spaces is challenging. Compression clamps require only hand tools or strap wrenches, simplifying the installation process.

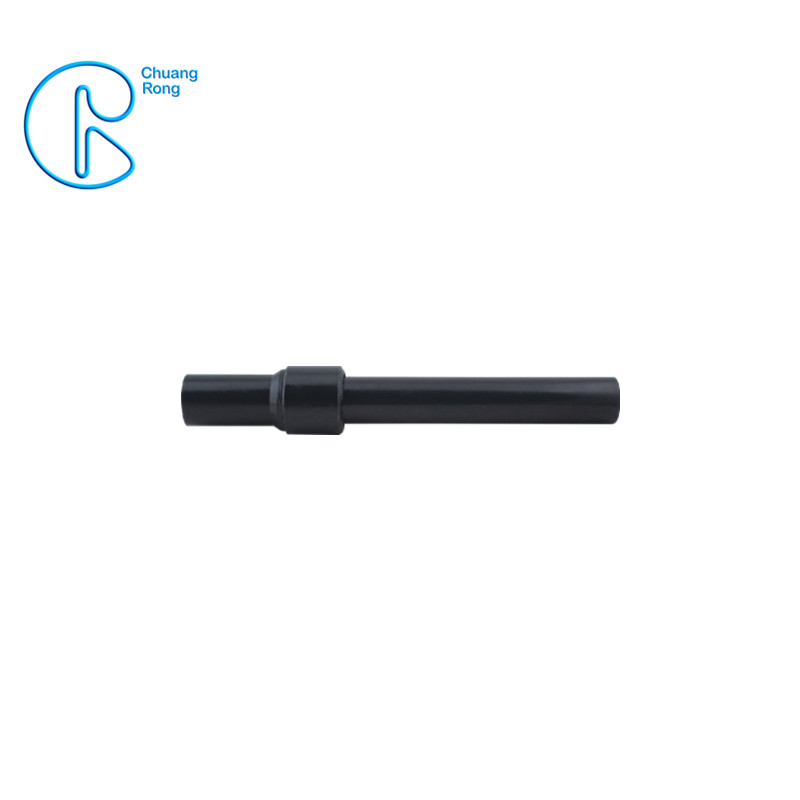

• Dissimilar Material Joining: Often, the manifold header is made of stainless steel or brass, while the ground loops are HDPE. PE-to-steel transition fittings utilizing compression mechanics provide a robust, transition-safe connection that bridges plastic and metal systems seamlessly.

2. Horizontal Ground Loops in Agricultural and Residential Applications

For shallow horizontal ground loops (slinky loops or trench loops), which are common in residential and agricultural settings (such as greenhouse heating), cost-effectiveness and rapid deployment are essential. Compression clamp pipes reduce labor costs significantly. Installers can lay out the pipe trenches, cut the PE pipes to size with simple pipe cutters, deburr the edges, and clamp the connections in minutes. This minimizes the time trenches remain open, reducing safety risks and project delays caused by weather.

3. System Retrofitting and Repair Operations

Geothermal systems are designed for a 50+ year lifespan, but external factors like ground settling, excavation accidents, or seismic activity can damage underground piping. When a leak occurs, executing a repair quickly is vital to prevent system downtime. Multi-function pipe couplings and compression repair clamps allow maintenance crews to seal punctures or replace damaged pipe segments without draining the entire geothermal loop network. This rapid restoration capability is invaluable for commercial buildings that rely on geothermal systems for continuous climate control.

Future Trends & Technological Advancements in Geothermal Piping

The geothermal sector is undergoing rapid technological evolution, driven by the need for deeper boreholes, higher heat transfer rates, and lower installation costs. These trends are influencing the design and material science of compression clamp pipes and associated fittings:

1. High-Temperature Geothermal Applications (HT-GSHP)

Traditional geothermal loops operate at moderate temperatures (under 30°C). However, modern industrial applications and deep geothermal energy extraction systems operate at higher temperatures, sometimes exceeding 60°C. This requires advanced polymers like PE-RT (Polyethylene of Raised Temperature Resistance) or PP-R. Mechanical compression clamps designed for these high-temperature systems must utilize specialized elastomeric gaskets (such as EPDM or Viton) and reinforced locking rings to prevent creep and maintain sealing pressure over decades of exposure to hot thermal fluids.

2. Integration of Smart Sensors

As part of the shift toward the Internet of Things (IoT) and smart cities, geothermal monitoring is becoming increasingly sophisticated. Future piping systems are integrating fiber-optic sensors or conductive copper wires along the pipe exterior. These sensors detect temperature variations, strain, and potential fluid leaks. In these smart systems, compression manifolds serve as the logical connection nodes where sensor data lines can exit the pipeline safely without compromising pressure integrity.

3. Eco-Friendly and Recyclable Materials

Sustainability is the core value of geothermal energy. Consequently, manufacturers are focusing on the carbon footprint of the piping materials themselves. The production of PP compression fittings and HDPE pipes is shifting toward green manufacturing processes, using recyclable thermoplastics and optimizing wall thicknesses to reduce material consumption while maintaining pressure ratings (SDR11/SDR9). CHUANGRONG's commitment to international standards like ISO14001 and CE approvals ensures that our piping solutions meet these strict environmental criteria.

4. Standardization and Global Compliance

As geothermal systems scale globally, compliance with international standards is essential. Engineers demand piping systems that are certified across multiple jurisdictions. The alignment of HDPE and mechanical fittings with standards such as ISO4427/4437, EN12201, and ASTM D3035 ensures that systems installed in North America, Europe, or Asia-Pacific exhibit consistent pressure ratings, chemical resistance, and mechanical performance, regardless of local ground conditions.
