China Wholesale Hdpe Pipe Suppliers In Uae Pricelist – OEM ODM Supported HDPE Irrigation Pipe WRAS Certificated – CHUANGRONG
China Wholesale Hdpe Pipe Suppliers In Uae Pricelist – OEM ODM Supported HDPE Irrigation Pipe WRAS Certificated – CHUANGRONG Detail:
- Detail Information
| Product Name: | High Density Polyethylene HDPE Pipe Coils DN63mm For Cold Water Supply Or Irrigation | Application: | Water Supply Or Irrigation |
|---|---|---|---|
| Standard: | ISO4427/4437, DIN8074/8075 | Material: | PE, 100% Virgin Material PE100 |
| Specification: | DN63mm PN16 SDR11 | Length Per Coil: | 50m |
1. Raw material:PE100 or PE80
2. Color:black with blue stripe or as required
3. Specification:please see the following table
4: Connecting way:socket fusion, butt fusion or electrofusion
5. Advantage:ODM.OEM
6. Pressure:PN16 (SDR11),PN12.5 (SDR13.6), PN10 (SDR17.6),PN8 (SDR21),PN6(SDR26)
7. Product feature:light weight,high strength, low resistance,corrosion resistance,easy installation,long lifespan,low cost
| HDPE Pipe coil For Water Supply Or Irrigation | ||||||||||
| Nominal outside diameter Dn(mm) | PE80 Pipe | PE100 Pipe | ||||||||
| Nominal wall thickness en(mm) | ||||||||||
| PN4 | PN6 | PN8 | PN10 | PN12.5 | PN6 | PN8 | PN10 | PN12.5 | PN16 | |
| SDR33 | SDR21 | SDR17 | SDR13.6 | SDR11 | SDR26 | SDR21 | SDR17 | SDR13.6 | SDR11 | |
| 20 | - | - | - | - | 2.3 | - | - | - | - | 2.3 |
| 25 | - | - | - | 2.3 | 2.3 | - | - | - | 2.3 | 2.3 |
| 32 | - | - | 2.3 | 2.4 | 3.0 | - | - | 2.3 | 2.4 | 3.0 |
| 40 | - | 2.3 | 2.4 | 3.0 | 3.7 | - | 2.3 | 2.4 | 3.0 | 3.7 |
| 50 | 2.3 | 2.4 | 3.0 | 3.7 | 4.6 | 2.3 | 2.4 | 3.0 | 3.7 | 4.6 |
| 63 | 2.4 | 3.0 | 3.8 | 4.7 | 5.8 | 2.4 | 3.0 | 3.8 | 4.7 | 5.8 |
| 75 | 2.6 | 3.6 | 4.5 | 5.6 | 6.8 | 2.9 | 3.6 | 4.5 | 5.6 | 6.8 |
| 90 | 2.8 | 4.3 | 5.4 | 6.7 | 8.2 | 3.5 | 4.3 | 5.4 | 6.7 | 8.2 |
| 110 | 3.4 | 5.3 | 6.6 | 8.1 | 10.0 | 4.2 | 5.3 | 6.6 | 8.1 | 10.0 |

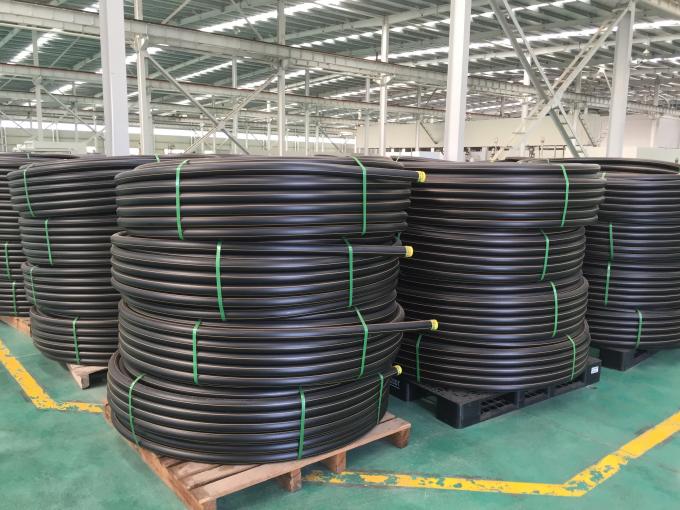

Packing Method:Nude Roll pipe, Small rolls suit into large rolls.
Pipe dia.20mm-63mm can be in coils with 50m/100/200m length; 63<Pipe dia<=110with 50m length.
Production Lead Time:Depending on the order quantity.
Normally about 5 days for 20ft container, 10 days for a 40ft container.
Supply Ability:100000 Ton/Year
Payment Method:T/T, L/C at sight,West Union
Trading Method:EXW, FOB, CFR, CIF,DDU

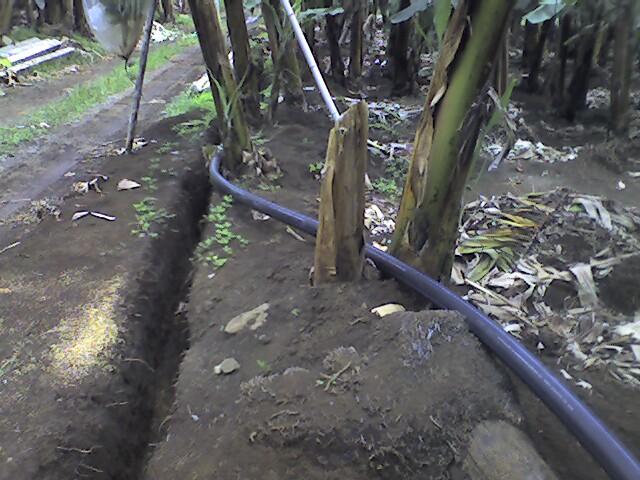

Application of HDPE Pipe for Water Supply

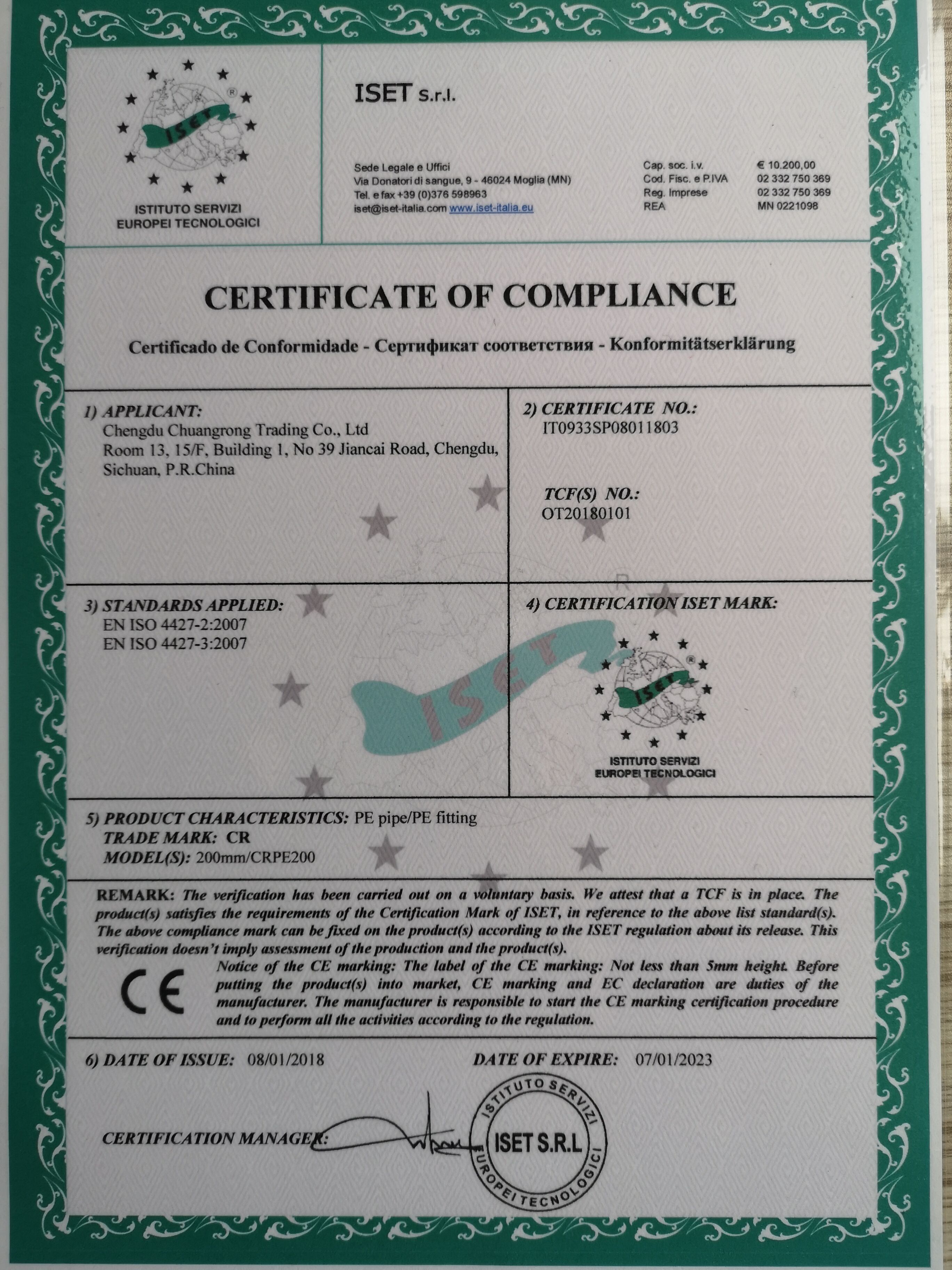

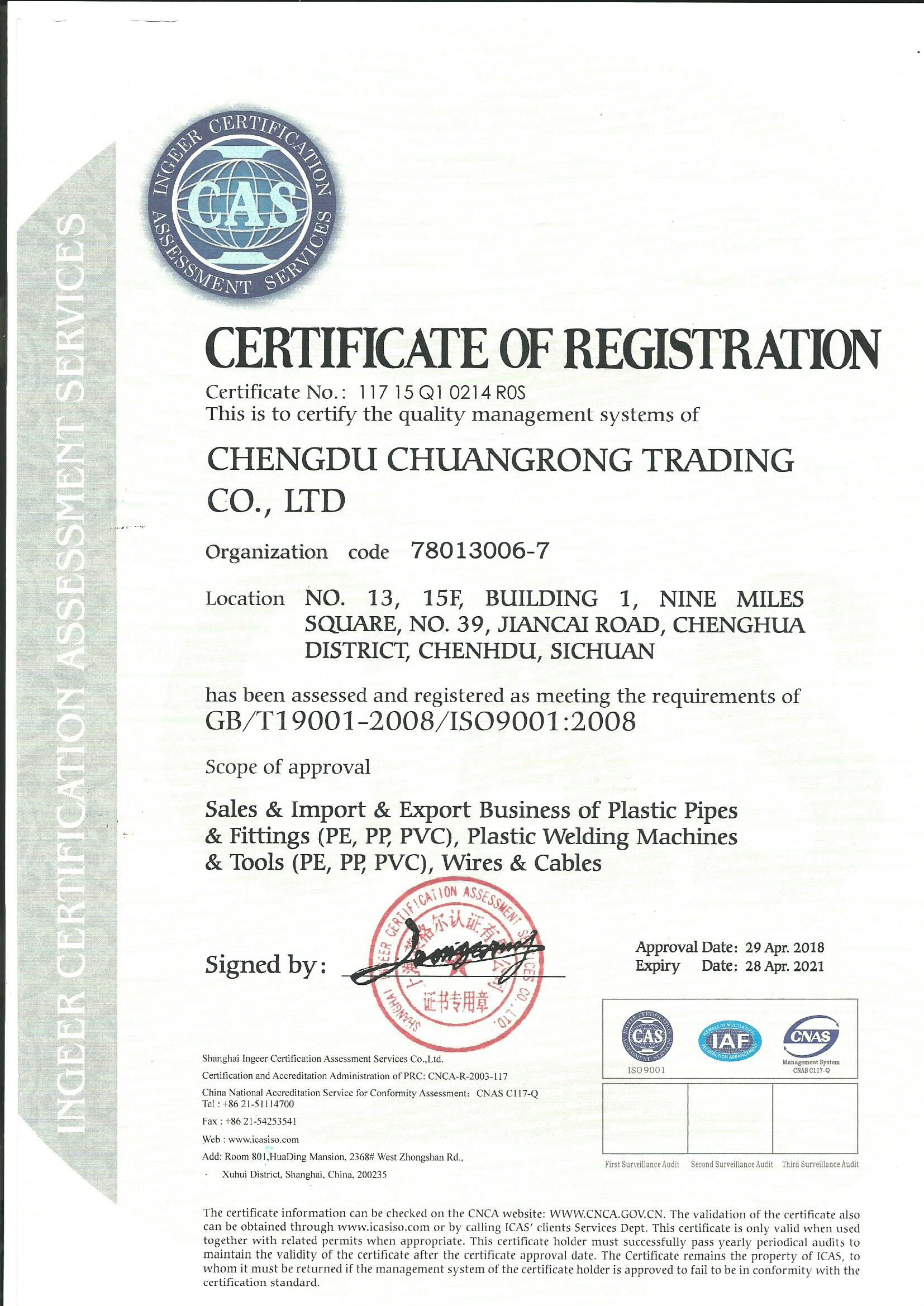

ISO9001-2008,WRAS, BV ,SGS, CE etc certification.All kinds of products are regularly conducted pressure-tight blasting test,longitudinal shrinkage rate test, quick stress crack resistance test, tensile test and melt index test, so as to ensure the quality of products totally reach the relevant standards from raw materials to finished products.
Product detail pictures:
Related Product Guide:
We enjoy a very good reputation among our customers for our excellent product quality, competitive price and the best service for China Wholesale Hdpe Pipe Suppliers In Uae Pricelist – OEM ODM Supported HDPE Irrigation Pipe WRAS Certificated – CHUANGRONG , The product will supply to all over the world, such as: Kuala Lumpur, Jersey, Spain, Our company insists on the purpose of "takes service priority for standard, quality guarantee for the brand, do business in good faith, to provide professional, rapid, accurate and timely service for you". We welcome old and new customers to negotiate with us. We will serve you with all sincerity!
By Alva from Las Vegas - 2017.09.29 11:19
The customer service staff's attitude is very sincere and the reply is timely and very detailed, this is very helpful for our deal,thank you.
By olivier musset from Guyana - 2017.08.18 18:38
