Buttfusion Connection HDPE Drainage Fittings Siphon Y Tee 45 Degree Tee PN6 PE100 EN1519-2019

Short Description:

1. Name: Y-branch Tee (Slant Tee)

2. Size: 50-315mm

3. Pressure :PE100 SDR26   PN6

4. Standard:   EN1519-1:2019,  ISO 8770:2003

5. Packing:   Cartons or Bags.

6. Inspection: Raw material inspection. Finished product inspection. Third party inspection upon clients request.


Product Detail

Product Tags

Basic Information

CHUANGRONG and its affiliated companies specialize in the R&D, production, sale and installation of new-type plastic pipes and fittings. It owned five factories, one of the largest manufacturer and supplier of plastic pipes and fittings in China. Furthermore, the company owns more 100 sets pipe production lines that are advanced at domestic and abroad,200 sets of fitting production equipment. The production capacity reaches more than 100 thousand tons. Its main contain 6 systems of water, gas, dredging, mining, irrigation and electricity, more than 20 series and more than 7000 specifications.



Buttfusion Connection HDPE Drainage Fittings Siphon Y Tee 45 Degree Tee

  Type

 Specification

Diameter(mm)

Pressure

HDPE  Syphon Drainage Fittings

Eccentric Reducer

DN56*50-315*250mm

SDR26 PN6

90 Deg Elbow

DN50-315mm

SDR26 PN6

45 Deg Elbow

DN50-315mm

SDR26 PN6

88.5Deg Elbow

DN50-315mm

SDR26 PN6

Lateral Tee(45 Deg Y Tee)

DN50-315 mm

SDR26 PN6

Lateral Tee(45 Deg Y Reducing Tee)

DN63*50-315 *250mm

SDR26 PN6

Expansion Socket

DN50-200mm

SDR26 PN6

Clean -out Hole

DN50-200mm

SDR26 PN6

88.5 Deg Swept Tee

DN50-200mm

SDR26 PN6

90 Deg  Access Tee

DN50-315mm

SDR26 PN6

Double Y Tee

DN110-160mm

SDR26 PN6

P Trap

DN50-110mm

SDR26 PN6

U Trap

DN50-110mm

SDR26 PN6

S Trap

DN50-110mm

SDR26 PN6

Sewage P Trap

DN50-110mm

SDR26 PN6

Cap

DN50-200mm

SDR26 PN6

Anchor Pipe

DN50-315mm

SDR26 PN6

 Floor Drain

 50mm,75mm,110mm

SDR26 PN6

Sovent

110mm

SDR26 PN6

EF Coupler

DN50-315mm

SDR26 PN6

EF Surrounded Coupling

DN50-315mm

SDR26 PN6

EF 45 Deg Elbow

DN50-200mm

SDR26 PN6

EF 90 Deg Elbow

DN50-200mm

SDR26 PN6

EF 45 Deg Y Tee

DN50-200 mm

SDR26 PN6

EF  Access Tee

DN50-20mm

SDR26 PN6

EF Eccentric Reducer

DN75*50-160*110mm

SDR26 PN6

Outlet

56-160mm

SDR26 PN6

Horizotal  Pipe Clamps

DN50-315mm



Triangle Insert

10*15mm



Square Steel Elevator Element

M30*30mm



Square Steel Connecting Element

M30*30mm



Mounting Sheet

M8,M10,M20





Welcome to visit our factory or conduct a third-party audit.

Welcome to contact us for products details and professional service.

Please send email to:  chuangrong@cdchuangrong.com



Product Description

HDPE Draining Fittings Siphon Y tee 45 degree Tee PN6 PE100



CHUANGRONG HDPE siphon pipes provide a one-stop solution for drainage.

System components The complete proven and practical product range consists of:• Pipes• Fittings• Connections• FasteningsSiphon pipes and fittings are made of high-density polyethylene, it has significant advantages over traditional drainage systems.

CHUANGRONG HDPE siphon pipe system has excellent mechanical properties, physical properties and chemical properties. High impact and abrasion resistance Resistors are very flexible and offer multiple connection options.

These comprehensive characteristics make it very suitable as a drainage material, It satisfies the needs of building drainage well, and the stable quality ensures the safety of drainage solutions.

黑色2 (4)

黑色2 (4)

黑色2 (4)

Product Name: HDPE Draining Fittings Siphon Y Tee 45 Degree Tee PN6 PE100 Application: Syphon,Drainage,Sewage
Connection: Buttfusion Technics: Injection
Certificate: ISO9001-2015, BV ,SGS, CE Etc Certification. Port: China Main Port(Ningbo,Shanghai Or As Required)


System’s Solution

1.Compared with the traditional gravity drainage system, the siphon drainage system without slope;less material; the construction are greatly reduced; reduction of pipe diameter; save installation space;pipe has self-cleaning function;design, construction is simple and quick;widely applicable to various purposes buildings.

2. Smooth inner wall, and does not change with time, small frictional resistance,save energy, the pressure loss about 30% smaller than the steel tube,can choose smaller than steel pipe diameter. Health performance is good, no additives, no possibility of pollution of drinking water, ISO standard grading polyethylene material level 0 (the lowest), no mildew material, compared with some other commonly used plastic material of polyethylene is much mildew resistance, use for a long time also not fouling.

3. Polyethylene pipe can be welded joint with pipe become an organic whole, without the possibility of joint leakage, water saving, reducing operation cost and maintenance cost examination, pipe can be manufactured in any length, but the flexible layout, saving fittings.

4. PE pipe installation available welding or fused to form a completely closed seepage control system.

5. Light, easy to install, handling, connection, construction is convenient and reliable.

6. Has good flexibility, small can winding pipe, pipe winding along the ditch, can resist formation geological change, can be used as liner repairing old pipeline.

7. Good low temperature resistance, corrosion resistance, long life, buried pipeline within to 40 °C and 40 °C.



Specification

12

Size (mm)

L (mm)

d*1(mm)

L*2(mm)

d*2(mm)

Wall Thickness(mm)

50

157 0/+3.0

50 0/+0.5

110 0/+2.0

50 0/+0.5

2.3 0/+0.5

56

162 0/+3.0

56 0/+0.5

108 0/+2.0

56 0/+0.5

2.3 0/+0.5

63

188 0/+3.0

63 0/+0.6

128 0/+2.0

63 0/+0.6

2.4 0/+0.5

75

199 0/+3.0

75 0/+0.7

142 0/+2.0

75 0/+0.7

2.9 0/+0.5

90

245 0/+3.0

90 0/+0.9

176 0/+2.0

90 0/+0.9

3.5 0/+0.6

110

255 0/+3.0

110 0/+1.0

183 0/+2.0

110 0/+1.0

4.2 0/+0.7

125

312 0/+3.0

125 0/+1.2

226 0/+2.0

125 0/+1.2

4.8 0/+0.7

160

330 0/+3.0

160 0/+1.5

247 0/+2.0

160 0/+1.5

6.2 0/+0.9

200

485 0/+3.0

200 0/+1.8

396 0/+2.0

200 0/+1.8

7.7 0/+1.0

250

575 0/+3.0

250 0/+2.3

479 0/+2.0

250 0/+2.3

9.6 0/+1.2

315

726 0/+3.0

315 0/+2.9

614 0/+2.0

315 0/+2.9

12.1 0/+1.5

63*50

151 0/+3.0

63 0/+0.6

105 0/+2.0

50 0/+0.5

2.4 0/+0.5

90*75

226 0/+3.0

90 0/+0.9

170 0/+2.0

75 0/+0.7

3.5 0/+0.6

75*50

164 0/+3.0

75 0/+0.7

130 0/+2.0

50 0/+0.5

2.9 0/+0.5

75*63

195 0/+3.0

75 0/+0.7

148 0/+2.0

63 0/+0.6

2.9 0/+0.5

90*50

176 0/+3.0

90 0/+0.9

142 0/+2.0

50 0/+0.5

2.4 0/+0.6

90*63

194 0/+3.0

90 0/+0.9

166 0/+2.0

63 0/+0.6

2.4 0/+0.6

110*63

204 0/+3.0

110 0/+1.0

162 0/+2.0

63 0/+0.6

4.2 0/+0.7

110*75

210 0/+3.0

110 0/+1.0

170 0/+2.0

75 0/+0.7

4.2 0/+0.7

110*90

256 0/+3.0

110 0/+1.0

195 0/+2.0

90 0/+0.9

4.2 0/+0.7

125*75

237 0/+3.0

125 0/+1.2

190 0/+2.0

75 0/+0.7

4.2 0/+0.7

125*90

268 0/+3.0

125 0/+1.2

205 0/+2.0

90 0/+0.9

4.8 0/+0.7

125*110

279 0/+3.0

125 0/+1.2

223 0/+2.0

110 0/+1.0

4.8 0/+0.7

160*110

265 0/+3.0

160 0/+1.5

225 0/+2.0

110 0/+1.0

6.2 0/+0.9

160*125

309 0/+3.0

160 0/+1.5

245 0/+2.0

125 0/+1.2

6.2 0/+0.9

200*110

310 0/+3.0

200 0/+1.8

265 0/+2.0

110 0/+1.0

7.7 0/+1.0

200*125

301 0/+3.0

200 0/+1.8

270 0/+2.0

125 0/+1.2

7.7 0/+1.0

200*160

377 0/+3.0

200 0/+1.8

315 0/+2.0

160 0/+1.5

7.7 0/+1.0

250*110

309 0/+3.0

250 0/+2.3

295 0/+2.0

110 0/+1.0

9.6 0/+1.2

250*125

310 0/+3.0

250 0/+2.3

287 0/+2.0

125 0/+1.2

9.6 0/+1.2

250*160

353 0/+3.0

250 0/+2.3

322 0/+2.0

160 0/+1.5

9.6 0/+1.2

315*110

318 0/+3.0

315 0/+2.9

323 0/+2.0

110 0/+1.0

12.1 0/+1.5

315*125

367 0/+3.0

315 0/+2.9

328 0/+2.0

125 0/+1.2

12.1 0/+1.5

315*160

367 0/+3.0

315 0/+2.9

340 0/+2.0

160 0/+1.5

12.1 0/+1.5

Procession

14969045





Manual Butt Welding





The welding palte is especially suitable for welding dimensions up to dn75mm. Due to its light weight it can easily be used on-site

Machine Butt Welding



The butt welding machine media and univrersl are for dimensions for 50-315mm. They are especially suitable for prefabrication off site. The light-weight properties of the system allow specifiers and contractors ot design and build pipe runs away from a construction site.

14843967

14849080

Electro Welding



The  electrofusion machine are ideal for us on construction site to create a fast, simple and reliable connection. The coupers are dn50-315mm.

Application

1. Warehouse

2. Distribution Units

3. Airports Terminals

4. Aircraft Hangers

5. Office Complexes

6. Convetntion Centers

7. Train Stations

8. Sports Stadia

9. Shopping Malls

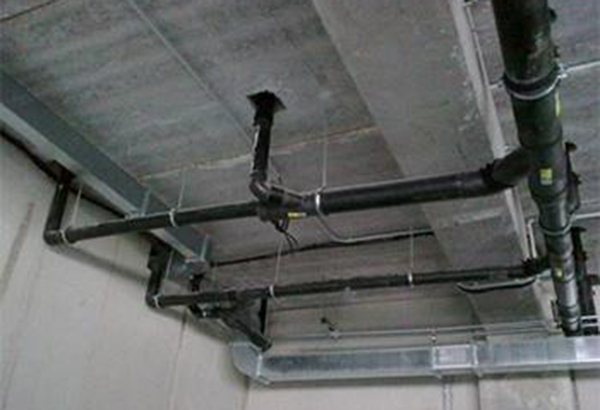

20191127180504_868891

20191127180445_313121

Certifications

CHUANGRONG possesses complete detection methods with all kinds of advanced detection equipment to ensure the quality control in all processes from raw material to finished product. The products are in line with ISO4427/4437, ASTMD3035, EN12201/1555,  DIN8074, AS/NIS4130 standard, and approved by ISO9001-2015, CE, BV, SGS, WRAS.

虹吸管件CE证书_00
ISO CERTIFICATE
CHUANGRONG always supplies the best products and price for customers. It gives customers good profit to develop their business with more confidence. If you are interested in our company and products, please do not hesitate to contact us for further information.

Welcome to contact us for products details and professional service.

Please send email to:  chuangrong@cdchuangrong.com  or Tel: + 86-28-84319855
