PN16 SDR11 PE100 90-315mm HDPE Electrofusion Fittings Repair Saddle For Gas Supply

Short Description:

1. Name: EF Repair Saddle

2.  Size : dn90-315mm

3. Pressure: PE100 SDR11 Water  PN16 or Gas 10 Bar

4.  Standard: ISO4427, EN12201 / ISO4437 EN1555.

5. Packing:  Woodencase, cartons or bags.

6. Delivery: 3-7 Days, Quick Deliery.

7. Product inspection: Raw material inspection. Finished product inspection. Third party inspection upon clients request.


Product Detail

Product Tags

Detail Information

CHUANGRONG and its affiliated companies specialize in the R&D, production, sale and installation of new-type plastic pipes and fittings. It owned five factories, one of the largest manufacturer and supplier of plastic pipes and fittings in China. Furthermore, the company owns more 100 sets pipe production lines that are advanced at domestic and abroad,200 sets of fitting production equipment. The production capacity reaches more than 100 thousand tons. Its main contain 6 systems of water, gas, dredging, mining, irrigation and electricity, more than 20 series and more than 7000 specifications.

CHUANGRONG can provide high quality HDPE Electrofusion Fittings for Water,Gas and Oil  DN20-1200mm, SDR17, SDR11, SDR9  with bar code at competitive price.

PE100  90-315mm HDPE Electrofusion Fittings Repair Saddle

Fittings Type

Specification

Diameter(mm)

Pressure

HDPE Electrofusion Fittings

EF Coupler

DN20-1400mm

SDR17, SDR11 SDR9(50-400MM)

EF Reducer

DN20-1200mm

SDR17, SDR11 SDR9(50-400MM)

EF 45 deg elbow

DN50-1000mm

SDR17, SDR11 SDR9(50-400MM)

EF 90 deg elbow

DN25-1000mm

SDR17, SDR11 SDR9(50-400MM)

EF Tee

DN20-800mm

SDR17, SDR11 SDR9(50-400MM)

EF Reducing Tee

DN20-800mm

SDR17, SDR11 SDR9(50-400MM)

EF End Cap

DN32-400mm

SDR17, SDR11 SDR9(50-400MM)

EF Stub End

DN50-1000mm

SDR17, SDR11 SDR9(50-400MM)

EF Branch Saddle

DN63-1600mm

SDR17, SDR11

EF Tapping Saddle

DN63-400mm

SDR17, SDR11

EF Repair Saddle

DN90-315mm

SDR17, SDR11

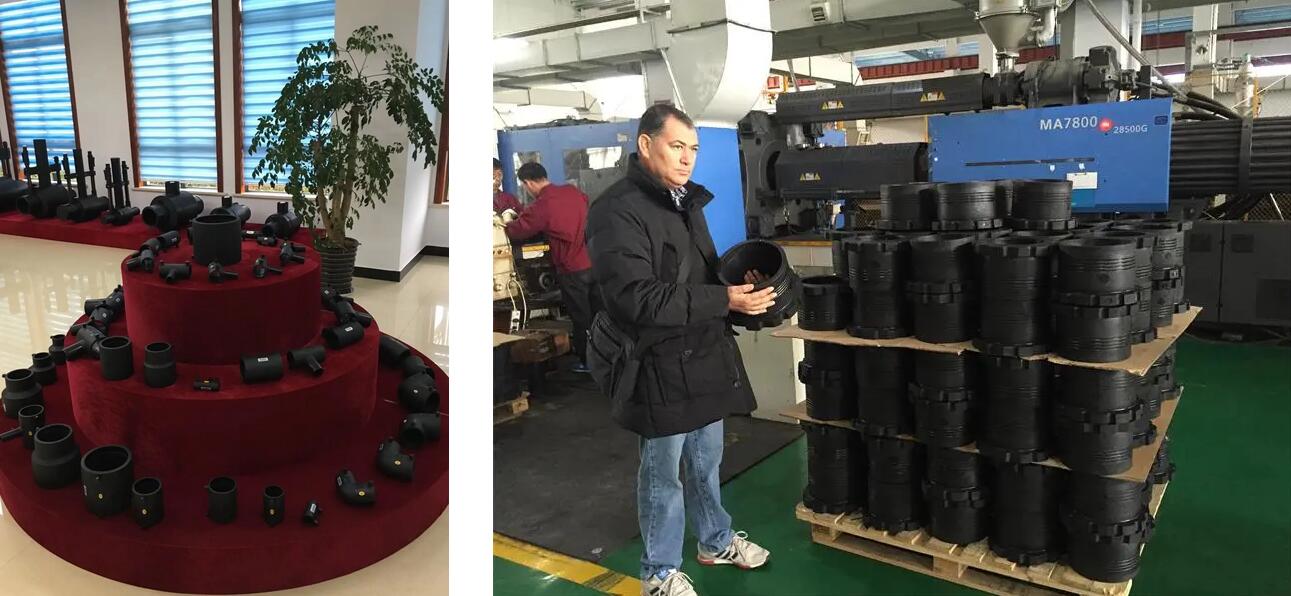

Welcome to visit our factory or conduct a third-party audit.

Welcome to contact us for products details and professional service.

Please send email to:  chuangrong@cdchuangrong.com





Product Description

黑色9 (8)
黑色9 (6)

90-315mm Electrofusion HDPE Fittings Repair Saddle for Gas supply PN16 SDR11 PE100



1. HDPE Electrofusion  fittings are welded by electrofusion machine to connect HDPE pipes together.

2. After electrofusion welding machine plug in electricity and turn on, The copper wire buried inserted in electric fuse.

3. HDPE fittings are heated and make HDPE melt, Which joint HDPE pipe and fittings well.

Main Reasons to Choose CHUANGRONG Electrofusion HDPE Fittings:

1.Technical Support

In order to better serve our customers, we have documented a wide range of expertise in production and installation of piping systems to support large and medium-sized projects.

2.Thoughtful Service

1)CHUANGRONG, as China’s “GF”, we fully understand the needs of customers and provide customers with the most cost-effective solutions — one-stop product portfolio of HDPE pipe systems (HDPE pipes, fittings, welding machines and tools. Also for customers Provide high value-added services, 24 hours to answer customer questions.

2) Our ultimate goal is to add value to our customers through professional, efficient and cost-effective solutions.

3) Tailored solutions for customers. Combine our expertise in developing and producing pipelines systems, and deep industries and market knowledge, based on long-term experience to provide customers with cost-effective solutions.

3.Environmental

1)CHUANGRONG HDPE pipeline system integrates its environmental responsibility into its daily business activities.

2) HDPE is a green environmental protection material, which can be recycled without causing pollution to the environment. We work hard to conserve natural resources and constantly strive to optimize the environmental performance of our products and how they used.

4.​Cost-effective

1) Highest cost performance

2) Compared with traditional steel pipes, it is light and easy for workers to install and repair

3) Low installation and maintenance costs

4) Easy loading and transportation

5) Suitable for non-excavation

5. Production workshop & Equippments of Electrofusion HDPE Fittings

1)Own over 200 sets of injection molding machine; The largest(300,000g) domestic injection molding machine.

2) Over 20 units hautomation robot; 8 sets automation Electrofusion HDPE fittings production system.

3) Annual capacity of over 13000 tons which gives customers huge inventory support.

Specification

20191118154934_68467 (1)
specifications

φD

mm

mm

mm

φd

mm

90 145 154 68 4.7
110 145 160 60 4.7
160 190 230 78 4.7
200 190 235 90 4.7
250 190 300 65 4.7
315 190 300 75 4.7

Factory & Test report

EF FITTINGS
IMG_55851
Test item Standard Conditions Results Unit
1.Melt Flow Index ISO1133 190°C & 5.0Kg 0.2-0.7 0.49 g/10min
2.Density ISO1183 @23°C ≥0.95 0.960 g/cm3
3.Oxidation Induction Time ISO11357 210°C >20 39 Min
4. Hydrostatic Pressure Test ISO1167 80°C 165h, 5.4Mpa Passed
5 Size Check ISO3126 23°C Passed
6 Appearance Clean& Smooth 23°C Passed
  • The results according to test 1-3 are taken form the PE raw material supplier’s report.
  • The results according to test 4-6 are taken from the internal test results of fittings sampled from the same batch as delivered fittings.
  • Marking according EN 12201 – 3 and EN 1555 – 3.
  • The pass/fail criteria are based on the requirements of the UNI EN 12201 and UNI EN 1555 standards.



Certification

We can supply ISO9001-2015, BV ,SGS, CE etc certification.All kinds of products are regularly conducted pressure-tight blasting test,longitudinal shrinkage rate test, quick stress crack resistance test, tensile test and melt index test, so as to ensure the quality of products totally reach the relevant standards from raw materials to finished products.

Gas and Oil certifiacate_00(1)
WRAS-PIPE2

Application

1.Municipal water supply, gas supply and agriculture etc.

2.Commercial & Residential water supply

3.Industrial liquids transportation

4.Sewage treatment

5. Food and chemical industry

6. Replacement of cement pipes and steel pipes

7. Argillaceous silt, mud transportation

8. Garden green pipe networks

20191128172848_49793
CHUANGRONG always supplies the best products and price for customers. It gives customers good profit to develop their business with more confidence. If you are interested in our company and products, please do not hesitate to contact us for further information.




Welcome to contact us for products details and professional service.

Please send email to:  chuangrong@cdchuangrong.com  or Tel: + 86-28-84319855
