Weldy WGW 300 Hot Wedge Welding Machine for Welding Geomembranes

Short Description:

1. Voltage230 V
2. Power1750 W
3. Hot wedge material:Copper
4. Hot wedge length:80 mm
5.Test channel:Yes
6. Hot wedge width:45 mm
7.PlugCEE blue, 3 poles, 16A


Whatsapp

0086-19381607486

0086-19182258481

0086-19182260480

0086-19182275485

Product Detail

Product Tags

Detail Information

CHUANGRONG is a share industry and trade integrated company, established in 2005 which focused on the production of HDPE Pipes, Fittings & Valves, PPR Pipes, Fittings & Valves, PP compression fittings & Valves, and sale of Plastic Pipe Welding machines, Pipe Tools, Pipe Repair Clamp and so on.





Weldy WGW 300 Hot Wedge Welding Machine for Welding Geomembranes



The robust and reliable Weldy hot-wedge welding machine, WGW 300, is suitable for safely welding geomembranes inmines, landfills, ponds, fish breeding basins etc.





Voltage 120 V; 230 V
Frequency 50/60 Hz
Power 1750 W
Speed 0.0–8.5 m/min          0.0–27.88 ft/min
Temperature 450 °C                     842.0 °F
Hot wedge length 80 mm                    3.14 in
Hot wedge material Copper
Max. welding pressure 1400 N                     314.73 lbf
Max. overlap 150 mm                  5.9 in
Welding materials CSPE; FPO; HDPE; LDPE; LLDPE; PE; PP; TPO
Weldable material thicknesses 0.8–2.5 mm              31.49–98.42 mil
LQS No
Length 445.0 mm               17.51 in
Width 300.0 mm               11.81 in
Height 318.0 mm               12.51 in
Weight 15.0 kg                   33.06 lb
Protection class I
Additional description No CE – no use in Europe
Country of origin CN

Product Description

The WGW 300 hot-wedge welding machine from Weldy, a Leister brand, welds thermoplastic geomembranes made of HDPE (0.8 to 2.5 mm), LDPE, TPO, FPO, PVC* (0.8 to 3.0 mm), etc. effortlessly and reliably. The geomembranes are typically used in landfills and mines, as well as for aquaculture, fish farms, irrigation systems, etc. and are permanently welded together. The WGW 300 has been deliberately designed to be simple and robust. The electrical controls are intelligently arranged.
All keys are labeled bilingually (English and Chinese). Heating and motor can be turned on and off directly with the controls, which enables fast, safe and intuitive operation. By means of a temperature sensor placed in the middle of the wedge, the welding temperature can be precisely controlled at any time during overlap welding. The WGW 300 automatic welder is equipped with a powerful and durable motor. Its strong drive rollers ensure a secure grip when reliably welding membranes on inclines that are almost vertical. Thanks to the large rollers, this Weldy hot-wedge welding machine achieves high-quality welds on both even and uneven surfaces. The WGW 300 from Weldy is inexpensive to purchase and manages the balancing act between price and quality, making it stand out positively in its market segment. The automatic welding machine is suitable as an inexpensive, entry-level tool for plastic welding in mines, landfills and various engineering projects. The robust hot-wedge welding machine, WGW 300 from Weldy, weighs 15 kg and can be easily stored and transported in the storage box supplied. *A steel wedge is required for welding PVC geomembranes.
1.Designed to weld in demanding terrain
2.Welding speed up to 8.5 m/min
3.Excellent price-performance-ratio
4. Durable drive rollers with strong grip
5. Stable thanks to 3 large rollers
爬焊机WGW300-2
爬焊机WGW300-3

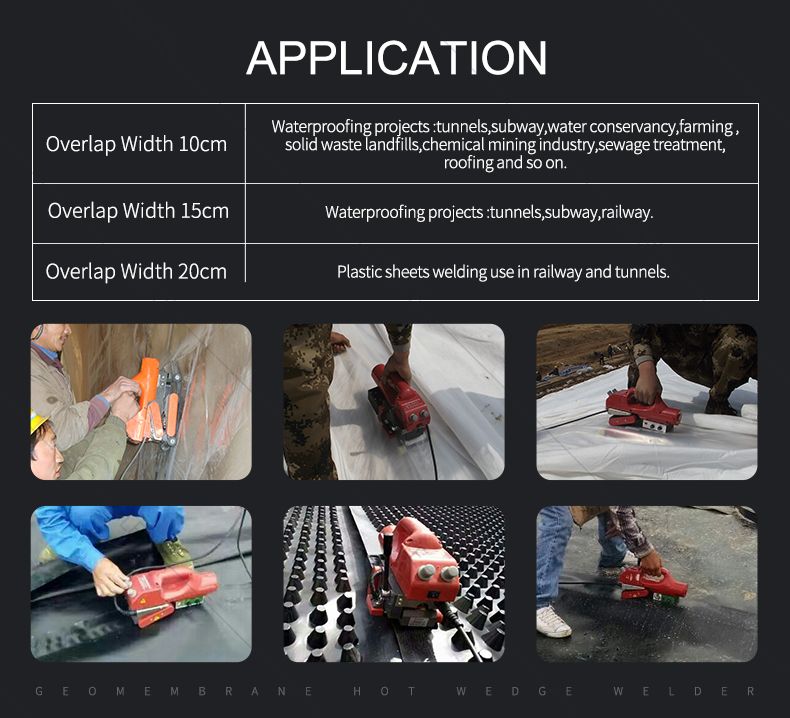

Application

Aquaculture construction and repairAquaculture construction and repair
Foundation waterproofingFoundation waterproofing
Landfill and mining membrane weldingLandfill and mining membrane welding
Pond waterproofingPond waterproofing
Reservoirs and canals waterproofingReservoirs and canals waterproofing
