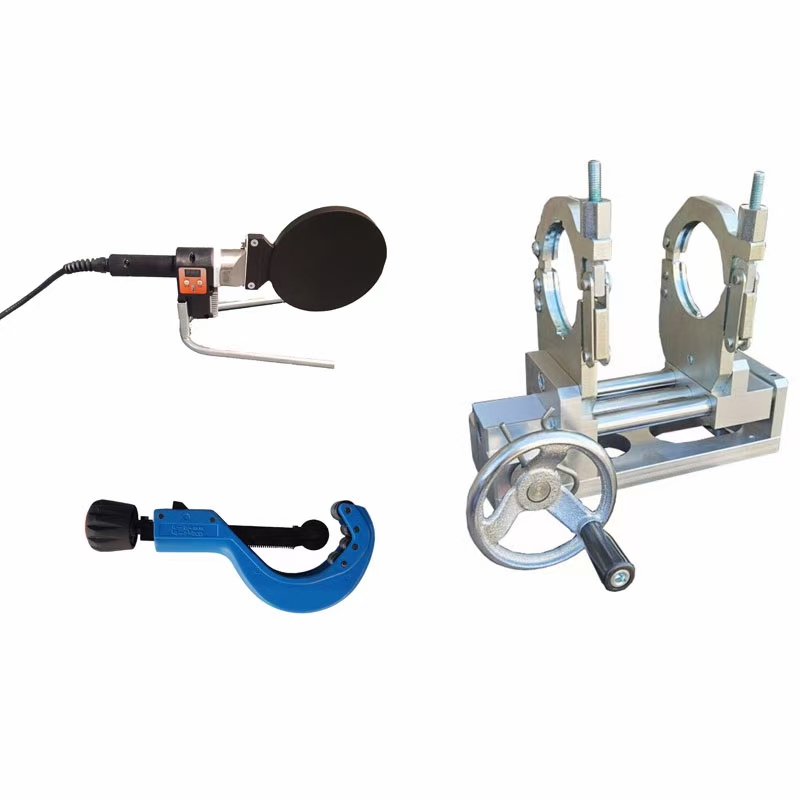

Details of PPR welding machine

OPERATING INSTRUCTIONS

4.1.  Check that the mains voltage is the same as

the voltage stated on the socket  fusion welding

machine plate.

4.2. DEVICES FOR USING THE SOCKET FUSION

WELDING MACHINE

    a                b

a) Fork.Suitable for welding on the floor.

b) Bench bracket. For bench work.

c) Platform. An alternative to the fork.

4.3. Fit  the socket  fusion welding machine to the

chosen device.

4.4. Fit the M/F bushes according to requirements.

N.B.:  The  surface  of  the  bush  in  contact  with  the welding machine must be kept clean at all times.

4.5.  Clamp the bushes tightly to the Socket  fusion welding machine (using a wrench) to obtain the necessary heat exchange for the temperature

required for the bushes

A: Hexagonal wrench

B: Pin unit for bushes

4.6. Plug into the mains

4.6.1. TE MODELS

4.7.  10 – 15 minutes  after the socket  fusion welding machine   is switched on ( or in any case when it has reached operating temperature).

All plastic welding machines supplied are set to a bush temperature of about 260° C.

Check that the edge of the  bush is as specified by the manufacturer of the pipe to be welded.Use a

digital  thermometer

Precision temperature adjustment  between 180° C

and 290° C is possible. Use a digital thermometer

to measure even slight variations

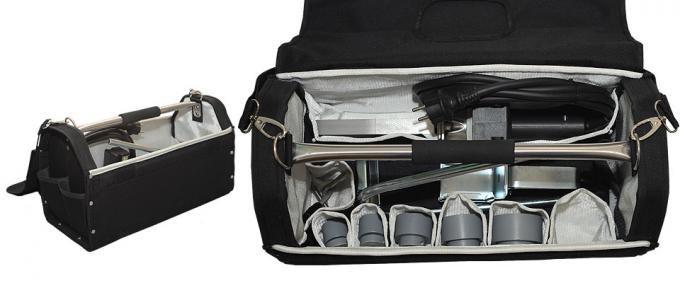

Packing
