China Wholesale Pipe Repair Clamp Factory – Single-Section Multi-Function Pipe Coupling MF Series For Connect Pipes – CHUANGRONG
China Wholesale Pipe Repair Clamp Factory – Single-Section Multi-Function Pipe Coupling MF Series For Connect Pipes – CHUANGRONG Detail:
Detail Information
| Material: | Stainless Steel | Technics: | Connection |
|---|---|---|---|
| Head Code: | Round | Shell Material: | AISI Stainless Steel |
| Suitable Pipe: | Water ,gas,oil Steel Pipeline | Feature: | Quick And Easy Installation |
Product Description
Single-Section Multi-Function Pipe Coupling MF Series For Connect Pipes
Product Description
| Component/Material | M1 | M2 | M3 | M4 |
| Shell | AISI 304 | AISI 304 | AISI 316L | AISI 32205 |
| Bridge Plate | AISI 304 | AISI 304 | AISI 316L | AISI 32205 |
| Screw Hole Tie Rod/Tie Rod | AISI 1024 Hot Dip Galvanized Steel | AISI 304 | AISI 316L | AISI 32205 |
| Screw | AISI 1024 Hot Dip Galvanized Steel | AISI 304 | AISI 316L | AISI 32205 |
| Gear-Ring | AISI 301 | AISI 301 | AISI 301 | - |
| EPDM Rubber Sealing Sleeve |
Temperature:-20℃ to +120℃
Medium:Available for various kinds of water, drainage,air solid and chemicals. |
|||
| NBRRubber Sealing Sleeve |
Temperature:-20℃ to +80℃
Medium:Available for gas,oil,fuel and other hydrocarbon. |
|||
| MVQ Rubber Sealing Sleeve | Temperature:-75℃ to +200℃ | |||
| VITONRubber Sealing Sleeve | Temperature:-95℃ to +350℃ | |||
Specification
| OD | Range | pressure | L | D | M | Nm |
| 18 | 17-19 | PN16 | 57 | 35 | 6 | 10 |
| 21.7 | 21-23 | PN16 | 57 | 45 | 6 | 10 |
| 25 | 24.5-25.5 | PN16 | 57 | 50 | 6 | 10 |
| 27.2 | 26-28 | PN16 | 57 | 50 | 6 | 10 |
| 32 | 31.5-32.5 | PN16 | 57 | 55 | 6 | 10 |
| 34 | 33-35 | PN16 | 57 | 55 | 6 | 10 |
| 40 | 39.5-41.5 | PN16 | 57 | 55 | 6 | 10 |
| 42 | 42-44 | PN16 | 57 | 65 | 6 | 16 |
| 44.5 | 44-45.1 | PN16 | 57 | 65 | 6 | 16 |
| 48.6 | 47-49 | PN16 | 57 | 70 | 6 | 16 |
| 54 | 53.6-54.6 | PN16 | 57 | 70 | 8 | 30 |
| 57 | 56.3-57.7 | PN16 | 57 | 80 | 8 | 30 |
| 60.3 | 59-62 | PN16 | 57 | 85 | 8 | 30 |
| 63 | 62.2-63.9 | PN16 | 80 | 85 | 8 | 30 |
| 76.1 | 75-78 | PN16 | 80 | 100 | 8 | 30 |
| 79.9 | 78.8-80.8 | PN16 | 80 | 100 | 10 | 30 |
| 88.9 | 88-92 | PN16 | 107 | 110 | 10 | 50 |
| 108 | 106-110 | PN16 | 107 | 130 | 10 | 50 |
| 110 | 108.9-111.2 | PN16 | 107 | 130 | 10 | 50 |
| 114.3 | 112-116 | PN16 | 107 | 125 | 10 | 50 |
| 118 | 116.6-119.2 | PN16 | 107 | 140 | 10 | 50 |
| 125 | 123.6-126.5 | PN16 | 107 | 150 | 10 | 50 |
| 133 | 131.5-134.4 | PN16 | 107 | 160 | 10 | 80 |
| 140 | 137-143 | PN16 | 116 | 165 | 12 | 80 |
| 159 | 157-161 | PN16 | 116 | 185 | 12 | 80 |
| 165.2 | 163.2-166.7 | PN16 | 116 | 190 | 12 | 80 |
| 168 | 166-170.2 | PN16 | 116 | 195 | 12 | 80 |
| 170 | 168.2-171.9 | PN16 | 116 | 195 | 12 | 80 |
| 200 | 198.2-201.5 | PN16 | 155 | 240 | 14 | 100 |
| 219 | 217-221 | PN16 | 155 | 250 | 14 | 100 |
| 250 | 250-254 | PN16 | 155 | 285 | 14 | 100 |
| 273 | 271-275 | PN16 | 155 | 305 | 14 | 100 |
| 315 | 313-317 | PN16 | 155 | 340 | 14 | 100 |
| 325 | 323-327 | PN16 | 155 | 355 | 14 | 100 |
| 355.6 | 354-358 | PN16 | 155 | 385 | 14 | 100 |
| 377 | 375-379 | PN16 | 155 | 410 | 14 | 100 |
Features
Applied to connection of various kinds of metal pipes and composite materials of pipelines. Allowable angulardeflection but does not provide restraint. It can provide safe, fast and steady connection and very effect of antivibration and noise reduction, as well as function of distance compensation in pipe ends. Easy to be installed and disassembled and reusable.
Refer to:DIN86128-1,DIN86128-2
All kinds of our clamp approved by :ISO 9001,CE,WRAS,ACS,IAPOM,GHOST

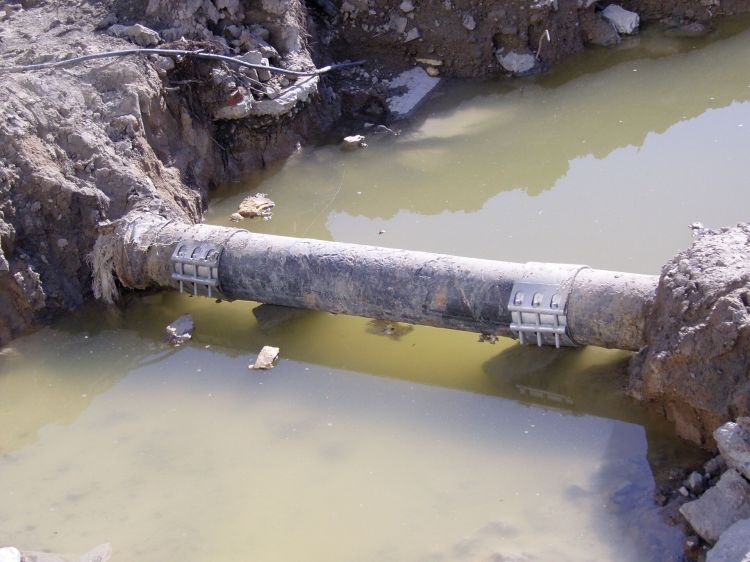

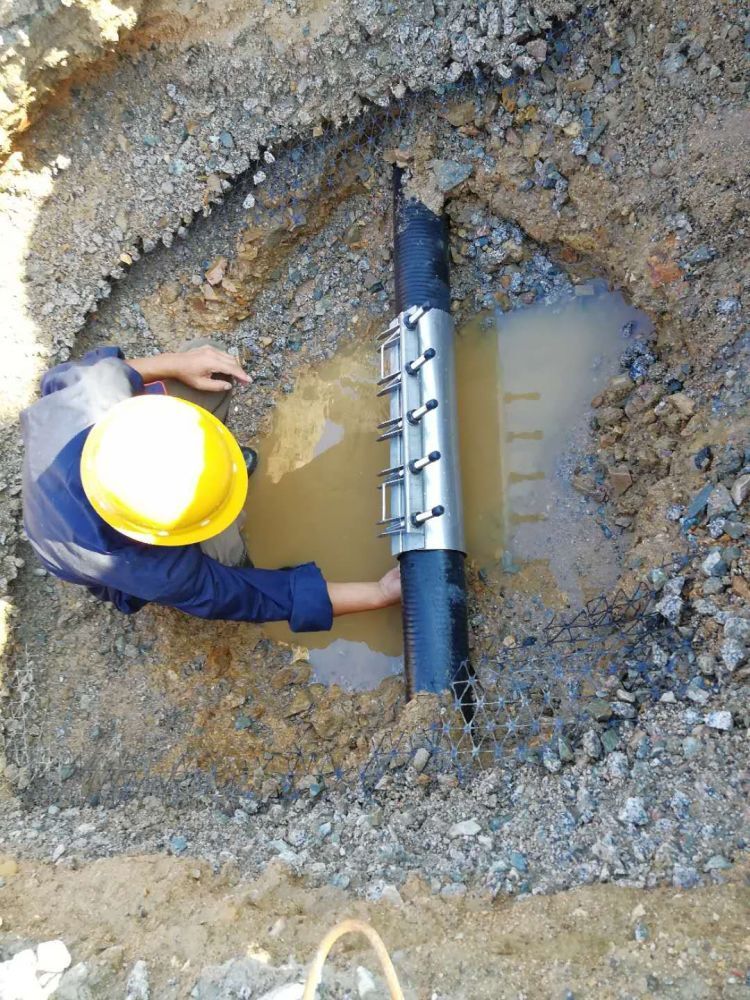

Application
