China Wholesale Hdpe Pipe Manufacture Factory – OEM ODM Supported HDPE Irrigation Pipe WRAS Certificated – CHUANGRONG
China Wholesale Hdpe Pipe Manufacture Factory – OEM ODM Supported HDPE Irrigation Pipe WRAS Certificated – CHUANGRONG Detail:
Detail Information
| Product Name: | High Density Polyethylene HDPE Pipe Coils For Irrigation | Application: | Water Supply Or Irrigation |
|---|---|---|---|
| Standard: | ISO4427/EN12201 | Material: | PE, 100% Virgin Material PE100 |
| Specification: | DN63mm PN16 SDR11 | Length Per Coil: | 50m-300m |
Product Description
. Raw material:PE100 or PE80
2. Color:black with blue stripe or as required
3. Specification:please see the following table
4: Connecting way:socket fusion, butt fusion or electrofusion
5. Advantage:ODM.OEM
6. Pressure:PN16 (SDR11),PN12.5 (SDR13.6), PN10 (SDR17.6),PN8 (SDR21),PN6(SDR26)
7. Product feature:light weight,high strength, low resistance,corrosion resistance,easy installation,long lifespan,low cost
Packing Method:Nude Roll pipe, Small rolls suit into large rolls.
Pipe dia.20mm-63mm can be in coils with 50m/100/200m length; 63<Pipe dia<=110with 50m length.
Production Lead Time:Depending on the order quantity.
Normally about 5 days for 20ft container, 10 days for a 40ft container.
Supply Ability:100000 Ton/Year
Payment Method:T/T, L/C at sight,West Union
Trading Method:EXW, FOB, CFR, CIF,DDU
Specification
| HDPE Pipe coil For Water Supply Or Irrigation | ||||||||||
| Nominal outside diameter Dn(mm) | PE80 Pipe | PE100 Pipe | ||||||||
| Nominal wall thickness en(mm) | ||||||||||
| PN4 | PN6 | PN8 | PN10 | PN12.5 | PN6 | PN8 | PN10 | PN12.5 | PN16 | |
| SDR33 | SDR21 | SDR17 | SDR13.6 | SDR11 | SDR26 | SDR21 | SDR17 | SDR13.6 | SDR11 | |
| 20 | - | - | - | - | 2.3 | - | - | - | - | 2.3 |
| 25 | - | - | - | 2.3 | 2.3 | - | - | - | 2.3 | 2.3 |
| 32 | - | - | 2.3 | 2.4 | 3.0 | - | - | 2.3 | 2.4 | 3.0 |
| 40 | - | 2.3 | 2.4 | 3.0 | 3.7 | - | 2.3 | 2.4 | 3.0 | 3.7 |
| 50 | 2.3 | 2.4 | 3.0 | 3.7 | 4.6 | 2.3 | 2.4 | 3.0 | 3.7 | 4.6 |
| 63 | 2.4 | 3.0 | 3.8 | 4.7 | 5.8 | 2.4 | 3.0 | 3.8 | 4.7 | 5.8 |
| 75 | 2.6 | 3.6 | 4.5 | 5.6 | 6.8 | 2.9 | 3.6 | 4.5 | 5.6 | 6.8 |
| 90 | 2.8 | 4.3 | 5.4 | 6.7 | 8.2 | 3.5 | 4.3 | 5.4 | 6.7 | 8.2 |
| 110 | 3.4 | 5.3 | 6.6 | 8.1 | 10.0 | 4.2 | 5.3 | 6.6 | 8.1 | 10.0 |

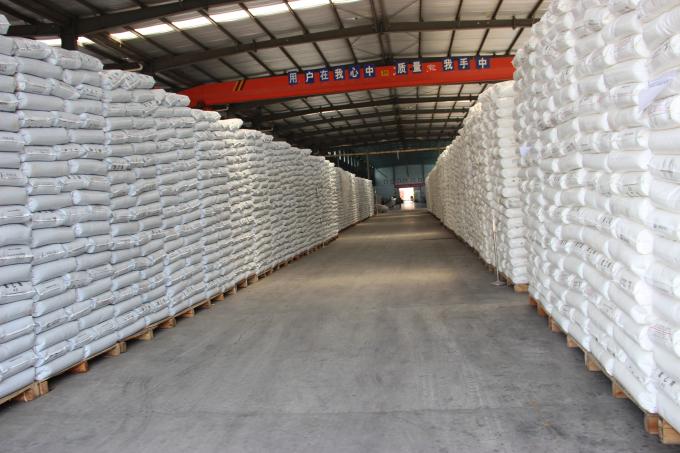

virgin raw material
Workshop
Certification
Product detail pictures:
Related Product Guide:
All we do is always associated with our tenet " Customer first, Trust first, devoting on the food packaging and environmental protection for China Wholesale Hdpe Pipe Manufacture Factory – OEM ODM Supported HDPE Irrigation Pipe WRAS Certificated – CHUANGRONG , The product will supply to all over the world, such as: Canada, Gambia, Qatar, As an experienced manufacturer we also accept customized order and we could make it the same as your picture or sample specification. The main goal of our company is to live a satisfactory memory to all the customers, and establish a long term business relationship with buyers and users all over the world.
By Giselle from America - 2018.06.26 19:27
The sales manager is very patient, we communicated about three days before we decided to cooperate, finally, we are very satisfied with this cooperation!
By Ida from Ukraine - 2018.06.19 10:42
