Customized PE EF Elbow Solutions

Industrial Demands & Status of Gas Distribution Networks

In modern urban infrastructure, gas distribution networks form the lifeblood of residential, commercial, and industrial energy supply. As the world transitions toward cleaner energy sources, the integrity and safety of these underground networks have become paramount. Historically, metallic piping systems like cast iron and carbon steel dominated gas networks. However, these materials are highly susceptible to electrochemical corrosion, ground movement stresses, and joint degradation over time.

To address these vulnerabilities, utility companies worldwide have rapidly adopted High-Density Polyethylene (HDPE) systems. High-quality PE pipes and fittings offer unparalleled flexibility, chemical resistance, and ease of installation. Within this context, the demand for customized PE Electrofusion (EF) Elbows has surged. Standard off-the-shelf elbows often fail to accommodate complex urban underground layouts, where retrofitting around existing water, power, and telecommunication lines requires precise, non-standard bend angles and wall thicknesses.

Market Drivers and the Shift to Smart Infrastructure

The global natural gas distribution market is moving toward smart, monitored, and zero-emission networks. Governments are enforcing strict environmental policies to eliminate methane emissions, which are often caused by micro-leaks in aging pipeline joints. Customized PE EF Elbows, engineered from premium PE100 or PE100-RC (Resistance to Crack) resins, provide a fully homogenous fused joint that is chemically identical to the pipe itself.

Furthermore, the rise of hydrogen blending—introducing hydrogen into existing natural gas grids—demands superior polymer structures. Hydrogen molecules are much smaller than methane molecules, making gas permeation and joint integrity a critical engineering focus. Customized PE EF Elbows designed specifically for hydrogen-ready gas networks feature optimized polymer densities and specialized inner liners to mitigate gas migration and ensure long-term structural stability over a 50-year service life.

1. Stress Mitigation at Critical Pipe Bends

In any gas distribution network, elbows are the points of highest stress. Changes in flow direction generate dynamic thrust forces, while external factors such as soil settlement, traffic loads, and thermal expansion exert continuous bending moments on the joints. Standard 90-degree or 45-degree elbows often force installers to bend the adjacent HDPE pipes slightly to fit tight trenches, introducing residual stress into the system.

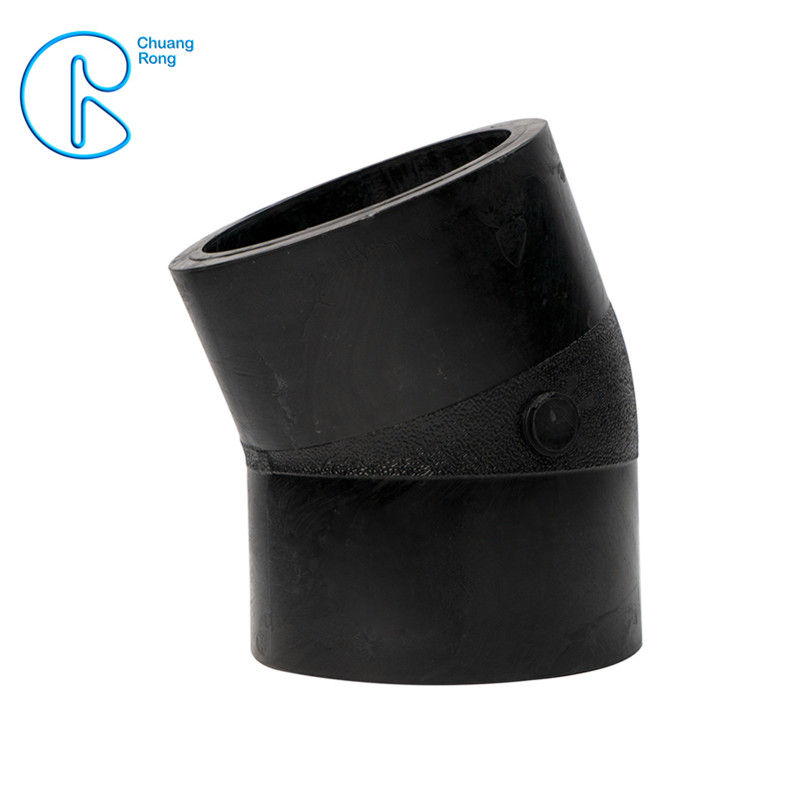

By using customized PE EF Elbows, engineers can specify precise angles (e.g., 11.5°, 22.5°, or 30°) that align perfectly with the natural contour of the trench. This eliminates installation-induced stress and prevents Slow Crack Growth (SCG), which is the leading cause of plastic pipe failure over multi-decadal lifespans.

2. Optimized Electrofusion Wire Placement

The quality of an electrofusion joint depends heavily on uniform heat distribution during the welding process. Customized PE EF Elbows feature precision-wound heating coils embedded close to the inner surface of the fitting. During customization, the pitch and depth of these coils are engineered based on the specific SDR (Standard Dimension Ratio) of the target pipe.

This prevents localized overheating or under-welding, ensuring a consistent melt zone. In gas distribution, where joint failure is not an option, this level of custom thermal engineering guarantees that the fusion zone is stronger than the pipe body itself.

3. Trenchless Installation & PE100-RC Compatibility

Modern urban centers increasingly rely on trenchless technologies like Horizontal Directional Drilling (HDD) or pipe bursting to lay gas networks without disrupting surface activities. These methods expose the external surface of the pipe and fittings to severe scratching and point loading from rocks and debris.

Customizing elbows with PE100-RC (Resistance to Crack) material provides outstanding resistance to point loads and surface scratches. When integrated with electrofusion zones, these customized fittings ensure that the joint remains fully functional even in highly abrasive underground environments.

4. Smart Tracking & Quality Control Integration

Traceability is a fundamental requirement for modern gas utility operators. High-end customized PE EF Elbows come equipped with integrated barcodes and RFID chips that comply with ISO 12176-3/4 standards.

During installation, the operator scans the barcode using a smart electrofusion machine, which automatically sets the correct welding parameters based on ambient temperature, fitting size, and material type. This digital footprint ensures that every single joint in the gas network is logged, tracked, and verifiable for future maintenance and safety audits.
