CHUANGRONG is a share industry and trade integrated company, established in 2005. Which focused on the production full range of quality HDPE Pipes & Fittings (from20-1600mm), and sale of PP Compression Fittings, Plastic Welding Machines, Pipe Tools and Pipe Repair Clamp etc.

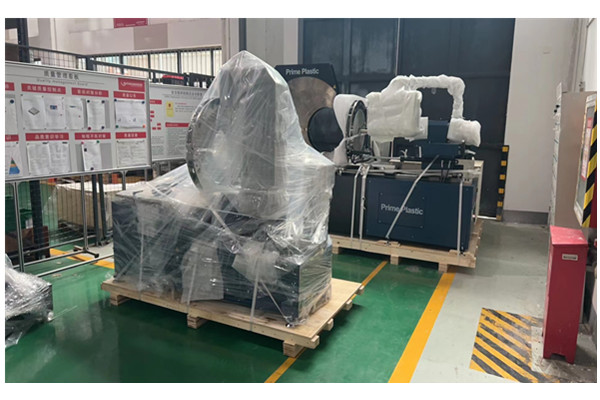

CHUANGRONG's mission is providing different customers with perfect one-stop solution for plastic pipe system. It can supply professionally designed, customized service for your project. Recently, we customized HDPE Fittings saddle fusion machine and band saw for Middle East customers.

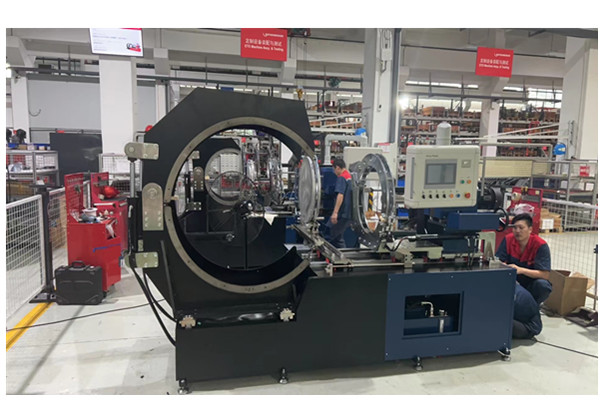

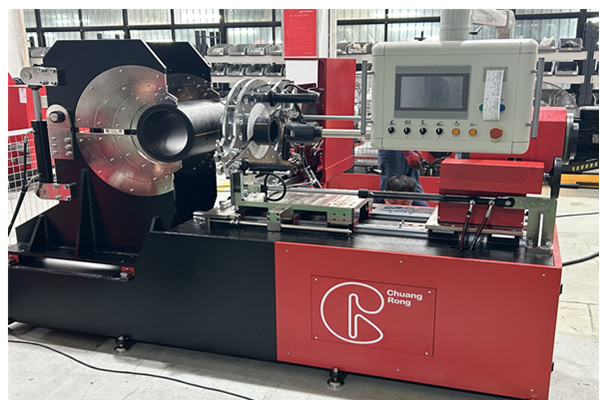

HDPE Fitings Saddle Fusion Machine
Applicable to manufacture PE reducing tee fittings in the workshop,the advanced hydraulic system guides the user to complete the welding process step by step and automatically record all welding parameters. Welding can be carried out according to the preset DVS-2207 and other international standards and guidelines,or the welding standards can be customized;Data are transferred via USB interface.
● Full-automatic welding process control:main pipe preheating, beading up, soaking, changeover, pressurization and cooling.
● Multiple automatic monitoring and early warning functions,which would automatically shut down the machine and give alarms in case of non-conformance, ensure reliable and stable welding quality.
● The pressure control system incorporates electromagnetic proportional valve, pressure transmitter and pressure acquisition and control module to realize closed-loop pressure system control.The pressure control curve can be set automatically for automatic control of pressure at each stage of welding process.
● Automatic compensation system for interface force at welded junction, which automatically compensates the welding pressure according to the leakage ratio of welding pressure during cooling,ensures that the interface force of welded junction is within the standard control range.
● The automatic collection and storage system of welding records can record, in real time,the standard value and measured value of welding parameters of each welded junction,and automatically assess the welding result.The storage capacity of the machine is more than 100,000 records.
| Model | R315S | R630S | R1200S |
| Application | Reducing Tee | Reducing Tee | Reducing Tee |
| Main pipe Dia(mm) | 90, 110, 125,140,160,180,200,225,250,280,315 | 315, 355, 400,450,500,560,630 | 560, 630, 710, 800,900,1000, 1200 |
| Branch pipe Dia(mm) | 32,40,50,63,75,90,110,140 | 110,160,200,225, 250,315 | 160, 200 ,225 ,250, 315 , 400, 450,560 |
| Heating Plate Power | 270℃ | 270℃ | 270℃ |
| Pressure adjustable ranges | 一 | 0-6Mpa | 0-6Mpa |
| Working Voltage | 380V±10%50Hz | 380V±10%50Hz | 380V±10%50Hz |
| Heating Plate max.Temp | 1.2KW | 15KW | 20KW |
| Hydraulic Unit Power | 0.75KW | 1.5KW | 1.5KW |
| Drill Motor Power | 0.75KW | 1.5KW | 3KW |
| Total power | 2.7KW | 18KW | 24.5KW |
| Weight | 350KG | 2380KG | 2650KG |

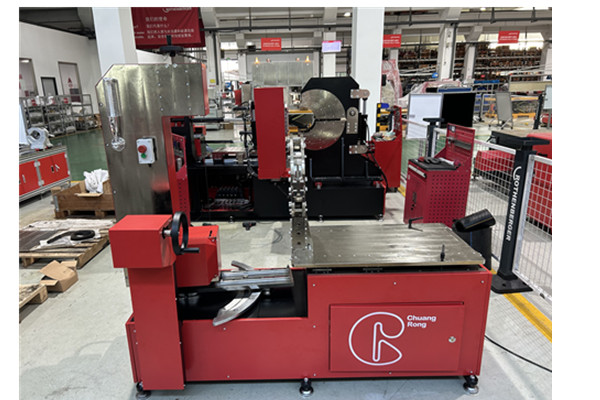

HDPE Saddle FIttings Radius Band Saw
● It is applicable to manufacture of PE reducing tee fittings in the workshop.The end face of the pipe shall be cut into a curved surface consistent with the outer diameter of the main pipe
● Integrated structure design,good cutting effect,direct welding without secondary processing
● Manual rotary cutting control,easy to operate
● Special custom-made saw blade for arc cutting of thick-walled polyethylene pipes
● Precise marks and scale set on swivel support plate for easy selection of desired cutting arc
Technical Parameters
| Model | R315A/R630A |
| Max.cutting diameter 315mm/630mm | |
| Max.cutting radian | R315/R600 |
| Line cutting speed | 0-250m/minute |
| Cutting feed speed | Manual control |
| Working voltage | 380VAC 3P+N+PE 50Hz |
| Total power | 2.2KW |
| Total weight 1140KG/1150KG | |
If you need more details, please contact us +86-28-84319855, chuangrong@cdchuangrong.com, www.cdchuangrong.com
Post time: Oct-17-2025
