Hot sale High Quality Customized Large Size HDPE 100 Pipe HDPE Gas Pipe

Short Description:

1. Name:  EF  45 Degree Elbow

2. Size: dn25-630mm

3. PE100 Water  PN16 or Gas 10 Bar

4.  ISO4427 , ISO4437 / EN12201, EN1555


Product Detail

Product Tags

Our business aims to operating faithfully, serving to all of our buyers , and working in new technology and new machine continuously for Hot sale High Quality Customized Large Size HDPE 100 Pipe HDPE Gas Pipe, We always regard the technology and consumers as the uppermost. We normally do the job hard to create excellent values for our prospects and present our consumers greater products and solutions & companies.
Our business aims to operating faithfully, serving to all of our buyers , and working in new technology and new machine continuously for China HDPE Pipe Sizes and HDPE Pipe Price List Australia price, “Make the women more attractive “is our sales philosophy. “Being customers’ trusted and preferred brand supplier” is the goal of our company. We have been strict with every part of our work. We sincerely welcome friends to negotiate business and start cooperation. We hope to join hands with friends in different industries to create a brilliant future.

Detail Information

Product Name: 110mm 45 Degree Elbow Electrofusion HDPE Fittings For Water Supply PN16 SDR11 PE100 Material: PE100 Virgin Raw Material
Standard: EN 12201-3:2011,EN 1555-3:2010 Application: Gas,Water,Oil Etc
Specification: OD50 63 75 90 110 160 200 250 315 400 Port: China Main Port

Product Description

110mm 45 degree Elbow Electrofusion HDPE Fittings for Water supply PN16 SDR11 PE100

Production Description of Electrofusion HDPE 45Degree Elbow

-Electrofusion HDPE fittings are welded by electrofusion machine to connect HDPE pipes together: After electrofusion welding machine plug in electricity and turn on, The copper wire buried inserted in electric fuse HDPE fittings are heated and make HDPE melt, Which joint HDPE pipe and fittings well.

Pin

The pin provides a totally automatic methood for ensuring the correct welding parameters are used. Within each pin is a resiter. When hte electrofusion box is connected to the fitting, the pin enables it to automatically identify the correct fusion time required to make the joint. All the operator has to do is press go.

Indicators

The pressure created by the expanding molten plastic in the jointing area inside the fitting during the electrofusion process will force out the indicator lugs. This is a visible sign that the neccessary jointing pressure has been achieved.

Moulded -in welding parameters

Manual welding paarameters are moulded into the body all fitttings. Information provided includes fitings size, materail(PE80 OR PE110),applicable pipe SDRs, welding parameters, and pressure ratings for gas and water applicationgs.

Barcode

Quality control is central the success of fittings. The barcode provides full traceability right down to the polymer batch, the raw material from which the fititngs are manufactured for each individual fittings. The barcode also carries the welding parameters for us withe electrofusion boxes equipped with a barcode scanner. The new QR code on alll fittings illustrate full traceability on each individual fitting that reaches the consumer.

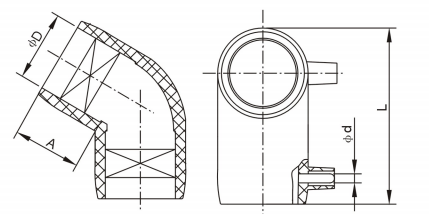

Specification

20191118130522_96137

specifications

φDL

mmA

mmφdmm50×45°130504.763×45°180634.790×45°230834.7110×45°270904.7160×45°280854.7200×45°3301004.7250×45°4201154.7315×45°4701304.7400×45°5801404.7450×45°   500×45°   560×45°

Test

TEST ITEMS RESULT CONCLUSION
APPEARANCE THE INNER AND OUTER SURFACES OF THE FITTINGS SHOULD BE CLEAN,SMOOTH AND WITHOUT AIR HOLES,SHRINK PIT,OBVIOUS SCRATCHES AND OTHER SURFACE DEFECTS.PIPE FITTINGS SHOULD BE COMPLETE WITHOUT DEFECTS,GATES AND OVERFLOW SHOULD BE REMOVE QUALIFIED
SOCKET FITTING OR ELECTRO FUSION SOCKET END AVERAGE OD MM / QUALIFIED
  WALL THICKNESS MM / QUALIFIED
  OUT OF ROUNDNESS MM / QUALIFIED
  TUBULAR LENGTH MM / QUALIFIED
ELECTRO FUSION FITTING BELL END AVERAGE ID MM MORE THAN 160 QUALIFIED
FUSION AREA LENGTH MM MORE THAN 20 QUALIFIED
DEPTH OF SOCKET MM 68-98 QUALIFIED
OUT OF ROUNDNESS MM LESS THAN 2.4 QUALIFIED
ELECTRICAL PERFORMANCE OF ELECTRO FUSION FITTING 23℃

MAX:nominal x (1+10%)+0.1Ω

MIN: nominal x (1-10%)QUALIFIEDPYYSICAL AND MECHANICAL PROPERTIESOXIDATION INDUCTION TIME (200℃) MINMORE THAN 20QUALIFIED HYDROSTATIC STRENGTH80℃/,RING STRESS 5.4Mpa,

DAMAGE TIME≥165h,NO BREAK,NO LEAK INSPECTION CONCLUSIONTHE SAMPLING PIPE FITTING IS INSPECTED ACCORDING TO THE REQUIREMENT OF CHINA STANDARD GB/T 15558.2-2005 “PART 2” PIPE OF BURIED POLYETHYLENE (PE) PIPELINE SYSTEM FOR PIPES OF GAS:”PIPE FITTING”.THE RESULTS ARE COMPLY WITH THE STANDARD’S REQUIREMENT

(GB/T 15558.2-2005 “PART 2” IS SAME AS EN1555-3:2010 )

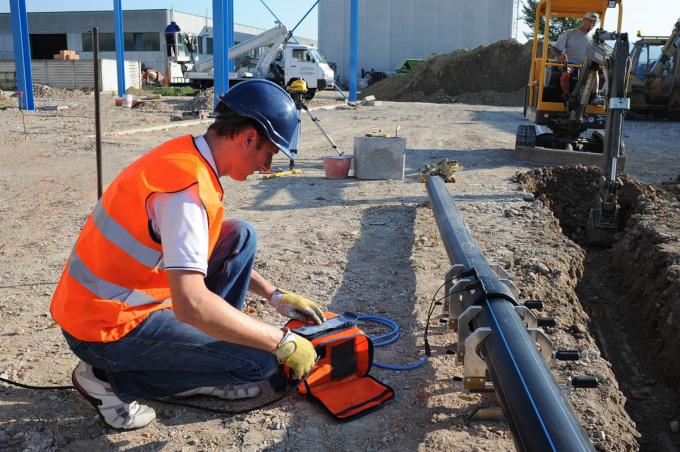

Application

1.Municipal water supply, gas supply and agriculture etc.

2.Commercial & Residential water supply

3.Industrial liquids transportation

4.Sewage treatment

5. Food and chemical industry

6. Replacement of cement pipes and steel pipes

7. Argillaceous silt, mud transportation9. Garden green pipe networks

20191128180520_37676

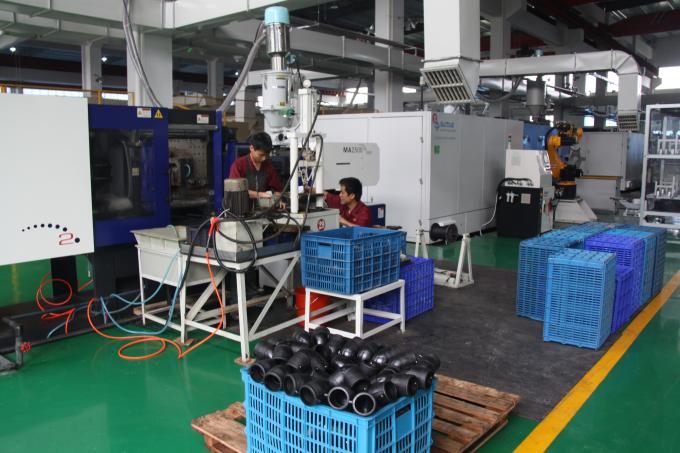

Workshop

20191117162149_20642

Certifications

We can supply ISO9001-2008, BV ,SGS, CE etc certification. All kinds of products are regularly conducted pressure-tight blasting test,longitudinal shrinkage rate test, quick stress crack resistance test, tensile test and melt index test, so as to ensure the quality of products totally reach the relevant standards from raw materials to finished products.
