China Wholesale Pp Reducing Tee Suppliers – 16 Bar PP Compression Fitting , Tube Reducing Compression Tee For Plastic Pipe Connect – CHUANGRONG
China Wholesale Pp Reducing Tee Suppliers – 16 Bar PP Compression Fitting , Tube Reducing Compression Tee For Plastic Pipe Connect – CHUANGRONG Detail:
Detail Information
| Product Name: | PP Reducing Tee | Shape: | Reducing |
|---|---|---|---|
| Size: | 20-110mm | Standard: | DIN 8076-3,ISO 14236, ISO13460 |
| Package: | Carton Box+plastic Bag | Port: | China Main Port |
Product Description
Tube Reducing Compression Tee 16 Bar For Plastic Pipe Connect
PP compression fittings have been designed for kinds of fluids transport under high pressures, irrigation and other applications. They are fully compatible with all PELD, PEHD, PE40, PE80 and PE100 pipes. The performance standard of PP fittings about working pressure can match ISO14236 or DIN8076, the standard of threads can match ISO7, DIN EN 10226, ASME B1.20, or BS 21. The maximum working pressure of PP compression fittings, which diameter is from 20 to 63, can match PN16, and PN10 can be matched for the diameter, which is from 75 to 110, at 20 degree centigrade.
The clamp saddles have been designed for side outputs on PE and they are available in the large range of sizes, which can be found in the catalogue. The clamp saddles are fit for conveying food fluids because its materials are conform to the domestic and international standards.
Specification
| D | DN | PN | CTN |
| 25* 20*25 | 20 | 16 | 60 |
| 32*20*32 | 25 | 16 | 40 |
| 32*25*32 | 25 | 16 | 40 |
| 40*25*40 | 32 | 16 | 20 |
| 40*32*40 | 32 | 16 | 20 |
| 50*25*50 | 40 | 16 | 12 |
| 50*32*50 | 40 | 16 | 12 |
| 50*40*50 | 40 | 16 | 12 |
| 63*32*63 | 50 | 16 | 7 |
| 63*40*63 | 50 | 16 | 7 |
| 63*50*63 | 50 | 16 | 7 |
| 75*50*75 | 65 | 10 | 6 |
| 75*63*75 | 65 | 10 | 6 |
| 90*63*90 | 80 | 10 | 4 |
| 90*75*90 | 80 | 10 | 4 |
| 110*90*110 | 100 | 10 | 3 |
Application
Piping networks for water supply of public works
Piping networks for underground water supply system of living areas or factories
Piping networks for water treatment systems
Piping networks for irrigation of gardening or farming
OUR ADVANTAGE
1.high quality&industrial leading price
2.quick order processing & on-time delivery
3.extremely long usage life for at least 5 years
4.innovative & customer-oriented
5.rich experience in exportation
6.best quality & best service with competitive price
7.easy and fast installation, making cost minimized
8.healthy and non-toxic, free of stain,recycable, enviromentally friendly
9.Modern technical equipment in combination with proficient manual work.
10.Lightweight, convenient to transport and handle, good for labor-saving.
Certification
1. We are a manufacturer of plastic tubes and fittings. We accept OEM business.
2. We supply stop valve,pipe end cap,equal/reduceing tee,cold hot water ball valve,union ball valve,threaded elbow(plastic or with metal) and so on.
3. We also supply the connectors Accordingly.
4. We can offer you very competitive prices for some pipes.
5. We welcome you to visit our web and our factory. Your visiting will be highly appreciated.
6. It is my pleasure to help you.

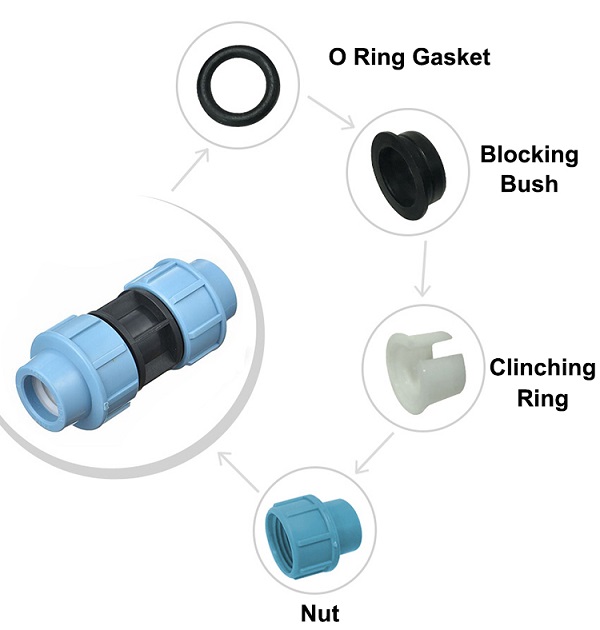

Product detail pictures:
